Toyota Camry (JPP)
1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States
Discontinued model
Data version 1992-05

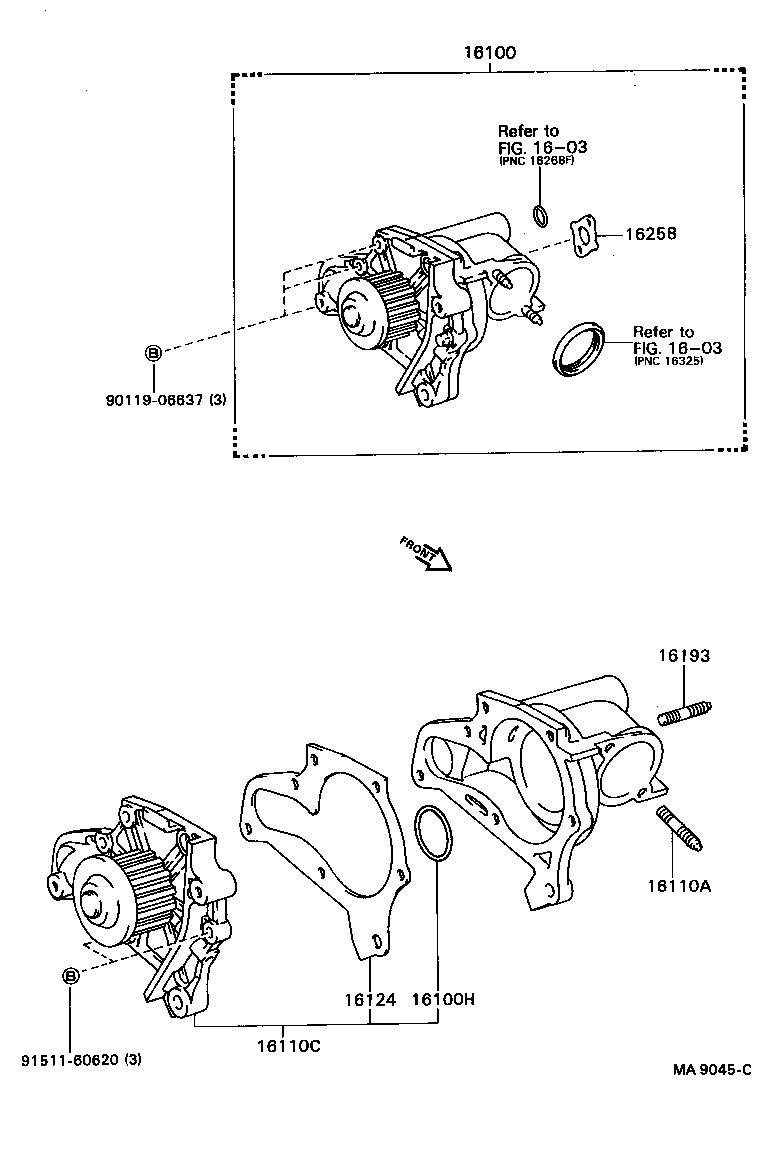

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-69206 |
Pump Assy, Engine Water
1988-08 → 1991-05
ended
|
2VZFE VZV21 | — | |
| 16100-69305 |
Pump Assy, Engine Water
1991-05 → 1991-06
ended
|
2VZFE VZV21 | — | |
| 16100-79075 |
Pump Assy, Engine Water
1988-08 → 1991-03
ended
|
3SFE SV2# | — | |
| 16100-79185 |
Pump Assy, Engine Water
1991-03 → 1991-06
ended
|
3SFE SV2# | — | |
| 16100H — Ring, O(FOR WATER PUMP) | ||||
| 90301-37005 |
Ring, O(FOR WATER PUMP)
1988-08 → 1991-06
ended
|
3SFE SV2# | — | |
| 16110A — Bolt, Stud(FOR WATER OUTLET SETTING) | ||||
| 16193-63010 |
Bolt, Stud(FOR WATER OUTLET SETTING)
1988-08 → 1991-06
ended
|
3SFE SV2# | — | |
| 16110C — Pump Assy, Water, W/O Cover | ||||
| 16110-79025 |
Pump Assy, Water, W/O Cover
1988-08 → 1991-06
ended
|
3SFE SV2# | — | |
| 16124 — Gasket, Water Pump Cover | ||||
| 16124-74010 |
Gasket, Water Pump Cover
1988-08 → 1988-09
ended
|
3SFE SV2# | — | |
| 16124-74020 |
Gasket, Water Pump Cover
1988-09 → 1991-06
ended
|
3SFE SV2# | — | |
| 16193 — Bolt, Stud(FOR WATER PUMP COVER) | ||||
| 90029-01500 |
Bolt, Stud(FOR WATER PUMP COVER)
1988-08 → 1991-06
ended
|
3SFE SV2# | — | |
| 16258 — Gasket(FOR HEATER RETURN) | ||||
| 16258-15011 |
Gasket(FOR HEATER RETURN)
1988-08 → 1989-07
ended
|
3SFE SV2# | — | |
| 16258-74020 |
Gasket(FOR HEATER RETURN)
1989-07 → 1991-06
ended
|
3SFE SV2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
