Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

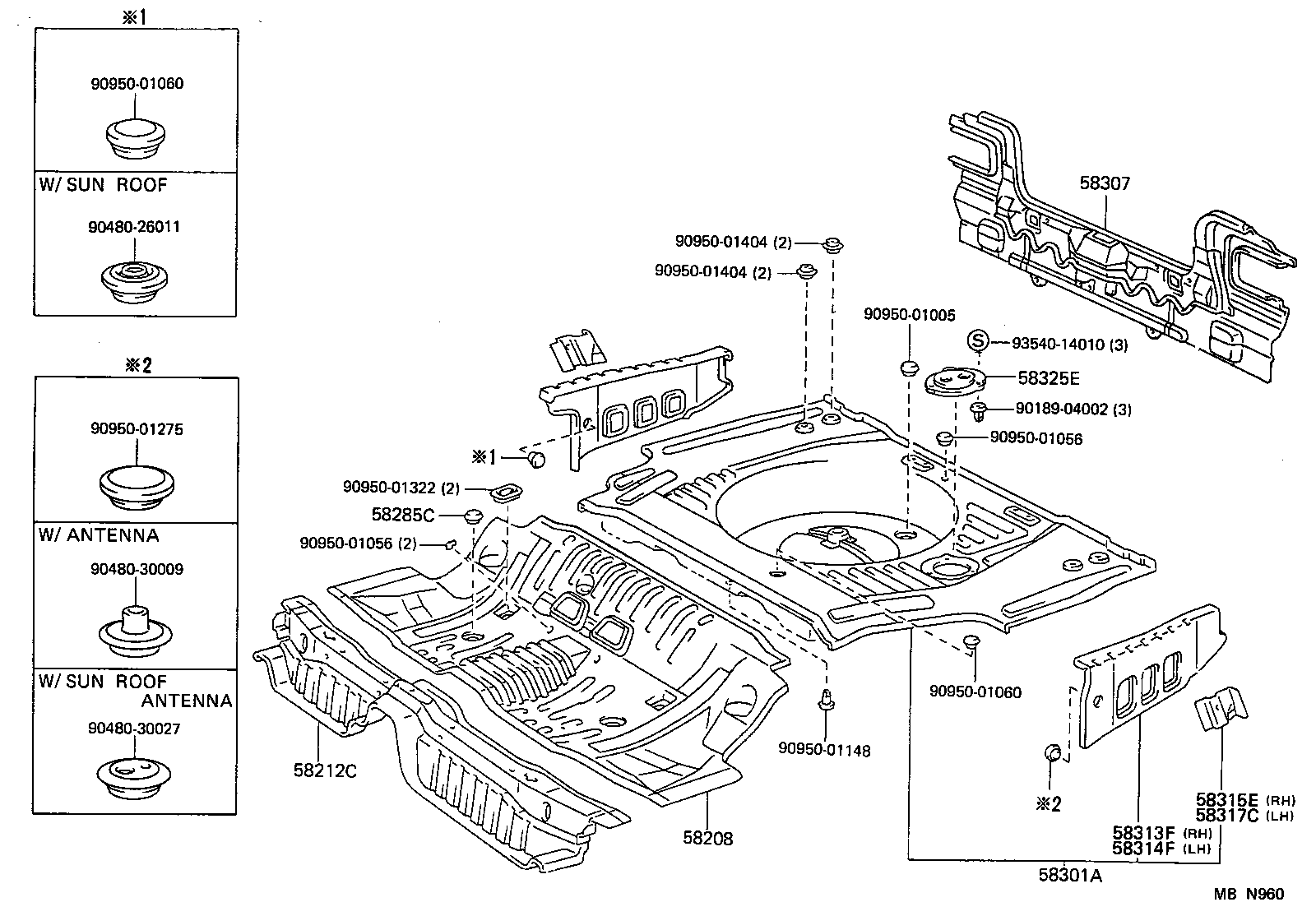

Exploded illustration MBN960 9095001060 — not listed in this catalogue 58307 — PANEL SUB-ASSY, BODY LOWER BACK (5 parts) 9048026011 — not listed in this catalogue 9095001404 — not listed in this catalogue 9095001404 — not listed in this catalogue 9095001005 — not listed in this catalogue 9354014010 — not listed in this catalogue 58325E — COVER, REAR FLOOR SERVICE HOLE (2 parts) 9018904002 — not listed in this catalogue 9095001275 — not listed in this catalogue 9095001056 — not listed in this catalogue 9095001322 — not listed in this catalogue 58285C — COVER, REAR FLOOR HOLE (1 parts) 9095001056 — not listed in this catalogue 9048030009 — not listed in this catalogue 9095001060 — not listed in this catalogue 9048030027 — not listed in this catalogue 9095001148 — not listed in this catalogue 58212C — PAN, CENTER FLOOR, FRONT (1 parts) 58315E — EXTENSION REAR FLOOR SIDE PANEL, FRONT RH (2 parts) 58317C — EXTENSION, REAR FLOOR SIDE PANEL, REAR LH (2 parts) 58313F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH (1 parts) 58208 — PAN, CENTER FLOOR (8 parts) 58314F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH (1 parts) 58301A — PANEL SUB-ASSY, REAR FLOOR (3 parts)
MBN960 · 10 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
58208 — Pan, Center Floor
58201-32030 note Pan, Center Floor
1989-08 → 1991-06 ended
SV25 DX —
58201-32030 Pan, Center Floor
1988-08 → 1991-06 ended
SV25 LE —
58201-32041 Pan, Center Floor
1988-08 → 1991-06 ended
SV21,VZV21 SED LE —
58201-32041 note Pan, Center Floor
1989-08 → 1991-06 ended
SV21,VZV21 SED DX —
58201-32051 Pan, Center Floor
1988-08 → 1991-06 ended
SV21,VZV21 SED (DX,STD) —
58201-32061 note Pan, Center Floor
1988-08 → 1991-06 ended
VZV21 SED LE —
58201-32071 Pan, Center Floor
1988-08 → 1991-06 ended
SV21,VZV21 WG —
58201-32090 Pan, Center Floor
1988-08 → 1991-06 ended
SV25 DX —
58212C — Pan, Center Floor, Front
58212-32010 Pan, Center Floor, Front
1988-08 → 1991-06 ended
SV25 —
58285C — Cover, Rear Floor Hole
58285-20030 Cover, Rear Floor Hole
1988-08 → 1991-06 ended
SV25 —
58301A — Panel Sub-assy, Rear Floor
58301-32150 Panel Sub-assy, Rear Floor
1988-08 → 1991-06 ended
SV21,VZV21 SED —
58301-32170 Panel Sub-assy, Rear Floor
1988-08 → 1991-06 ended
SV25 —
58301-32900 Panel Sub-assy, Rear Floor
1988-08 → 1991-06 ended
SV21,VZV21 WG —
58307 — Panel Sub-assy, Body Lower Back
58307-32110 Panel Sub-assy, Body Lower Back
1988-08 → 1990-02 ended
SV21,VZV21 SED —
58307-32110 Panel Sub-assy, Body Lower Back
1990-02 → 1991-06 ended
SV21 STD —
58307-32180 Panel Sub-assy, Body Lower Back
1988-08 → 1990-02 ended
SV25 —
58307-32181 Panel Sub-assy, Body Lower Back
1990-02 → 1991-06 ended
SV25 —
58307-32280 Panel Sub-assy, Body Lower Back
1990-02 → 1991-06 ended
SV21,VZV21 SED (DX,LE) —
58313F — Extension, Rear Floor Pan TO Quarter Panel, RH
58313-32070 Extension, Rear Floor Pan TO Quarter Panel, RH
1988-08 → 1991-06 ended
SV25 —
58314F — Extension, Rear Floor Pan TO Quarter Panel, LH
58314-32070 Extension, Rear Floor Pan TO Quarter Panel, LH
1988-08 → 1991-06 ended
SV25 —
58315E — Extension Rear Floor Side Panel, Front RH
58315-32020 Extension Rear Floor Side Panel, Front RH
1988-08 → 1991-06 ended
SV21,VZV21 SED —
58315-32040 Extension Rear Floor Side Panel, Front RH
1988-08 → 1991-06 ended
SV25 —
58317C — Extension, Rear Floor Side Panel, Rear LH
58317-32020 Extension, Rear Floor Side Panel, Rear LH
1988-08 → 1991-06 ended
SV21,VZV21 SED —
58317-32030 Extension, Rear Floor Side Panel, Rear LH
1988-08 → 1991-06 ended
SV25 —
58325E — Cover, Rear Floor Service Hole
58325-20040 Cover, Rear Floor Service Hole
1988-08 → 1991-06 ended
SV25 —
58325-32020 Cover, Rear Floor Service Hole
1988-08 → 1991-06 ended
SV21,VZV21 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
