Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

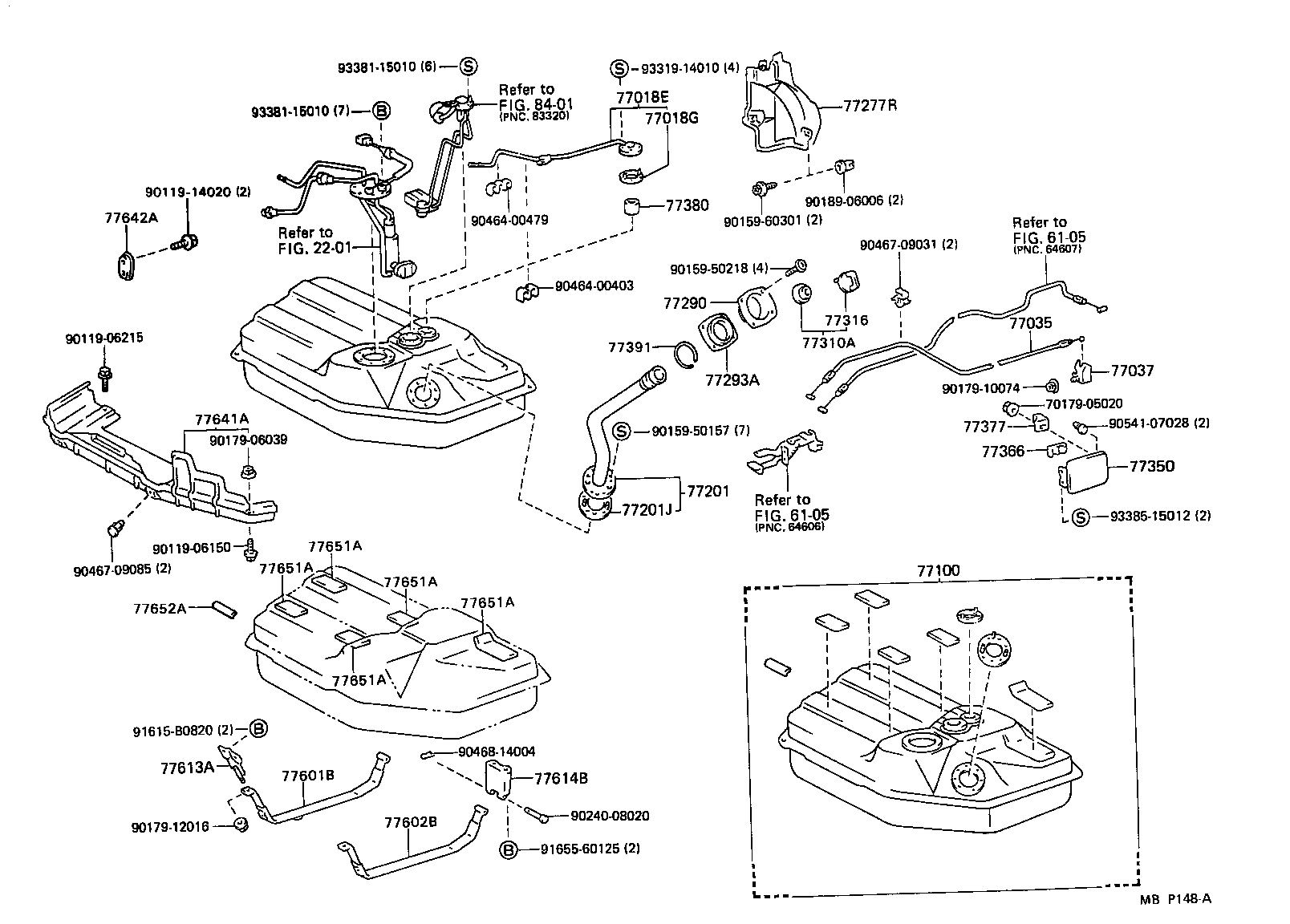

Exploded illustration MBP148A 9331914010 — not listed in this catalogue 9338115010 — not listed in this catalogue 77018E — TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT (1 parts) 8401 — not listed in this catalogue 77277R — PROTECTOR, FUEL TANK FILLER PIPE (2 parts) 9338115010 — not listed in this catalogue 77018G — GASKET, FUEL TANK EVAP/VENT TUBE (1 parts) 9011914020 — not listed in this catalogue 9018906006 — not listed in this catalogue 77380 — VALVE ASSY, FUEL CUT OFF (2 parts) 77642A — PROTECTOR, FUEL TANK, NO.2 (1 parts) 9015960301 — not listed in this catalogue 9046400479 — not listed in this catalogue 6105 — not listed in this catalogue 9046709031 — not listed in this catalogue 2201 — not listed in this catalogue 9015950218 — not listed in this catalogue 9046400403 — not listed in this catalogue 77290 — SHIELD ASSY, FUEL TANK FILLER PIPE (1 parts) 77316 — GASKET, FUEL TANK CAP (2 parts) 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (1 parts) 9011906215 — not listed in this catalogue 77310A — CAP ASSY, FUEL TANK (2 parts) 77391 — RING, FUEL INLET BOX (1 parts) 77037 — LOCK SUB-ASSY, FUEL FILLER OPENING LID (1 parts) 77293A — SHIELD, FUEL TANK FILLER PIPE, NO.3 (1 parts) 9017910074 — not listed in this catalogue 7017905020 — not listed in this catalogue 77641A — PROTECTOR, FUEL TANK, NO.1 (2 parts) 9054107028 — not listed in this catalogue 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (1 parts) 9015950157 — not listed in this catalogue 9017906039 — not listed in this catalogue 77366 — SPRING, FUEL FILLER OPENING LID HINGE (1 parts) 77350 — LID ASSY, FUEL FILLER OPENING (1 parts) 77201 — PIPE SUB-ASSY, FUEL TANK INLET (2 parts) 77201J — GASKET(FOR FUEL TANK INLET PIPE) (1 parts) 6105 — not listed in this catalogue 9338515012 — not listed in this catalogue 77651A — CUSHION, FUEL TANK, NO.1 (2 parts) 9011906150 — not listed in this catalogue 9046709085 — not listed in this catalogue 77651A — CUSHION, FUEL TANK, NO.1 (2 parts) 77100 — TANK ASSY, FUEL (2 parts) 77651A — CUSHION, FUEL TANK, NO.1 (2 parts) 77651A — CUSHION, FUEL TANK, NO.1 (2 parts) 77652A — CUSHION, FUEL TANK, NO.2 (2 parts) 77651A — CUSHION, FUEL TANK, NO.1 (2 parts) 91615B0820 — not listed in this catalogue 9046814004 — not listed in this catalogue 77613A — BRACKET, FUEL TANK BAND, NO.1 (1 parts) 77601B — BAND SUB-ASSY, FUEL TANK, NO.1 RH (2 parts) 77614B — BRACKET, FUEL TANK BAND, NO.2 (1 parts) 9024008020 — not listed in this catalogue 77602B — BAND SUB-ASSY, FUEL TANK, NO.1 LH (2 parts) 9017912016 — not listed in this catalogue 9165560125 — not listed in this catalogue
MBP148A · 29 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
77018E — Tube Sub-assy, Fuel Tank Evaporation Vent
77018-32050 Tube Sub-assy, Fuel Tank Evaporation Vent
1988-08 → 1991-06 ended
SV25 —
77018G — Gasket, Fuel Tank Evap/Vent Tube
77179-16010 Gasket, Fuel Tank Evap/Vent Tube
1988-08 → 1991-06 ended
SV25 —
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-32070 Cable Sub-assy, Fuel Lid Lock Control
1988-08 → 1991-06 ended
SV2#,VZV21 —
77037 — Lock Sub-assy, Fuel Filler Opening Lid
77037-12040 Lock Sub-assy, Fuel Filler Opening Lid
1988-08 → 1991-06 ended
SV2#,VZV21 —
77100 — Tank Assy, Fuel
77001-39275 Tank Assy, Fuel
1988-08 → 1991-06 ended
SV25 —
77001-39295 Tank Assy, Fuel
1988-08 → 1991-06 ended
SV21,VZV21 —
77201 — Pipe Sub-assy, Fuel Tank Inlet
77201-32100 Pipe Sub-assy, Fuel Tank Inlet
1988-08 → 1991-06 ended
SV25 —
77210-32052 Pipe Sub-assy, Fuel Tank Inlet
1988-08 → 1991-06 ended
SV21,VZV21 —
77201J — Gasket(FOR FUEL TANK INLET PIPE)
77169-14010 Gasket(FOR FUEL TANK INLET PIPE)
1988-08 → 1991-06 ended
SV25 —
77277R — Protector, Fuel Tank Filler Pipe
77277-32020 Protector, Fuel Tank Filler Pipe
1988-08 → 1991-06 ended
SV21,VZV21 —
77277-32030 Protector, Fuel Tank Filler Pipe
1988-08 → 1991-06 ended
SV25 —
77290 — Shield Assy, Fuel Tank Filler Pipe
77290-32021 Shield Assy, Fuel Tank Filler Pipe
1988-08 → 1991-06 ended
SV2#,VZV21 —
77293A — Shield, Fuel Tank Filler Pipe, NO.3
77293-20010 Shield, Fuel Tank Filler Pipe, NO.3
1988-08 → 1991-06 ended
SV2#,VZV21 —
77310A — Cap Assy, Fuel Tank
77310-12140 Cap Assy, Fuel Tank
1988-08 → 1989-07 ended
SV2#,VZV21 —
77310-12140 Cap Assy, Fuel Tank
1989-07 → 1991-06 ended
SV25,VZV21;SV21 SED USA;SV21 (DX,LE) +5 —
77316 — Gasket, Fuel Tank Cap
77316-16010 Gasket, Fuel Tank Cap
1988-08 → 1989-07 ended
SV2#,VZV21 —
77316-16010 Gasket, Fuel Tank Cap
1989-07 → 1991-06 ended
SV25,VZV21;SV21 SED USA;SV21 (DX,LE) +5 —
77350 — Lid Assy, Fuel Filler Opening
77350-32030 Lid Assy, Fuel Filler Opening
1988-08 → 1991-06 ended
SV2#,VZV21 —
77366 — Spring, Fuel Filler Opening Lid Hinge
77360-24010 Spring, Fuel Filler Opening Lid Hinge
1988-08 → 1991-06 ended
SV2#,VZV21 —
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-20030 Retainer, Fuel Filler Opening Lid Lock
1988-08 → 1991-06 ended
SV2#,VZV21 —
77380 — Valve Assy, Fuel Cut Off
77380-14020 Valve Assy, Fuel Cut Off
1988-08 → 1991-06 ended
SV25 —
77380-14020 Valve Assy, Fuel Cut Off
1988-08 → 1991-06 ended
SV21,VZV21 —
77391 — Ring, Fuel Inlet Box
77391-16011 Ring, Fuel Inlet Box
1988-08 → 1991-06 ended
SV2#,VZV21 —
77601B — Band Sub-assy, Fuel Tank, NO.1 RH
77601-32040 Band Sub-assy, Fuel Tank, NO.1 RH
1988-08 → 1991-06 ended
SV21,VZV21 —
77601-32060 Band Sub-assy, Fuel Tank, NO.1 RH
1988-08 → 1991-06 ended
SV25 —
77602B — Band Sub-assy, Fuel Tank, NO.1 LH
77602-32030 Band Sub-assy, Fuel Tank, NO.1 LH
1988-08 → 1991-06 ended
SV21,VZV21 —
77602-32050 Band Sub-assy, Fuel Tank, NO.1 LH
1988-08 → 1991-06 ended
SV25 —
77613A — Bracket, Fuel Tank Band, NO.1
77613-20080 Bracket, Fuel Tank Band, NO.1
1988-08 → 1991-06 ended
SV25 —
77614B — Bracket, Fuel Tank Band, NO.2
77614-32030 Bracket, Fuel Tank Band, NO.2
1988-08 → 1991-06 ended
SV25 —
77641A — Protector, Fuel Tank, NO.1
77641-32030 Protector, Fuel Tank, NO.1
1988-08 → 1991-06 ended
SV21,VZV21 —
77641-32040 Protector, Fuel Tank, NO.1
1988-08 → 1991-06 ended
SV25 —
77642A — Protector, Fuel Tank, NO.2
77642-20020 Protector, Fuel Tank, NO.2
1988-08 → 1991-06 ended
SV25 —
77651A — Cushion, Fuel Tank, NO.1
77651-32050 Cushion, Fuel Tank, NO.1
1988-08 → 1991-06 ended
SV21,VZV21 —
77651-32060 Cushion, Fuel Tank, NO.1
1988-08 → 1991-06 ended
SV25 —
77652A — Cushion, Fuel Tank, NO.2
77652-32030 Cushion, Fuel Tank, NO.2
1988-08 → 1991-06 ended
SV21,VZV21 —
77652-32050 Cushion, Fuel Tank, NO.2
1988-08 → 1991-06 ended
SV25 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
