Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

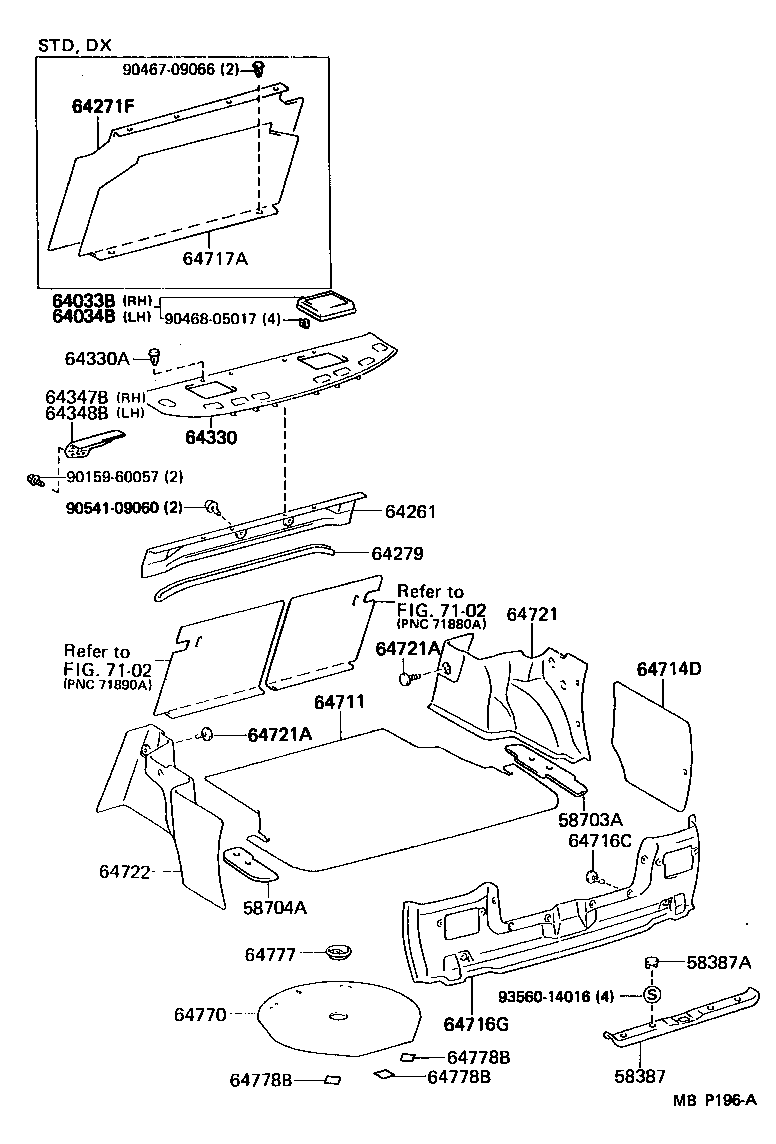

Exploded illustration MBP196A 9046709066 — not listed in this catalogue 64271F — TRIM, ROOM PARTITION (1 parts) 64717A — COVER, LUGGAGE COMPARTMENT TRIM, FRONT (6 parts) 64033B — GRILLE SUB-ASSY, REAR SPEAKER, RH (26 parts) 64034B — GRILLE SUB-ASSY, REAR SPEAKER, LH (26 parts) 9046805017 — not listed in this catalogue 64330A — CLIP(FOR PACKAGE TRAY TRIM PANEL) (6 parts) 64347B — BRACKET, PACKAGE TRAY REINFORCEMENT, RH (1 parts) 64348B — BRACKET, PACKAGE TRAY REINFORCEMENT, LH (1 parts) 64330 — PANEL ASSY, PACKAGE TRAY TRIM (26 parts) 9015960057 — not listed in this catalogue 9054109060 — not listed in this catalogue 64261 — GARNISH, ROOM PARTITION (8 parts) 64279 — PROTECTOR, ROOM PARTITION (12 parts) 7102 — not listed in this catalogue 64721 — COVER, LUGGAGE COMPARTMENT TRIM, INNER RH (8 parts) 64721A — CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) (10 parts) 64714D — COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH (4 parts) 7102 — not listed in this catalogue 64711 — MAT, LUGGAGE COMPARTMENT FLOOR (16 parts) 64721A — CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) (10 parts) 58703A — COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH (2 parts) 64716C — CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) (2 parts) 64722 — COVER, LUGGAGE COMPARTMENT TRIM, INNER LH (8 parts) 58704A — COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH (2 parts) 64777 — CLAMP, SPARE WHEEL COVER (1 parts) 58387A — PLUG, HOLE(FOR REAR FLOOR FINISH PLATE) (15 parts) 9356014016 — not listed in this catalogue 64770 — COVER ASSY, SPARE WHEEL (2 parts) 64716G — COVER, LUGGAGE COMPARTMENT TRIM, REAR (8 parts) 64778B — PROTECTOR, SPARE WHEEL (1 parts) 58387 — PLATE, REAR FLOOR FINISH (2 parts) 64778B — PROTECTOR, SPARE WHEEL (1 parts) 64778B — PROTECTOR, SPARE WHEEL (1 parts)
MBP196A · 27 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
194 parts on this figure
Part number Description Fitment Price
58387 — Plate, Rear Floor Finish
58387-32020-03 note Plate, Rear Floor Finish
1988-08 → 1991-06 ended
SV2#,VZV21 SED CND —
58387-32020-03 note Plate, Rear Floor Finish
1988-08 → 1991-06 ended
SV2#,VZV21 SED USA —
58387A — Plug, Hole(FOR REAR FLOOR FINISH PLATE)
90950-01503-12 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1988-08 → 1990-08 ended
SV2#,VZV21 SED USA —
90950-01503-12 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1990-08 → 1991-06 ended
SV2#,VZV21 SED (LE,STD) USA —
90950-01503-13 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
90950-01503-14 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1988-08 → 1990-08 ended
SV2#,VZV21 SED —
90950-01503-14 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1990-08 → 1991-06 ended
SV21 STD —
90950-01503-14 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1990-08 → 1991-06 ended
SV2#,VZV21 SED LE —
90950-01503-36 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1990-08 → 1991-06 ended
SV21 STD —
90950-01503-36 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1990-08 → 1991-06 ended
SV2#,VZV21 SED LE —
90950-01503-36 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1988-08 → 1990-08 ended
SV2#,VZV21 SED —
90950-01503-B0 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1988-08 → 1990-08 ended
SV2#,VZV21 SED CND —
90950-01503-B0 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1988-08 → 1990-08 ended
SV2#,VZV21 SED USA —
90950-01503-B0 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1990-08 → 1991-06 ended
SV25 DX —
90950-01503-B0 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1990-08 → 1991-06 ended
SV21,VZV21 SED DX —
90950-01503-B0 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1990-08 → 1991-06 ended
SV2#,VZV21 SED LE CND —
90950-01503-B0 note Plug, Hole(FOR REAR FLOOR FINISH PLATE)
1990-08 → 1991-06 ended
SV2#,VZV21 SED (LE,STD) USA —
58703A — Cover Sub-assy, Luggage Compartment Side, RH
58703-32010 Cover Sub-assy, Luggage Compartment Side, RH
1988-08 → 1991-06 ended
SV21,VZV21 SED —
58703-32020 Cover Sub-assy, Luggage Compartment Side, RH
1988-08 → 1991-06 ended
SV25 —
58704A — Cover Sub-assy, Luggage Compartment Side, LH
58704-32010 Cover Sub-assy, Luggage Compartment Side, LH
1988-08 → 1991-06 ended
SV21,VZV21 SED —
58704-32040 Cover Sub-assy, Luggage Compartment Side, LH
1988-08 → 1991-06 ended
SV25 —
64033B — Grille Sub-assy, Rear Speaker, RH
64033-03010-B1 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-03010-B1 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-03010-B1 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-03010-D1 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE USA —
64033-03010-D1 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-03010-E0 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-03010-E0 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-03010-E0 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-03010-J1 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-03010-J1 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-03010-J1 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-22040-02 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE USA —
64033-22040-02 note Grille Sub-assy, Rear Speaker, RH
1988-08 → 1990-10 ended
SV2#,VZV21 SED USA —
64033-22040-02 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-22040-03 note Grille Sub-assy, Rear Speaker, RH
1988-08 → 1990-10 ended
SV2#,VZV21 SED —
64033-22040-03 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-22040-03 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-22040-03 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-22040-04 note Grille Sub-assy, Rear Speaker, RH
1988-08 → 1990-10 ended
SV2#,VZV21 SED —
64033-22040-04 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-22040-04 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-22040-04 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-22040-06 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-22040-06 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-22040-06 note Grille Sub-assy, Rear Speaker, RH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-22040-06 note Grille Sub-assy, Rear Speaker, RH
1988-08 → 1990-10 ended
SV2#,VZV21 SED —
64034B — Grille Sub-assy, Rear Speaker, LH
64033-03010-B1 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-03010-B1 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-03010-B1 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-03010-D1 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE USA —
64033-03010-D1 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-03010-E0 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-03010-E0 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-03010-E0 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-03010-J1 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-03010-J1 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-03010-J1 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-22040-02 note Grille Sub-assy, Rear Speaker, LH
1988-08 → 1990-10 ended
SV2#,VZV21 SED USA —
64033-22040-02 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE USA —
64033-22040-02 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-22040-03 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-22040-03 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-22040-03 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-22040-03 note Grille Sub-assy, Rear Speaker, LH
1988-08 → 1990-10 ended
SV2#,VZV21 SED —
64033-22040-04 note Grille Sub-assy, Rear Speaker, LH
1988-08 → 1990-10 ended
SV2#,VZV21 SED —
64033-22040-04 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-22040-04 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-22040-04 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-22040-06 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED LE —
64033-22040-06 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2# SED DX CND —
64033-22040-06 note Grille Sub-assy, Rear Speaker, LH
1990-10 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64033-22040-06 note Grille Sub-assy, Rear Speaker, LH
1988-08 → 1990-10 ended
SV2#,VZV21 SED —
64261 — Garnish, Room Partition
64261-32010-02 note Garnish, Room Partition
1988-08 → 1989-08 ended
SV2#,VZV21 SED LE USA —
64261-32010-02 note Garnish, Room Partition
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,LE) USA —
64261-32010-03 note Garnish, Room Partition
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,LE) —
64261-32010-03 note Garnish, Room Partition
1988-08 → 1989-08 ended
SV2#,VZV21 SED LE —
64261-32010-04 note Garnish, Room Partition
1988-08 → 1989-08 ended
SV2#,VZV21 SED LE —
64261-32010-04 note Garnish, Room Partition
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,LE) —
64261-32010-06 note Garnish, Room Partition
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,LE) —
64261-32010-06 note Garnish, Room Partition
1988-08 → 1989-08 ended
SV2#,VZV21 SED LE —
64271F — Trim, Room Partition
64271-32030 Trim, Room Partition
1988-08 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) —
64279 — Protector, Room Partition
64279-32020-02 note Protector, Room Partition
1990-08 → 1991-06 ended
SV21,VZV21 SED DX —
64279-32020-02 note Protector, Room Partition
1990-08 → 1991-06 ended
SV2#,VZV21 SED LE USA —
64279-32020-02 note Protector, Room Partition
1990-08 → 1991-06 ended
SV25 DX —
64279-32020-02 note Protector, Room Partition
1989-08 → 1990-08 ended
SV2#,VZV21 SED (DX,LE) USA —
64279-32020-02 note Protector, Room Partition
1988-08 → 1989-08 ended
SV2#,VZV21 SED LE USA —
64279-32020-03 note Protector, Room Partition
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,LE) —
64279-32020-03 note Protector, Room Partition
1988-08 → 1989-08 ended
SV2#,VZV21 SED LE —
64279-32020-04 note Protector, Room Partition
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,LE) —
64279-32020-04 note Protector, Room Partition
1988-08 → 1989-08 ended
SV2#,VZV21 SED LE —
64279-32020-06 note Protector, Room Partition
1989-08 → 1990-08 ended
SV2#,VZV21 SED (DX,LE) —
64279-32020-06 note Protector, Room Partition
1990-08 → 1991-06 ended
SV2#,VZV21 SED LE —
64279-32020-06 note Protector, Room Partition
1988-08 → 1989-08 ended
SV2#,VZV21 SED LE —
64330 — Panel Assy, Package Tray Trim
64330-32142-02 note Panel Assy, Package Tray Trim
1988-08 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64330-32142-03 note Panel Assy, Package Tray Trim
1988-08 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) —
64330-32142-04 note Panel Assy, Package Tray Trim
1988-08 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) —
64330-32142-06 note Panel Assy, Package Tray Trim
1988-08 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) —
64330-32232-02 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV2#,VZV21 SED DX USA —
64330-32232-02 note Panel Assy, Package Tray Trim
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64330-32232-02 note Panel Assy, Package Tray Trim
1988-08 → 1991-06 ended
SV2#,VZV21 SED LE USA —
64330-32232-02 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV21 STD USA —
64330-32232-03 note Panel Assy, Package Tray Trim
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64330-32232-03 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV2#,VZV21 SED DX USA —
64330-32232-03 note Panel Assy, Package Tray Trim
1989-08 → 1991-06 ended
SV2# SED DX CND —
64330-32232-03 note Panel Assy, Package Tray Trim
1988-08 → 1991-06 ended
SV2#,VZV21 SED LE —
64330-32232-03 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV2# SED (DX,STD) CND —
64330-32232-03 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV21 STD USA —
64330-32232-04 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV2# SED (DX,STD) CND —
64330-32232-04 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV2#,VZV21 SED DX USA —
64330-32232-04 note Panel Assy, Package Tray Trim
1988-08 → 1991-06 ended
SV2#,VZV21 SED LE —
64330-32232-04 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV21 STD USA —
64330-32232-04 note Panel Assy, Package Tray Trim
1989-08 → 1991-06 ended
SV2# SED DX CND —
64330-32232-04 note Panel Assy, Package Tray Trim
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64330-32232-06 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV2#,VZV21 SED DX USA —
64330-32232-06 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV2# SED (DX,STD) CND —
64330-32232-06 note Panel Assy, Package Tray Trim
1989-08 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
64330-32232-06 note Panel Assy, Package Tray Trim
1989-08 → 1991-06 ended
SV2# SED DX CND —
64330-32232-06 note Panel Assy, Package Tray Trim
1988-08 → 1989-08 ended
SV21 STD USA —
64330-32232-06 note Panel Assy, Package Tray Trim
1988-08 → 1991-06 ended
SV2#,VZV21 SED LE —
64330A — Clip(FOR PACKAGE TRAY TRIM PANEL)
90467-08046-B0 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
90467-08046-D0 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-08 → 1991-06 ended
SV2#,VZV21 SED USA —
90467-08046-E0 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-08 → 1989-06 ended
SV2#,VZV21 SED —
90467-08046-E0 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1989-06 → 1991-06 ended
SV21 STD USA;SV2#,VZV21 SED +1 —
90467-08046-J0 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1988-08 → 1989-06 ended
SV2#,VZV21 SED —
90467-08046-J0 note Clip(FOR PACKAGE TRAY TRIM PANEL)
1989-06 → 1991-06 ended
SV21 STD USA;SV2#,VZV21 SED +1 —
64347B — Bracket, Package Tray Reinforcement, RH
64347-32020 Bracket, Package Tray Reinforcement, RH
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
64348B — Bracket, Package Tray Reinforcement, LH
64348-32010 Bracket, Package Tray Reinforcement, LH
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
64711 — Mat, Luggage Compartment Floor
64711-03010-B1 note Mat, Luggage Compartment Floor
1988-09 → 1991-06 ended
SV21,VZV21 SED (DX,LE) USA —
64711-03010-B1 note Mat, Luggage Compartment Floor
1988-09 → 1991-06 ended
SV21,VZV21 SED (DX,LE) CND —
64711-32030-03 note Mat, Luggage Compartment Floor
1988-08 → 1991-06 ended
SV21 STD USA —
64711-32030-03 note Mat, Luggage Compartment Floor
1988-08 → 1991-06 ended
SV21 STD CND —
64711-32040-03 note Mat, Luggage Compartment Floor
1990-08 → 1991-06 ended
SV21,VZV21 SED LE CND —
64711-32040-03 note Mat, Luggage Compartment Floor
1990-08 → 1991-06 ended
SV21 SED DX CND —
64711-32040-03 note Mat, Luggage Compartment Floor
1990-08 → 1991-06 ended
SV21,VZV21 SED LE USA —
64711-32040-03 note Mat, Luggage Compartment Floor
1990-08 → 1991-06 ended
SV21,VZV21 SED DX USA —
64711-32040-03 note Mat, Luggage Compartment Floor
1988-08 → 1990-08 ended
SV21,VZV21 SED (DX,LE) USA —
64711-32040-03 note Mat, Luggage Compartment Floor
1988-08 → 1990-08 ended
SV21,VZV21 SED (DX,LE) CND —
64711-32120-03 note Mat, Luggage Compartment Floor
1988-08 → 1991-06 ended
SV25 DX USA —
64711-32120-03 note Mat, Luggage Compartment Floor
1988-08 → 1991-06 ended
SV25 DX CND —
64711-32130-03 note Mat, Luggage Compartment Floor
1988-08 → 1991-06 ended
SV25 LE USA —
64711-32130-03 note Mat, Luggage Compartment Floor
1989-08 → 1991-06 ended
SV25 DX USA —
64711-32130-03 note Mat, Luggage Compartment Floor
1989-08 → 1991-06 ended
SV25 DX CND —
64711-32130-03 note Mat, Luggage Compartment Floor
1988-08 → 1991-06 ended
SV25 LE CND —
64714D — Cover, Luggage Compartment Trim, Side, RH
64714-32040-03 note Cover, Luggage Compartment Trim, Side, RH
1988-08 → 1991-06 ended
SV21,VZV21 SED CND —
64714-32040-03 note Cover, Luggage Compartment Trim, Side, RH
1988-08 → 1991-06 ended
SV21,VZV21 SED USA —
64714-32120-03 note Cover, Luggage Compartment Trim, Side, RH
1988-08 → 1991-06 ended
SV25 USA —
64714-32120-03 note Cover, Luggage Compartment Trim, Side, RH
1988-08 → 1991-06 ended
SV25 CND —
64716C — Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-05004-33 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-08 → 1991-06 ended
SV2#,VZV21 SED USA —
90467-05004-33 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1988-08 → 1991-06 ended
SV2#,VZV21 SED CND —
64716G — Cover, Luggage Compartment Trim, Rear
64716-32040-03 note Cover, Luggage Compartment Trim, Rear
1988-08 → 1991-06 ended
SV21 SED (DX,STD) CND —
64716-32040-03 note Cover, Luggage Compartment Trim, Rear
1988-08 → 1991-06 ended
SV21,VZV21 SED (DX,STD) USA —
64716-32050-03 note Cover, Luggage Compartment Trim, Rear
1988-08 → 1991-06 ended
SV21,VZV21 SED LE USA —
64716-32050-03 note Cover, Luggage Compartment Trim, Rear
1988-08 → 1991-06 ended
SV21,VZV21 SED LE CND —
64716-32120-03 note Cover, Luggage Compartment Trim, Rear
1988-08 → 1991-06 ended
SV25 DX CND —
64716-32120-03 note Cover, Luggage Compartment Trim, Rear
1988-08 → 1991-06 ended
SV25 DX USA —
64716-32130-03 note Cover, Luggage Compartment Trim, Rear
1988-08 → 1991-06 ended
SV25 LE USA —
64716-32130-03 note Cover, Luggage Compartment Trim, Rear
1988-08 → 1991-06 ended
SV25 LE CND —
64717A — Cover, Luggage Compartment Trim, Front
64717-03010-B2 note Cover, Luggage Compartment Trim, Front
1988-09 → 1991-06 ended
SV21 SED (DX,STD) CND —
64717-03010-B2 note Cover, Luggage Compartment Trim, Front
1988-09 → 1991-06 ended
SV21,VZV21 SED (DX,STD) USA —
64717-32030-03 note Cover, Luggage Compartment Trim, Front
1988-08 → 1991-06 ended
SV21 SED (DX,STD) CND —
64717-32030-03 note Cover, Luggage Compartment Trim, Front
1988-08 → 1991-06 ended
SV21,VZV21 SED (DX,STD) USA —
64717-32040-03 note Cover, Luggage Compartment Trim, Front
1988-08 → 1991-06 ended
SV25 DX CND —
64717-32040-03 note Cover, Luggage Compartment Trim, Front
1988-08 → 1991-06 ended
SV25 DX USA —
64721 — Cover, Luggage Compartment Trim, Inner RH
64721-32110-03 note Cover, Luggage Compartment Trim, Inner RH
1988-08 → 1991-06 ended
SV21,VZV21 SED USA —
64721-32110-03 note Cover, Luggage Compartment Trim, Inner RH
1988-08 → 1991-06 ended
SV21,VZV21 SED CND —
64721-32120-03 note Cover, Luggage Compartment Trim, Inner RH
1988-08 → 1991-06 ended
SV25 LE USA —
64721-32120-03 note Cover, Luggage Compartment Trim, Inner RH
1988-08 → 1991-06 ended
SV25 LE CND —
64721-32120-03 note Cover, Luggage Compartment Trim, Inner RH
1989-08 → 1991-06 ended
SV25 DX CND —
64721-32120-03 note Cover, Luggage Compartment Trim, Inner RH
1989-08 → 1991-06 ended
SV25 DX USA —
64721-32130-03 note Cover, Luggage Compartment Trim, Inner RH
1988-08 → 1991-06 ended
SV25 DX CND —
64721-32130-03 note Cover, Luggage Compartment Trim, Inner RH
1988-08 → 1991-06 ended
SV25 DX USA —
64721A — Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06114-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1989-08 → 1991-06 ended
SV2#,VZV21 SED DX USA —
90467-06114-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1989-08 → 1991-06 ended
SV2# SED DX CND —
90467-06114-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1989-06 → 1991-06 ended
SV2#,VZV21 SED LE CND —
90467-06114-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1989-06 → 1991-06 ended
SV2#,VZV21 SED (DX,STD) USA —
90467-06114-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1989-06 → 1991-06 ended
SV2# SED (DX,STD) CND —
90467-06114-03 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1989-06 → 1991-06 ended
SV2#,VZV21 SED LE USA —
90467-07042-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1988-08 → 1989-06 ended
SV2#,VZV21 SED (DX,STD) USA —
90467-07042-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1988-08 → 1989-06 ended
SV2#,VZV21 SED LE CND —
90467-07042-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1988-08 → 1989-06 ended
SV2#,VZV21 SED LE USA —
90467-07042-B0 note Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
1988-08 → 1989-06 ended
SV2# SED (DX,STD) CND —
64722 — Cover, Luggage Compartment Trim, Inner LH
64722-32110-03 note Cover, Luggage Compartment Trim, Inner LH
1988-08 → 1991-06 ended
SV21,VZV21 SED CND —
64722-32110-03 note Cover, Luggage Compartment Trim, Inner LH
1988-08 → 1991-06 ended
SV21,VZV21 SED USA —
64722-32120-03 note Cover, Luggage Compartment Trim, Inner LH
1988-08 → 1991-06 ended
SV25 LE USA —
64722-32120-03 note Cover, Luggage Compartment Trim, Inner LH
1988-08 → 1991-06 ended
SV25 LE CND —
64722-32120-03 note Cover, Luggage Compartment Trim, Inner LH
1989-08 → 1991-06 ended
SV25 DX CND —
64722-32120-03 note Cover, Luggage Compartment Trim, Inner LH
1989-08 → 1991-06 ended
SV25 DX USA —
64722-32130-03 note Cover, Luggage Compartment Trim, Inner LH
1988-08 → 1991-06 ended
SV25 DX CND —
64722-32130-03 note Cover, Luggage Compartment Trim, Inner LH
1988-08 → 1991-06 ended
SV25 DX USA —
64770 — Cover Assy, Spare Wheel
64770-32060 Cover Assy, Spare Wheel
1988-08 → 1991-06 ended
SV25 —
64771-32040 Cover Assy, Spare Wheel
1988-08 → 1991-06 ended
SV21,VZV21 SED —
64777 — Clamp, Spare Wheel Cover
64777-32030 Clamp, Spare Wheel Cover
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
64778B — Protector, Spare Wheel
64778-14020 Protector, Spare Wheel
1988-08 → 1991-06 ended
SV21 STD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
