Toyota Camry (JPP)
1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States
Discontinued model
Data version 1992-05

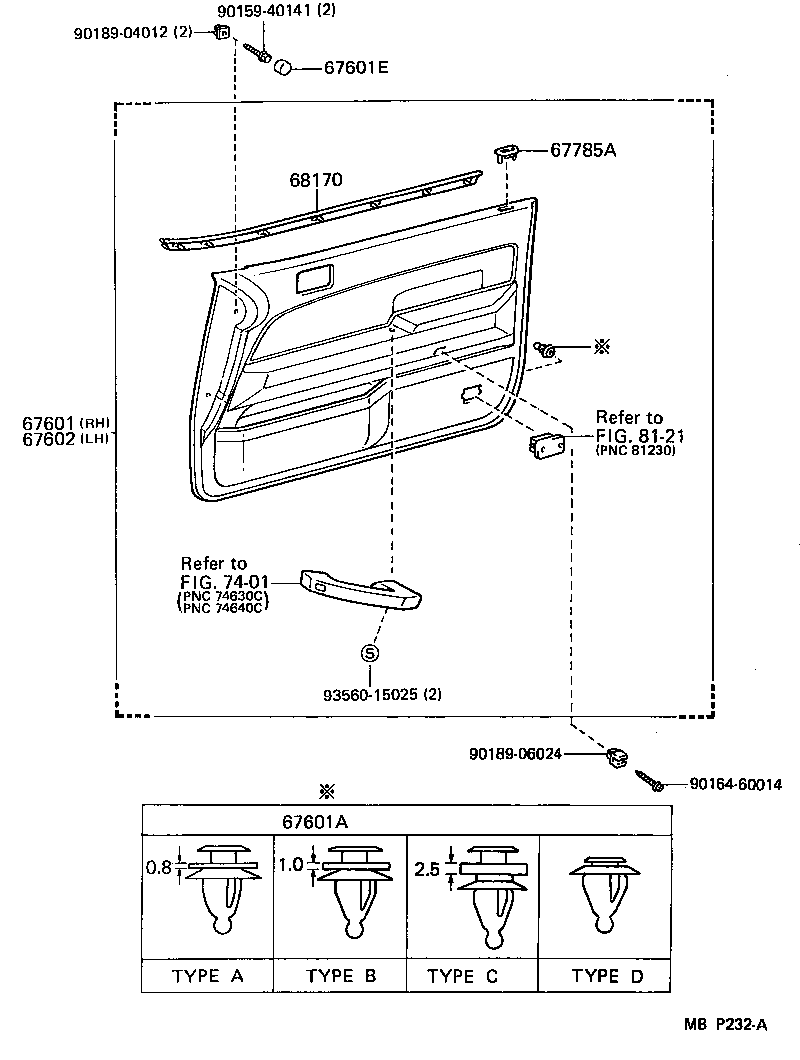

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67650-32200-02 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV21 STD USA | — | |
| 67650-32200-03 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV21 STD | — | |
| 67650-32200-04 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV21 STD | — | |
| 67650-32200-06 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV21 STD | — | |
| 67650-32330-02 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX USA | — | |
| 67650-32330-03 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67650-32330-04 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67650-32330-06 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67650-32330-B0 note |
Board Sub-assy, Front Door Trim, RH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67650-32330-D0 note |
Board Sub-assy, Front Door Trim, RH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX USA | — | |
| 67650-32330-E0 note |
Board Sub-assy, Front Door Trim, RH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67650-32330-J0 note |
Board Sub-assy, Front Door Trim, RH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67650-32331-02 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX USA | — | |
| 67650-32331-03 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67650-32331-04 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67650-32331-06 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67650-32340-02 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX USA | — | |
| 67650-32340-03 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67650-32340-04 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67650-32340-06 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67650-32340-B0 note |
Board Sub-assy, Front Door Trim, RH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67650-32340-D0 note |
Board Sub-assy, Front Door Trim, RH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX USA | — | |
| 67650-32340-E0 note |
Board Sub-assy, Front Door Trim, RH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67650-32340-J0 note |
Board Sub-assy, Front Door Trim, RH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67650-32341-02 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX USA | — | |
| 67650-32341-03 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67650-32341-04 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67650-32341-06 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67650-32350-16 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67650-32350-B0 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67650-32350-D0 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE USA | — | |
| 67650-32350-E0 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1990-08
ended
|
SV2#,VZV21 LE | — | |
| 67650-32350-J0 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67650-32360-16 note |
Board Sub-assy, Front Door Trim, RH
1990-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67650-32360-B0 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67650-32360-D0 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE USA | — | |
| 67650-32360-E0 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1990-08
ended
|
SV2#,VZV21 LE | — | |
| 67650-32360-J0 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67650-32370-02 note |
Board Sub-assy, Front Door Trim, RH
1988-10 → 1991-06
ended
|
SV21,VZV21 SED LE USA | — | |
| 67650-32370-02 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-10
ended
|
SV21,VZV21 SED LE USA | — | |
| 67650-32370-03 note |
Board Sub-assy, Front Door Trim, RH
1989-12 → 1991-06
ended
|
SV21,VZV21 SED LE | — | |
| 67650-32370-04 note |
Board Sub-assy, Front Door Trim, RH
1988-10 → 1989-08
ended
|
SV21,VZV21 SED LE | — | |
| 67650-32370-04 note |
Board Sub-assy, Front Door Trim, RH
1988-08 → 1988-10
ended
|
SV21,VZV21 SED LE | — | |
| 67650-32370-14 note |
Board Sub-assy, Front Door Trim, RH
1989-08 → 1991-06
ended
|
SV21,VZV21 SED LE | — | |
| 67601A — Retainer(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14030 note |
Retainer(FOR FRONT DOOR TRIM BOARD)
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 67771-14040 note |
Retainer(FOR FRONT DOOR TRIM BOARD)
1988-08 → 1989-09
ended
|
SV2#,VZV21 DX,LE | — | |
| 67771-14040 note |
Retainer(FOR FRONT DOOR TRIM BOARD)
1988-08 → 1989-09
ended
|
SV21 STD | — | |
| 67771-14040 note |
Retainer(FOR FRONT DOOR TRIM BOARD)
1989-09 → 1991-06
ended
|
SV2#,VZV21 LE,STD | — | |
| 67771-14040 note |
Retainer(FOR FRONT DOOR TRIM BOARD)
1989-09 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67771-14040 note |
Retainer(FOR FRONT DOOR TRIM BOARD)
1989-09 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67771-32040 note |
Retainer(FOR FRONT DOOR TRIM BOARD)
1988-08 → 1991-06
ended
|
SV2#,VZV21 DX,LE | — | |
| 67771-32060 note |
Retainer(FOR FRONT DOOR TRIM BOARD)
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 67601E — Cap(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-10002-B2 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1988-08 → 1989-08
ended
|
SV2#,VZV21 | — | |
| 90339-10002-B2 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-08 → 1991-06
ended
|
SV2#,VZV21 DX,LE | — | |
| 90339-10002-B2 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-08 → 1991-06
ended
|
SV21 STD | — | |
| 90339-10002-D1 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-08 → 1991-06
ended
|
SV21 STD | — | |
| 90339-10002-D1 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-08 → 1991-06
ended
|
SV2#,VZV21 (DX,LE) USA | — | |
| 90339-10002-D1 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1988-08 → 1989-08
ended
|
SV2#,VZV21 USA | — | |
| 90339-10002-E0 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1988-08 → 1989-08
ended
|
SV2#,VZV21 | — | |
| 90339-10002-E0 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-08 → 1991-06
ended
|
SV2#,VZV21 DX,LE | — | |
| 90339-10002-E0 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-08 → 1991-06
ended
|
SV21 STD | — | |
| 90339-10002-J1 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-08 → 1991-06
ended
|
SV2#,VZV21 DX,LE | — | |
| 90339-10002-J1 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1989-08 → 1991-06
ended
|
SV21 STD | — | |
| 90339-10002-J1 note |
Cap(FOR FRONT DOOR TRIM BOARD)
1988-08 → 1989-08
ended
|
SV2#,VZV21 | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-32840-02 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV21 STD USA | — | |
| 67620-32840-03 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV21 STD | — | |
| 67620-32840-04 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV21 STD | — | |
| 67620-32840-06 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV21 STD | — | |
| 67620-3H090-02 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX USA | — | |
| 67620-3H090-03 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H090-04 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H090-06 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H090-B0 note |
Board Sub-assy, Front Door Trim, LH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H090-D0 note |
Board Sub-assy, Front Door Trim, LH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX USA | — | |
| 67620-3H090-E0 note |
Board Sub-assy, Front Door Trim, LH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H090-J0 note |
Board Sub-assy, Front Door Trim, LH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H091-02 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX USA | — | |
| 67620-3H091-03 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H091-04 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H091-06 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H100-02 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX USA | — | |
| 67620-3H100-03 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H100-04 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H100-06 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-09
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H100-B0 note |
Board Sub-assy, Front Door Trim, LH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H100-D0 note |
Board Sub-assy, Front Door Trim, LH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX USA | — | |
| 67620-3H100-E0 note |
Board Sub-assy, Front Door Trim, LH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H100-J0 note |
Board Sub-assy, Front Door Trim, LH
1988-09 → 1990-08
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H101-02 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX USA | — | |
| 67620-3H101-03 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H101-04 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H101-06 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
SV2#,VZV21 DX | — | |
| 67620-3H110-16 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67620-3H110-B0 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67620-3H110-D0 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE USA | — | |
| 67620-3H110-E0 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1990-08
ended
|
SV2#,VZV21 LE | — | |
| 67620-3H110-J0 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67620-3H120-16 note |
Board Sub-assy, Front Door Trim, LH
1990-08 → 1991-06
ended
|
VZV21 WG USA;SV2#,VZV21 LE +1 | — | |
| 67620-3H120-B0 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67620-3H120-D0 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE USA | — | |
| 67620-3H120-E0 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1990-08
ended
|
SV2#,VZV21 LE | — | |
| 67620-3H120-J0 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 67620-3H130-02 note |
Board Sub-assy, Front Door Trim, LH
1988-10 → 1991-06
ended
|
SV21,VZV21 SED LE USA | — | |
| 67620-3H130-02 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-10
ended
|
SV21,VZV21 SED LE USA | — | |
| 67620-3H130-03 note |
Board Sub-assy, Front Door Trim, LH
1989-12 → 1991-06
ended
|
SV21,VZV21 SED LE | — | |
| 67620-3H130-04 note |
Board Sub-assy, Front Door Trim, LH
1988-10 → 1989-08
ended
|
SV21,VZV21 SED LE | — | |
| 67620-3H130-04 note |
Board Sub-assy, Front Door Trim, LH
1988-08 → 1988-10
ended
|
SV21,VZV21 SED LE | — | |
| 67620-3H130-14 note |
Board Sub-assy, Front Door Trim, LH
1989-08 → 1991-06
ended
|
SV21,VZV21 SED LE | — | |
| 67785A — Holder, Door Locking Button Collar(FOR FRONT DOOR) | ||||
| 69751-12040-13 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1989-09 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 69751-12040-D0 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1989-09 → 1991-06
ended
|
SV2#,VZV21 USA | — | |
| 69751-12040-E1 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1989-09 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 69751-12040-J0 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1989-09 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 69751-32010-02 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1988-08 → 1988-09
ended
|
SV2#,VZV21 USA | — | |
| 69751-32010-03 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1988-08 → 1989-09
ended
|
SV2#,VZV21 | — | |
| 69751-32010-04 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1988-08 → 1988-09
ended
|
SV2#,VZV21 | — | |
| 69751-32010-16 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1988-08 → 1989-09
ended
|
SV2#,VZV21 | — | |
| 69751-32010-D0 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1988-09 → 1989-09
ended
|
SV2#,VZV21 USA | — | |
| 69751-32010-J0 note |
Holder, Door Locking Button Collar(FOR FRONT DOOR)
1988-09 → 1989-09
ended
|
SV2#,VZV21 | — | |
| 68170 — Weatherstrip Assy, Front Door Glass, Inner | ||||
| 68170-32040 |
Weatherstrip Assy, Front Door Glass, Inner
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
