Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

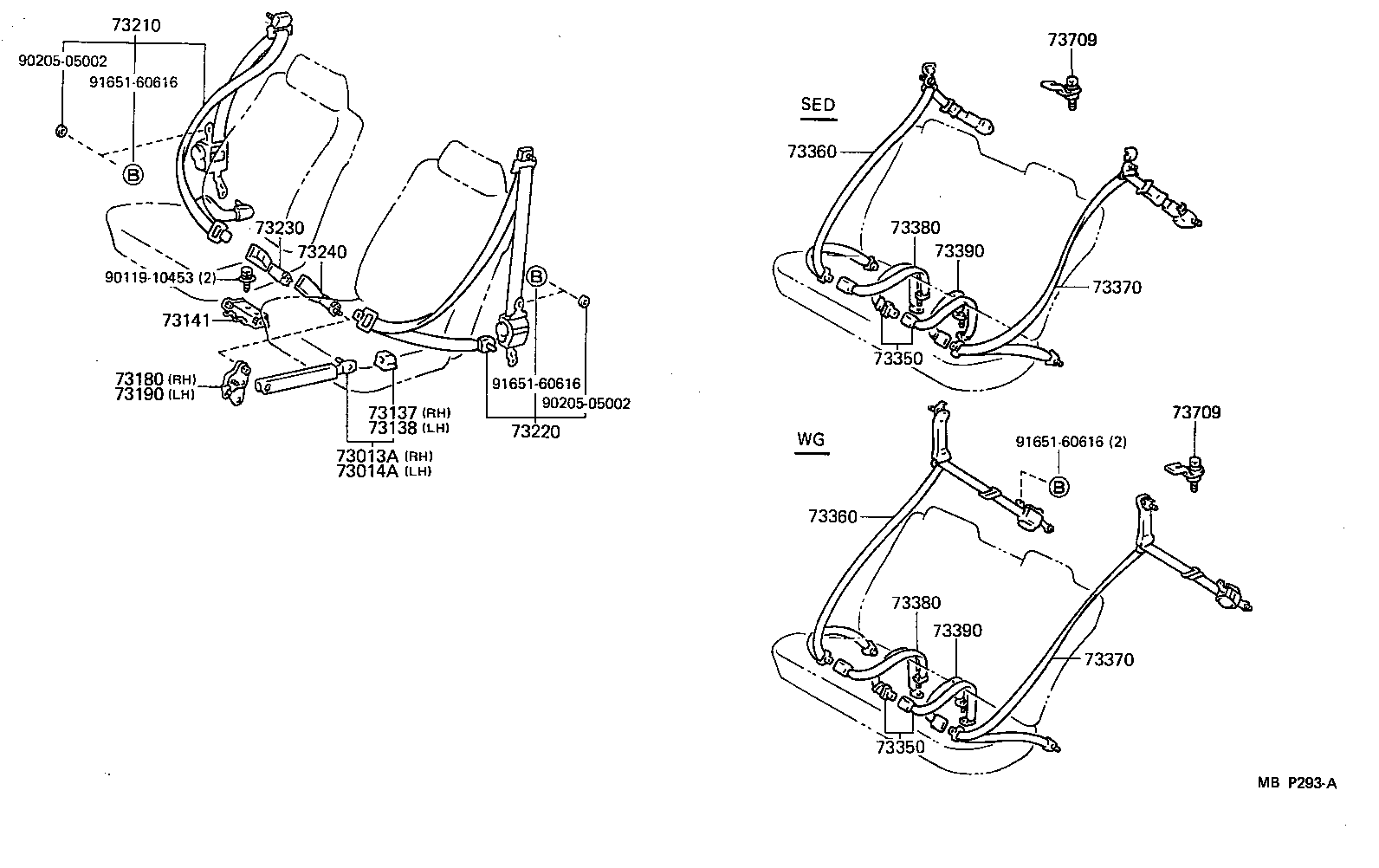

Exploded illustration MBP293A 73210 — BELT ASSY, FRONT SEAT OUTER, RH (11 parts) 73709 — BRACKET SUB-ASSY, TETHER ANCHOR (2 parts) 9020505002 — not listed in this catalogue 9165160616 — not listed in this catalogue 73360 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH (8 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (7 parts) 73380 — BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH (5 parts) 73390 — BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH (5 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (14 parts) 9011910453 — not listed in this catalogue 73370 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH (8 parts) 73141 — BASE, FRONT SEAT BELT ANCHOR (1 parts) 73350 — BELT ASSY, REAR SEAT LAP TYPE, CENTER (4 parts) 73180 — BRACKET ASSY, SEAT BELT INNER ANCHOR, RH (2 parts) 9165160616 — not listed in this catalogue 73190 — BRACKET ASSY, SEAT BELT INNER ANCHOR, LH (2 parts) 9020505002 — not listed in this catalogue 73709 — BRACKET SUB-ASSY, TETHER ANCHOR (2 parts) 73137 — CAP, FRONT SEAT BELT INNER ANCHOR, RH (11 parts) 73138 — CAP, FRONT SEAT BELT INNER ANCHOR, LH (11 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (10 parts) 9165160616 — not listed in this catalogue 73013A — PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH (14 parts) 73014A — PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH (14 parts) 73360 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH (8 parts) 73380 — BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH (5 parts) 73390 — BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH (5 parts) 73370 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH (8 parts) 73350 — BELT ASSY, REAR SEAT LAP TYPE, CENTER (4 parts)
MBP293A · 23 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
129 parts on this figure
Part number Description Fitment Price
73013A — Plate Sub-assy, Front Seat Belt Inner Anchor, RH
73013-32030-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73013-32030-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73013-32030-06 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73013-32040-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 CND —
73013-32040-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 CND —
73013-32040-06 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 CND —
73013-32050-B0 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73013-32050-D0 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73013-32050-E0 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73013-32050-J0 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73013-32060-02 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 USA —
73013-32060-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 USA —
73013-32060-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 USA —
73013-32060-06 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 USA —
73014A — Plate Sub-assy, Front Seat Belt Inner Anchor, LH
73014-32030-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73014-32030-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73014-32030-06 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73014-32040-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 CND —
73014-32040-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 CND —
73014-32040-06 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 CND —
73014-32050-B0 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73014-32050-D0 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73014-32050-E0 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73014-32050-J0 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73014-32060-02 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 USA —
73014-32060-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 USA —
73014-32060-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 USA —
73014-32060-06 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 USA —
73137 — Cap, Front Seat Belt Inner Anchor, RH
73137-32030-03 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73137-32030-04 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73137-32030-06 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73137-32040-02 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 USA —
73137-32040-03 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 —
73137-32040-04 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 —
73137-32040-06 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV25 —
73137-32050-B0 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73137-32050-D0 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73137-32050-E0 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73137-32050-J0 note Cap, Front Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73138 — Cap, Front Seat Belt Inner Anchor, LH
73138-32030-03 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73138-32030-04 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73138-32030-06 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 CND —
73138-32040-02 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 USA —
73138-32040-03 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 —
73138-32040-04 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 —
73138-32040-06 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV25 —
73138-32050-B0 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73138-32050-D0 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73138-32050-E0 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73138-32050-J0 note Cap, Front Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV21,VZV21 USA —
73141 — Base, Front Seat Belt Anchor
73141-32040 Base, Front Seat Belt Anchor
1988-08 → 1991-06 ended
SV21,VZV21 —
73180 — Bracket Assy, Seat Belt Inner Anchor, RH
73011-32020 Bracket Assy, Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
73011-32030 Bracket Assy, Seat Belt Inner Anchor, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73190 — Bracket Assy, Seat Belt Inner Anchor, LH
73012-32020 Bracket Assy, Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
73012-32030 Bracket Assy, Seat Belt Inner Anchor, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73210 — Belt Assy, Front Seat Outer, RH
73210-32132-B0 note Belt Assy, Front Seat Outer, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73210-32132-D0 note Belt Assy, Front Seat Outer, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73210-32132-E0 note Belt Assy, Front Seat Outer, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73210-32132-J0 note Belt Assy, Front Seat Outer, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73210-32190-03 note Belt Assy, Front Seat Outer, RH
1988-08 → 1990-12 ended
SV2#,VZV21 CND —
73210-32190-04 note Belt Assy, Front Seat Outer, RH
1988-08 → 1990-12 ended
SV2#,VZV21 CND —
73210-32190-06 note Belt Assy, Front Seat Outer, RH
1988-08 → 1990-08 ended
SV2#,VZV21 CND —
73210-32190-06 note Belt Assy, Front Seat Outer, RH
1990-08 → 1990-12 ended
SV2#,VZV21 LE CND —
73210-32191-03 note Belt Assy, Front Seat Outer, RH
1990-12 → 1991-06 ended
SV2#,VZV21 CND —
73210-32191-04 note Belt Assy, Front Seat Outer, RH
1990-12 → 1991-06 ended
SV2#,VZV21 CND —
73210-32191-06 note Belt Assy, Front Seat Outer, RH
1990-12 → 1991-06 ended
SV2#,VZV21 CND —
73220 — Belt Assy, Front Seat Outer, LH
73220-32132-B0 note Belt Assy, Front Seat Outer, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73220-32132-D0 note Belt Assy, Front Seat Outer, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73220-32132-E0 note Belt Assy, Front Seat Outer, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73220-32132-J0 note Belt Assy, Front Seat Outer, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73220-32190-03 note Belt Assy, Front Seat Outer, LH
1988-08 → 1990-12 ended
SV2#,VZV21 CND —
73220-32190-04 note Belt Assy, Front Seat Outer, LH
1988-08 → 1990-12 ended
SV2#,VZV21 CND —
73220-32190-06 note Belt Assy, Front Seat Outer, LH
1988-08 → 1990-12 ended
SV2#,VZV21 CND —
73220-32191-03 note Belt Assy, Front Seat Outer, LH
1990-12 → 1991-06 ended
SV2#,VZV21 CND —
73220-32191-04 note Belt Assy, Front Seat Outer, LH
1990-12 → 1991-06 ended
SV2#,VZV21 CND —
73220-32191-06 note Belt Assy, Front Seat Outer, LH
1990-12 → 1991-06 ended
SV2#,VZV21 CND —
73230 — Belt Assy, Front Seat Inner, RH
73230-32100-03 note Belt Assy, Front Seat Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
73230-32100-04 note Belt Assy, Front Seat Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
73230-32100-06 note Belt Assy, Front Seat Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
73230-32111-B0 note Belt Assy, Front Seat Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73230-32111-D0 note Belt Assy, Front Seat Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73230-32111-E0 note Belt Assy, Front Seat Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73230-32111-J0 note Belt Assy, Front Seat Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73240 — Belt Assy, Front Seat Inner, LH
73240-32041-03 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
73240-32041-04 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
73240-32041-06 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 CND —
73240-32052-B0 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73240-32052-D0 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73240-32052-E0 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73240-32052-J0 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73240-32070-03 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 LE CND —
73240-32070-04 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 LE CND —
73240-32070-06 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 LE CND —
73240-32080-B0 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 LE USA —
73240-32080-D0 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 LE USA —
73240-32080-E0 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 LE USA —
73240-32080-J0 note Belt Assy, Front Seat Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 LE USA —
73350 — Belt Assy, Rear Seat Lap Type, Center
73350-32150-02 note Belt Assy, Rear Seat Lap Type, Center
1988-08 → 1991-06 ended
SV2#,VZV21 USA —
73350-32150-03 note Belt Assy, Rear Seat Lap Type, Center
1988-08 → 1991-06 ended
SV2#,VZV21 —
73350-32150-04 note Belt Assy, Rear Seat Lap Type, Center
1988-08 → 1991-06 ended
SV2#,VZV21 —
73350-32150-06 note Belt Assy, Rear Seat Lap Type, Center
1988-08 → 1991-06 ended
SV2#,VZV21 —
73360 — Belt Assy, Rear Seat 3 Point Type, Outer RH
73360-32260-02 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1988-08 → 1991-06 ended
SV2#,VZV21 SED USA —
73360-32260-03 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
73360-32260-04 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
73360-32260-06 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
73360-32270-02 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1988-08 → 1991-06 ended
SV21,VZV21 WG USA —
73360-32270-03 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1988-08 → 1991-06 ended
SV21,VZV21 WG —
73360-32270-04 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1988-08 → 1991-06 ended
SV21,VZV21 WG —
73360-32270-06 note Belt Assy, Rear Seat 3 Point Type, Outer RH
1988-08 → 1991-06 ended
SV21,VZV21 WG —
73370 — Belt Assy, Rear Seat 3 Point Type, Outer LH
73370-32210-02 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1988-08 → 1991-06 ended
SV2#,VZV21 SED USA —
73370-32210-03 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
73370-32210-04 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
73370-32210-06 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1988-08 → 1991-06 ended
SV2#,VZV21 SED —
73370-32220-02 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1988-08 → 1991-06 ended
SV21,VZV21 WG USA —
73370-32220-03 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1988-08 → 1991-06 ended
SV21,VZV21 WG —
73370-32220-04 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1988-08 → 1991-06 ended
SV21,VZV21 WG —
73370-32220-06 note Belt Assy, Rear Seat 3 Point Type, Outer LH
1988-08 → 1991-06 ended
SV21,VZV21 WG —
73380 — Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380-32170-02 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
1988-08 → 1990-08 ended
SV2#,VZV21 USA —
73380-32170-02 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
1990-08 → 1991-06 ended
SV2#,VZV21 (LE,STD) USA —
73380-32170-03 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 —
73380-32170-04 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 —
73380-32170-06 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
1988-08 → 1991-06 ended
SV2#,VZV21 —
73390 — Belt Assy, Rear Seat 3 Point Type, Inner, LH
73380-32170-02 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
1988-08 → 1990-08 ended
SV2#,VZV21 USA —
73380-32170-02 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
1990-08 → 1991-06 ended
SV2#,VZV21 (LE,STD) USA —
73380-32170-03 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 —
73380-32170-04 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 —
73380-32170-06 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
1988-08 → 1991-06 ended
SV2#,VZV21 —
73709 — Bracket Sub-assy, Tether Anchor
73709-12010 Bracket Sub-assy, Tether Anchor
1988-08 → 1991-06 ended
SV2#,VZV21 SED CND —
73709-20020 Bracket Sub-assy, Tether Anchor
1988-08 → 1991-06 ended
SV21,VZV21 WG CND —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
