Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

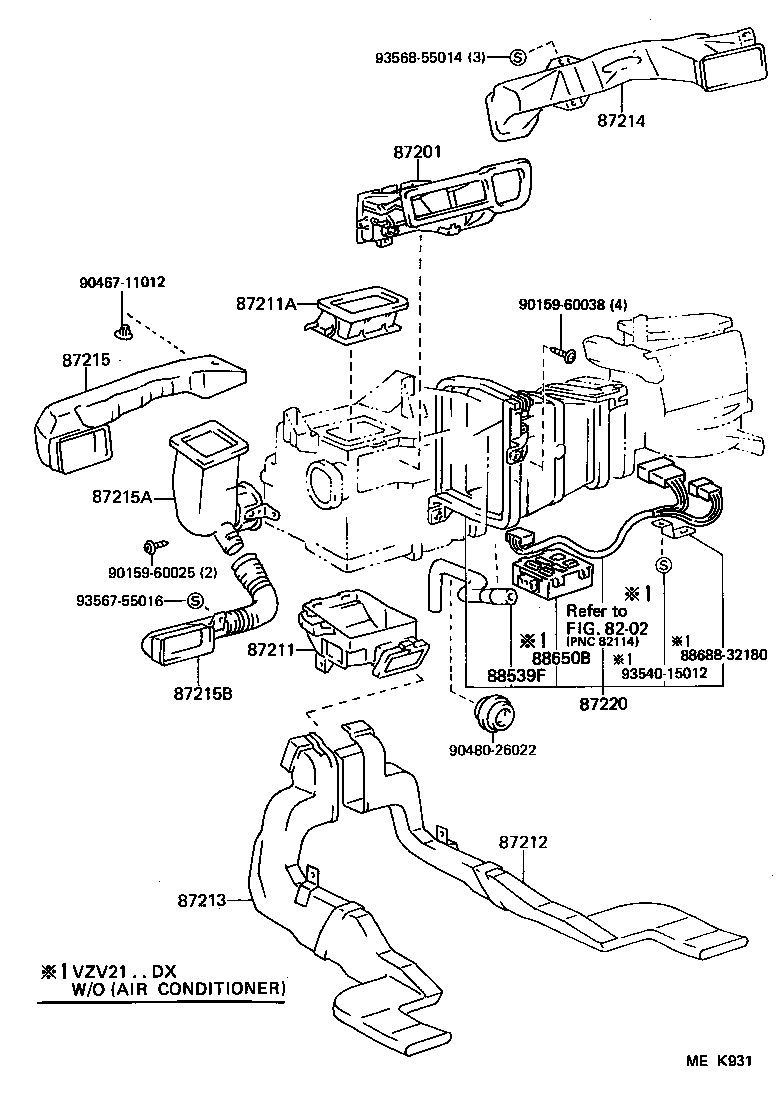

Exploded illustration MEK931 9356855014 — not listed in this catalogue 87214 — DUCT, AIR, SIDE NO.1 RH (1 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (1 parts) 9046711012 — not listed in this catalogue 87211A — DUCT, AIR, NO.2 (1 parts) 9015960038 — not listed in this catalogue 87215 — DUCT, AIR, SIDE NO.1 LH (1 parts) 87215A — DUCT, AIR, SIDE NO.2 LH (3 parts) 9015960025 — not listed in this catalogue 9356755016 — not listed in this catalogue 8202 — not listed in this catalogue 87211 — DUCT, AIR, NO.1 (1 parts) 8868832180 — not listed in this catalogue 88650B — AMPLIFIER ASSY, AIRCONDITIONER (1 parts) 9354015012 — not listed in this catalogue 88539F — HOSE, DRAIN (1 parts) 87215B — DUCT, AIR, SIDE NO.3 LH (1 parts) 87220 — DUCT ASSY, AIR (2 parts) 9048026022 — not listed in this catalogue 87212 — DUCT, AIR, REAR NO.1 (2 parts) 87213 — DUCT, AIR, REAR NO.2 (1 parts)
MEK931 · 12 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
87201 — Duct Sub-assy, Air, NO.1
87201-32150 Duct Sub-assy, Air, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
87211 — Duct, Air, NO.1
87201-32171 Duct, Air, NO.1
1988-08 → 1991-06 ended
SV2#,VZV21 —
87211A — Duct, Air, NO.2
87211-32040 Duct, Air, NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
87212 — Duct, Air, Rear NO.1
87212-32010 Duct, Air, Rear NO.1
1988-08 → 1991-06 ended
SV21,VZV21 —
87212-32020 Duct, Air, Rear NO.1
1988-08 → 1991-06 ended
SV25 —
87213 — Duct, Air, Rear NO.2
87213-32010 Duct, Air, Rear NO.2
1988-08 → 1991-06 ended
SV2#,VZV21 —
87214 — Duct, Air, Side NO.1 RH
55086-32041 Duct, Air, Side NO.1 RH
1988-08 → 1991-06 ended
SV2#,VZV21 —
87215 — Duct, Air, Side NO.1 LH
55084-32050 Duct, Air, Side NO.1 LH
1988-08 → 1991-06 ended
SV2#,VZV21 —
87215A — Duct, Air, Side NO.2 LH
55085-32080 Duct, Air, Side NO.2 LH
1988-08 → 1991-06 ended
SV2#;VZV21 DX —
55085-32100 Duct, Air, Side NO.2 LH
1988-08 → 1991-06 ended
VZV21 LE —
55085-32100 note Duct, Air, Side NO.2 LH
1988-08 → 1991-06 ended
SV2#;VZV21 DX —
87215B — Duct, Air, Side NO.3 LH
55088-32050 Duct, Air, Side NO.3 LH
1988-08 → 1991-06 ended
SV2#,VZV21 —
87220 — Duct Assy, Air
87220-32020 Duct Assy, Air
1988-08 → 1991-06 ended
SV2# —
87220-32041 Duct Assy, Air
1988-08 → 1991-06 ended
VZV21 DX —
88539F — Hose, Drain
88539-32030 Hose, Drain
1988-08 → 1991-06 ended
SV2#;VZV21 DX —
88650B — Amplifier Assy, Airconditioner
88650-20340 Amplifier Assy, Airconditioner
1988-08 → 1991-06 ended
VZV21 DX —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
