Toyota Camry (JPP)
1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · United States
Discontinued model
Data version 1992-05

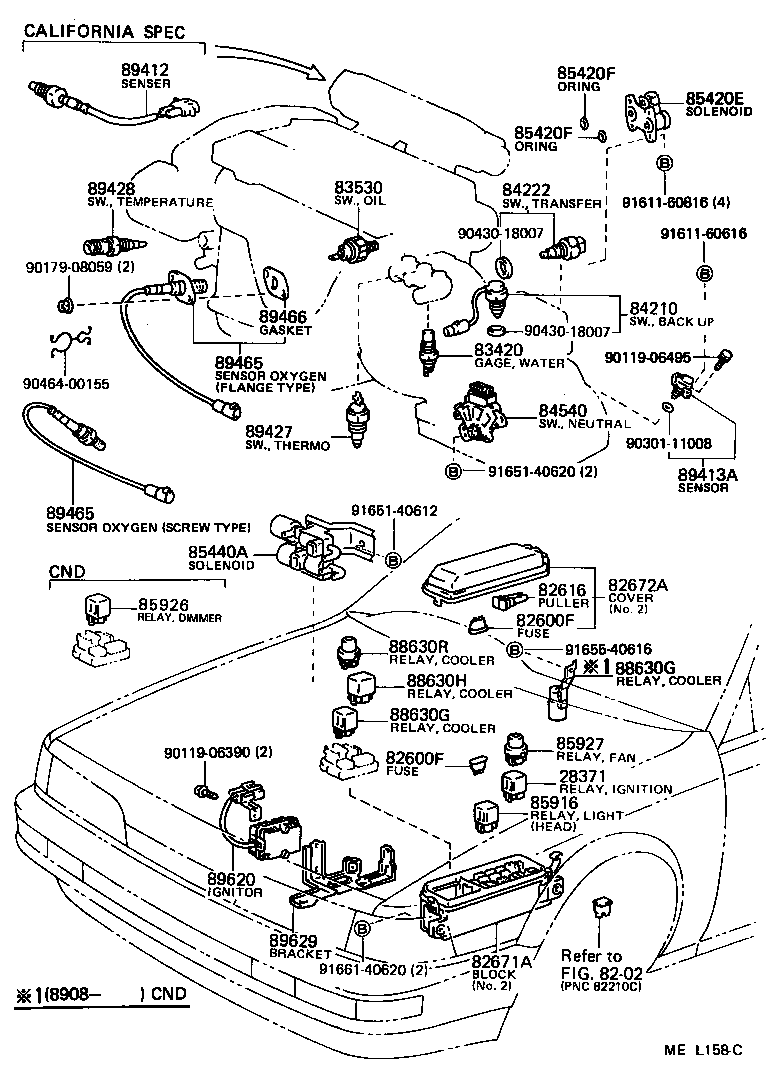

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 85925-17010 |
Relay, Ignition, NO.1
1988-11 → 1991-06
ended
|
2VZFE VZV21 | — | |
| 90987-04002 |
Relay, Ignition, NO.1
1988-08 → 1988-11
ended
|
3SFE,2VZFE SV2#,VZV21 | — | |
| 90987-04002 |
Relay, Ignition, NO.1
1988-11 → 1991-06
ended
|
3SFE SV2# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09002 note |
Fuse, Fuse Block
1988-08 → 1989-08
ended
|
SV21 STD CND | — | |
| 90982-09002 note |
Fuse, Fuse Block
1990-01 → 1991-06
ended
|
SV2#,VZV21 LE USA | — | |
| 90982-09002 note |
Fuse, Fuse Block
1988-08 → 1991-06
ended
|
SV21 STD USA;SV2#,VZV21 DX,LE | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-08 → 1991-06
ended
|
SV2#,VZV21 CND | — | |
| 90982-09004 note |
Fuse, Fuse Block
1988-08 → 1989-06
ended
|
SV2#,VZV21 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1989-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1989-06 → 1989-08
ended
|
VZV21;SV25 LE;SV21 USA;SV25 DX +3 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1989-06 → 1989-08
ended
|
SV2# DX CND | — | |
| 90982-09005 note |
Fuse, Fuse Block
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 82616 — Puller, Fuse | ||||
| 82616-12010 |
Puller, Fuse
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 82671A — Block, Junction | ||||
| 82671-14010 |
Block, Junction
1988-08 → 1991-06
ended
|
SV2#,VZV21 LE | — | |
| 82671-20030 |
Block, Junction
1988-08 → 1991-06
ended
|
SV2#,VZV21 DX,STD | — | |
| 82671-32030 |
Block, Junction
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-32050 |
Cover, Junction Block
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 82672-32160 |
Cover, Junction Block
1988-08 → 1989-06
ended
|
SV2#,VZV21 | — | |
| 82672-32161 |
Cover, Junction Block
1989-06 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 82672-32200 |
Cover, Junction Block
1988-08 → 1989-08
ended
|
SV2#,VZV21 | — | |
| 82672-32200 |
Cover, Junction Block
1989-08 → 1989-12
ended
|
SV2#,VZV21 USA | — | |
| 82672-32290 |
Cover, Junction Block
1989-08 → 1990-01
ended
|
SV2#,VZV21 CND | — | |
| 82672-32291 |
Cover, Junction Block
1990-01 → 1991-06
ended
|
SV2#,VZV21 CND | — | |
| 82672-32350 |
Cover, Junction Block
1989-12 → 1991-06
ended
|
SV2#,VZV21 USA | — | |
| 83420 — Gage Assy, Water Temperature Sender | ||||
| 83420-16020 |
Gage Assy, Water Temperature Sender
1988-08 → 1991-06
ended
|
SV2# | — | |
| 83420-20020 |
Gage Assy, Water Temperature Sender
1988-08 → 1991-06
ended
|
VZV21 | — | |
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-30080 |
Switch Assy, Oil Pressure (FOR ENGINE)
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-12040 |
Switch Assy, Back-up Lamp
1988-08 → 1991-06
ended
|
SV2#,VZV21 5F | — | |
| 84222 — Switch, Transfer Indicator, NO.1 | ||||
| 84222-12010 |
Switch, Transfer Indicator, NO.1
1988-08 → 1990-08
ended
|
SV25 5F | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-32070 |
Switch Assy, Neutral Start
1988-08 → 1991-06
ended
|
SV21 4FC | — | |
| 84540-32090 |
Switch Assy, Neutral Start
1988-08 → 1991-06
ended
|
SV25,VZV21 4FC | — | |
| 85420E — Solenoid Assy, Transmission | ||||
| 85420-32150 |
Solenoid Assy, Transmission
1988-08 → 1991-06
ended
|
SV25 4FC | — | |
| 85420F — Ring, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 note |
Ring, O(FOR TRANSMISSION SOLENOID)
1988-08 → 1991-06
ended
|
SV25 4FC | — | |
| 90301-23001 note |
Ring, O(FOR TRANSMISSION SOLENOID)
1988-08 → 1991-06
ended
|
SV25 4FC | — | |
| 85440A — Solenoid Assy, Four Wheel Drive Control | ||||
| 85440-32010 |
Solenoid Assy, Four Wheel Drive Control
1988-08 → 1990-08
ended
|
SV25 5F | — | |
| 85916 — Relay, Light Control | ||||
| 90987-02002 note |
Relay, Light Control
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 90987-02004 note |
Relay, Light Control
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 90987-02006 note |
Relay, Light Control
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 85926 — Relay, Headlamp Dimmer | ||||
| 85926-30020 |
Relay, Headlamp Dimmer
1989-08 → 1991-06
ended
|
SV2#,VZV21 CND | — | |
| 85927 — Relay, Cooling Fan | ||||
| 90987-03001 |
Relay, Cooling Fan
1988-08 → 1991-06
ended
|
SV2# | — | |
| 88630G — Relay Assy, Cooler | ||||
| 85926-30020 |
Relay Assy, Cooler
1988-08 → 1989-08
ended
|
SV2#,VZV21 | — | |
| 85926-30020 |
Relay Assy, Cooler
1989-08 → 1991-06
ended
|
SV2#,VZV21 USA | — | |
| 88630-32020 |
Relay Assy, Cooler
1989-08 → 1991-06
ended
|
SV2#,VZV21 CND | — | |
| 88630H — Relay Assy, Cooler | ||||
| 88630-32010 |
Relay Assy, Cooler
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 88630R — Relay Assy, Cooler, NO.3 | ||||
| 90987-02004 |
Relay Assy, Cooler, NO.3
1988-08 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 89412 — Sensor, E.G.R Gas Temperature | ||||
| 89412-12010 note |
Sensor, E.G.R Gas Temperature
1988-08 → 1991-06
ended
|
SV2#,VZV21 USA | — | |
| 89413A — Sensor, Transmission Revolution | ||||
| 89413-32010 |
Sensor, Transmission Revolution
1988-08 → 1991-06
ended
|
SV25 4FC | — | |
| 89427 — Switch, Temperature Detect | ||||
| 89427-32021 |
Switch, Temperature Detect
1988-08 → 1991-06
ended
|
SV25 | — | |
| 89429-32020 |
Switch, Temperature Detect
1988-08 → 1991-06
ended
|
VZV21 | — | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-20060 |
Switch, Temperature Detect, NO.2
1988-08 → 1991-06
ended
|
SV2# | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-29285 note |
Sensor, Oxygen
1988-08 → 1991-06
ended
|
VZV21 USA | — | |
| 89465-29285 note |
Sensor, Oxygen
1988-08 → 1991-06
ended
|
VZV21 | — | |
| 89465-32090 note |
Sensor, Oxygen
1988-08 → 1989-08
ended
|
VZV21 USA | — | |
| 89465-32110 note |
Sensor, Oxygen
1988-08 → 1991-06
ended
|
SV21 USA | — | |
| 89465-32120 note |
Sensor, Oxygen
1989-08 → 1991-06
ended
|
VZV21 USA | — | |
| 89465-39145 note |
Sensor, Oxygen
1988-08 → 1989-08
ended
|
SV21 | — | |
| 89465-39146 note |
Sensor, Oxygen
1989-08 → 1991-06
ended
|
SV21 | — | |
| 89465-39205 note |
Sensor, Oxygen
1988-08 → 1991-06
ended
|
SV21 USA | — | |
| 89465-39205 note |
Sensor, Oxygen
1988-08 → 1991-06
ended
|
SV25 | — | |
| 89466 — Gasket, Oxygen Sensor | ||||
| 89466-20020 |
Gasket, Oxygen Sensor
1988-10 → 1991-06
ended
|
SV2#,VZV21 | — | |
| 89466-30010 |
Gasket, Oxygen Sensor
1988-08 → 1988-10
ended
|
SV2#,VZV21 | — | |
| 89620 — Igniter Assy | ||||
| 89620-32110 |
Igniter Assy
1988-08 → 1991-06
ended
|
VZV21 | — | |
| 89621-32010 |
Igniter Assy
1988-08 → 1991-06
ended
|
SV2# | — | |
| 89629 — Bracket, Igniter Assy | ||||
| 89629-32040 |
Bracket, Igniter Assy
1988-08 → 1991-06
ended
|
SV2# | — | |
| 89629-32070 |
Bracket, Igniter Assy
1988-08 → 1989-06
ended
|
VZV21 | — | |
| 89629-32071 |
Bracket, Igniter Assy
1989-06 → 1991-06
ended
|
VZV21 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
