Toyota Camry (JPP)
1991-06 → 1996-08 · chassis SXV10,VCV10,MCV10 · catalogue 281450 · United States
Discontinued model
Data version 1997-04

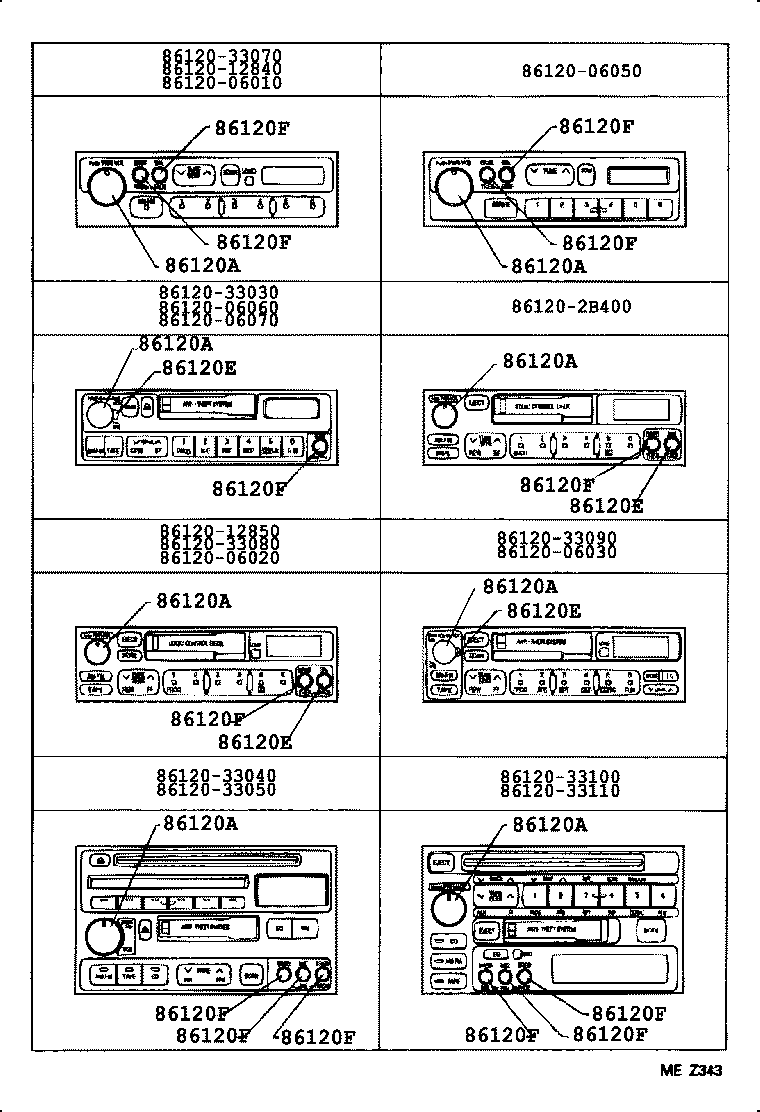

Radio Receiver & Amplifier & Condenser
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86120E | Knob, Radio Receiver Balance |
| 86120F | Knob, Radio Receiver Sub Volume |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86213 | Bracket, Radio, NO.3 |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
