Exploded illustration 521121B 9010510511 — not listed in this catalogue 9017906299 — not listed in this catalogue 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (2 parts) 52064A — BAR SUB-ASSY, FRONT BUMPER SIDE, RH (2 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (2 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (2 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (2 parts) 52065A — BAR SUB-ASSY, FRONT BUMPER SIDE, LH (2 parts) 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (4 parts) 9015960215 — not listed in this catalogue 9017906127 — not listed in this catalogue 9015950311 — not listed in this catalogue 9018905015 — not listed in this catalogue 91673A0616 — not listed in this catalogue 9015960431 — not listed in this catalogue 9015960249 — not listed in this catalogue 4774958010 — not listed in this catalogue 52535 — RETAINER, FRONT BUMPER SIDE, RH (2 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (2 parts) 52145A — STAY, FRONT BUMPER, NO.2 RH (2 parts) 52146A — STAY, FRONT BUMPER, NO.2 LH (2 parts) 52721 — MOULDING, FRONT BUMPER EXTENSION, RH (3 parts) 52722 — MOULDING, FRONT BUMPER EXTENSION, LH (3 parts) 9010906283 — not listed in this catalogue 52127D — COVER, FRONT BUMPER HOLE, RH (21 parts) 53141C — GARNISH, RADIATOR GRILLE (1 parts) 53142C — GARNISH, RADIATOR GRILLE, NO.2 (1 parts) 53879H — RETAINER, FRONT FENDER LINER (1 parts) 9010506246 — not listed in this catalogue 8106 — not listed in this catalogue 8106 — not listed in this catalogue 9018906193 — not listed in this catalogue 5102 — not listed in this catalogue 8102 — not listed in this catalogue 8102 — not listed in this catalogue 5102 — not listed in this catalogue 8106 — not listed in this catalogue 5304 — not listed in this catalogue 5304 — not listed in this catalogue 5302 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (4 parts) 9015960215 — not listed in this catalogue 9017906127 — not listed in this catalogue 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (4 parts)

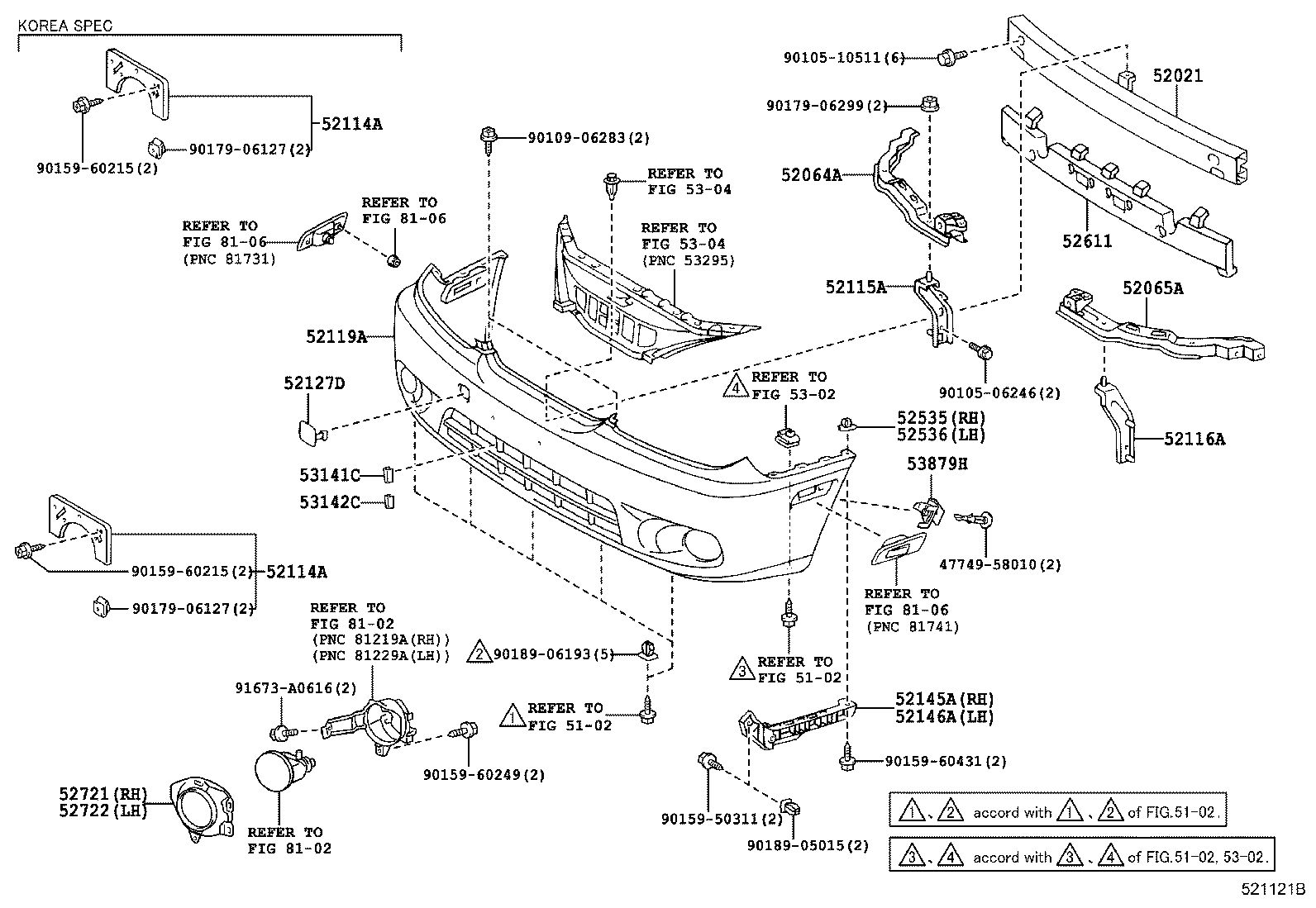

521121B · 19 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
52021 — Reinforcement Sub-assy, Front Bumper
52021-33120 Reinforcement Sub-assy, Front Bumper
2001-07 → 2004-06 ended
MCV3# —
52021-33120 Reinforcement Sub-assy, Front Bumper
2004-06 → 2006-03 ended
MCV31 —
52064A — Bar Sub-assy, Front Bumper Side, RH
52064-33010 Bar Sub-assy, Front Bumper Side, RH
2001-07 → 2004-06 ended
MCV3# —
52064-33010 Bar Sub-assy, Front Bumper Side, RH
2004-06 → 2006-03 ended
MCV31 —
52065A — Bar Sub-assy, Front Bumper Side, LH
52065-33010 Bar Sub-assy, Front Bumper Side, LH
2001-07 → 2004-06 ended
MCV3# —
52065-33010 Bar Sub-assy, Front Bumper Side, LH
2004-06 → 2006-03 ended
MCV31 —
52114A — Bracket, Front Bumper Extension Mounting
52114-33110 note Bracket, Front Bumper Extension Mounting
2001-12 → 2004-06 ended
MCV3# —
52114-33130 Bracket, Front Bumper Extension Mounting
2001-07 → 2004-06 ended
MCV3# —
52114-33110 note Bracket, Front Bumper Extension Mounting
2004-06 → 2004-08 ended
MCV31 —
52114-33130 Bracket, Front Bumper Extension Mounting
2004-06 → —
MCV31 —
52115A — Support, Front Bumper Side, RH
52115-33070 Support, Front Bumper Side, RH
2001-07 → 2004-06 ended
MCV3# —
52115-33070 Support, Front Bumper Side, RH
2004-06 → 2006-03 ended
MCV31 —
52116A — Support, Front Bumper Side, LH
52116-33060 Support, Front Bumper Side, LH
2001-07 → 2004-06 ended
MCV3# —
52116-33060 Support, Front Bumper Side, LH
2004-06 → 2006-03 ended
MCV31 —
52119A — Cover, Front Bumper
52119-33927 Cover, Front Bumper
2001-07 → 2004-06 ended
MCV3# —
52119-33928 note Cover, Front Bumper
2001-12 → 2004-06 ended
MCV3# —
52119-33929 Cover, Front Bumper
2004-06 → 2006-03 ended
MCV31 —
52119-33930 note Cover, Front Bumper
2004-06 → 2006-03 ended
MCV31 —
52127D — Cover, Front Bumper Hole, RH
52128-33030-A0 note Cover, Front Bumper Hole, RH
2001-07 → 2004-06 ended
MCV3# —
52128-33030-B0 note Cover, Front Bumper Hole, RH
2001-07 → 2004-06 ended
MCV3# —
52128-33030-B1 note Cover, Front Bumper Hole, RH
2004-02 → 2004-06 ended
MCV31 —
52128-33030-B2 note Cover, Front Bumper Hole, RH
2004-02 → 2004-06 ended
MCV31 —
52128-33030-C0 note Cover, Front Bumper Hole, RH
2001-07 → 2004-06 ended
MCV3# —
52128-33030-D0 note Cover, Front Bumper Hole, RH
2001-07 → 2004-06 ended
MCV3# —
52128-33030-D1 note Cover, Front Bumper Hole, RH
2001-07 → 2004-06 ended
MCV3# —
52128-33030-E0 note Cover, Front Bumper Hole, RH
2001-07 → 2004-06 ended
MCV3# —
52128-33030-G0 note Cover, Front Bumper Hole, RH
2001-07 → 2004-06 ended
MCV3# —
52128-33030-H0 note Cover, Front Bumper Hole, RH
2001-07 → 2004-06 ended
MCV3# —
52128-33030-J0 note Cover, Front Bumper Hole, RH
2001-07 → 2004-06 ended
MCV3# —
52128-33030-A0 note Cover, Front Bumper Hole, RH
2004-06 → 2006-03 ended
MCV31 —
52128-33030-B3 note Cover, Front Bumper Hole, RH
2004-06 → 2006-03 ended
MCV31 —
52128-33030-B4 note Cover, Front Bumper Hole, RH
2004-06 → 2006-03 ended
MCV31 —
52128-33030-C0 note Cover, Front Bumper Hole, RH
2004-06 → 2006-03 ended
MCV31 —
52128-33030-C1 note Cover, Front Bumper Hole, RH
2005-08 → 2005-12 ended
MCV31 —
52128-33030-D0 note Cover, Front Bumper Hole, RH
2004-06 → 2006-03 ended
MCV31 —
52128-33030-D1 note Cover, Front Bumper Hole, RH
2004-06 → 2006-03 ended
MCV31 —
52128-33030-E1 note Cover, Front Bumper Hole, RH
2004-06 → 2006-03 ended
MCV31 —
52128-33030-G1 note Cover, Front Bumper Hole, RH
2004-06 → 2006-03 ended
MCV31 —
52128-33030-J0 note Cover, Front Bumper Hole, RH
2004-06 → 2006-03 ended
MCV31 —
52145A — Stay, Front Bumper, NO.2 RH
52145-33040 Stay, Front Bumper, NO.2 RH
2001-07 → 2004-06 ended
MCV3# —
52145-33040 Stay, Front Bumper, NO.2 RH
2004-06 → —
MCV31 —
52146A — Stay, Front Bumper, NO.2 LH
52146-33040 Stay, Front Bumper, NO.2 LH
2001-07 → 2004-06 ended
MCV3# —
52146-33040 Stay, Front Bumper, NO.2 LH
2004-06 → —
MCV31 —
52535 — Retainer, Front Bumper Side, RH
52535-30150 Retainer, Front Bumper Side, RH
2001-07 → 2004-06 ended
MCV3# —
52535-30150 Retainer, Front Bumper Side, RH
2004-06 → —
MCV31 —
52536 — Retainer, Front Bumper Side, LH
52535-30150 Retainer, Front Bumper Side, LH
2001-07 → 2004-06 ended
MCV3# —
52535-30150 Retainer, Front Bumper Side, LH
2004-06 → —
MCV31 —
52611 — Absorber, Front Bumper Energy
52611-33130 Absorber, Front Bumper Energy
2001-07 → 2004-06 ended
MCV3# —
52611-33150 Absorber, Front Bumper Energy
2004-06 → —
MCV31 —
52721 — Moulding, Front Bumper Extension, RH
52721-33010 Moulding, Front Bumper Extension, RH
2004-06 → 2004-12 ended
MCV31 —
52721-33010 Moulding, Front Bumper Extension, RH
2005-01 → 2005-04 ended
MCV31 —
52721-33010 Moulding, Front Bumper Extension, RH
2005-05 → —
MCV31 —
52722 — Moulding, Front Bumper Extension, LH
52722-33010 Moulding, Front Bumper Extension, LH
2004-06 → 2004-12 ended
MCV31 —
52722-33010 Moulding, Front Bumper Extension, LH
2005-01 → 2005-04 ended
MCV31 —
52722-33010 Moulding, Front Bumper Extension, LH
2005-05 → —
MCV31 —
53141C — Garnish, Radiator Grille
53141-33030 Garnish, Radiator Grille
2004-06 → —
MCV31 —
53142C — Garnish, Radiator Grille, NO.2
53142-33030 Garnish, Radiator Grille, NO.2
2004-06 → —
MCV31 —
53879H — Retainer, Front Fender Liner
53879-58010 Retainer, Front Fender Liner
2004-06 → —
MCV31 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
