Toyota Lexus ES300/330

2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

12 part groups · 2 illustrations

Illustrations

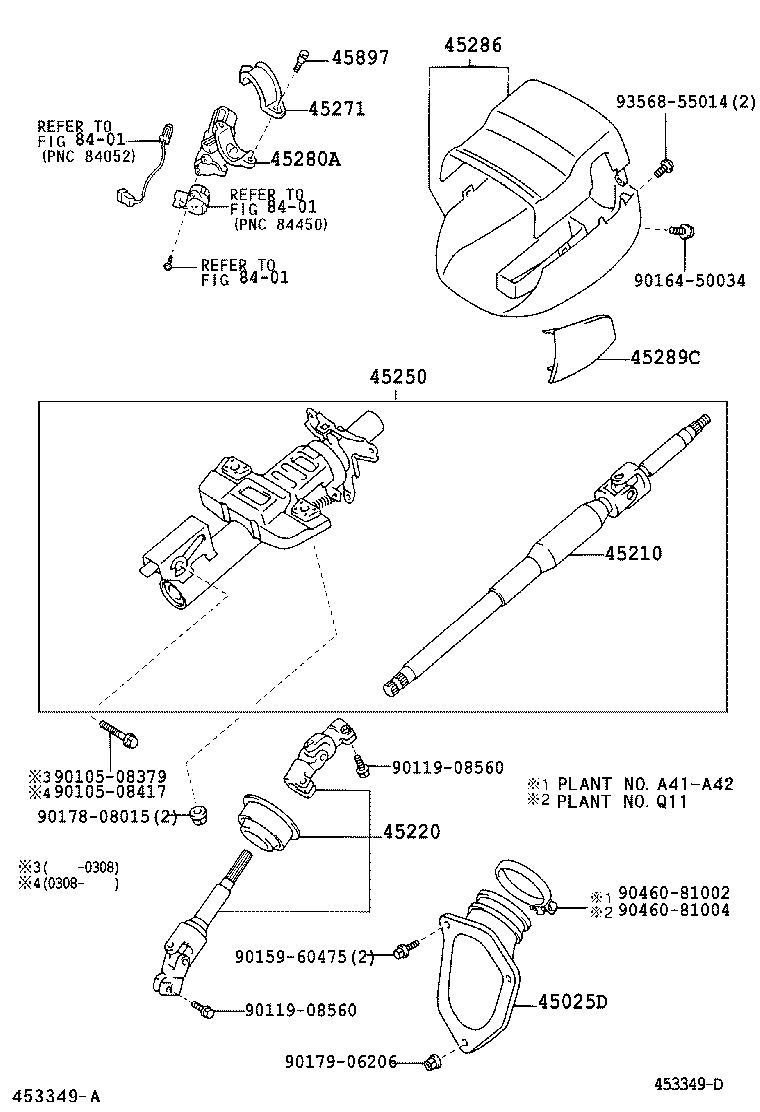

Figure 452817B 452817B 2001-07 → 2002-08 Figure 453349D 453349D 2002-08 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45202 Shaft Sub-assy, Steering Intermediate
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45289C Cover, Steering Column, Lwr NO.2
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
