Toyota Lexus ES300/330

2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

11 part groups · 2 illustrations

Illustrations

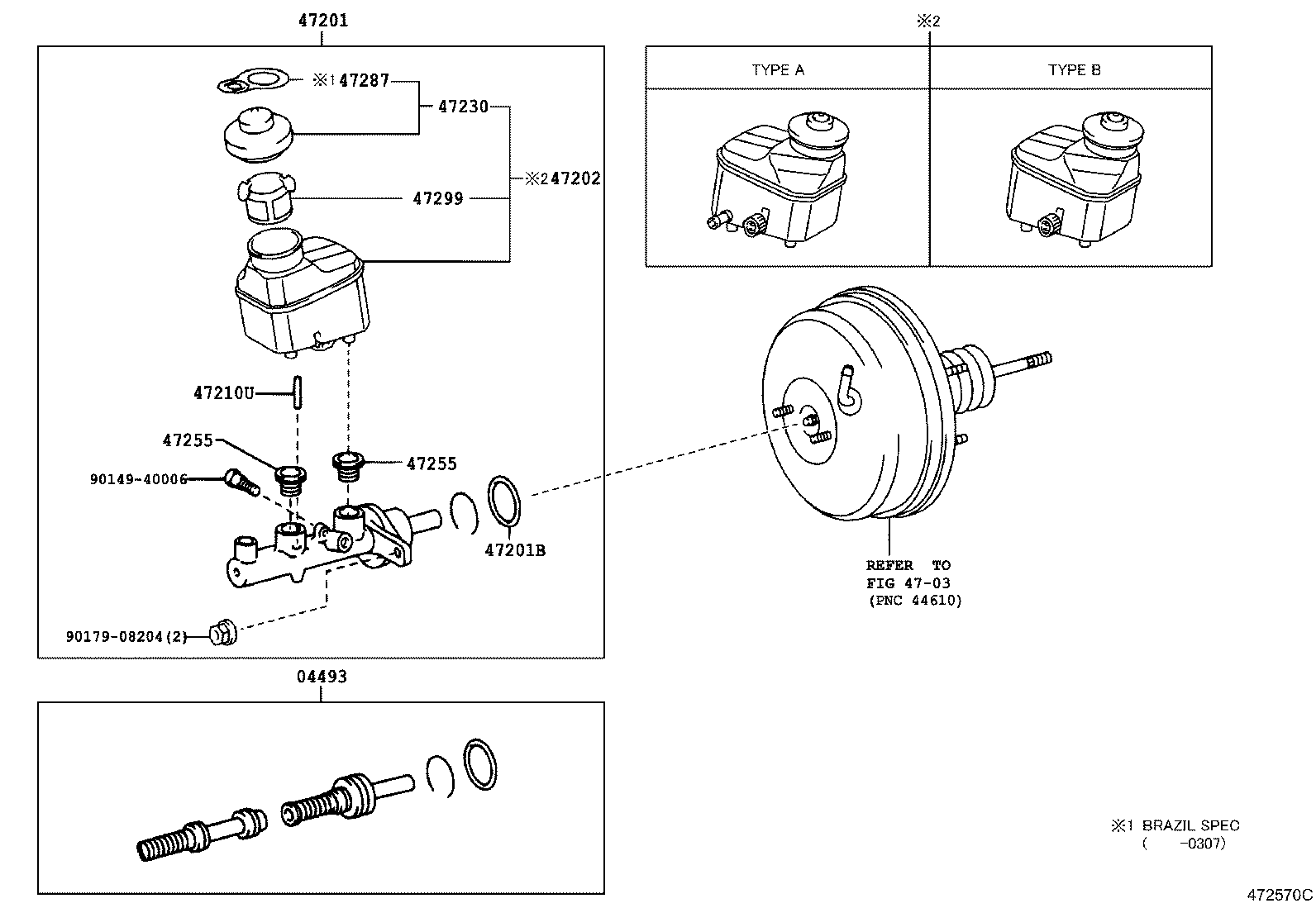

Figure 472568A 472568A 2001-07 → — Figure 472570C 472570C 2001-07 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47202 Reservoir Sub-assy, Brake Master Cylinder
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47287 Label, Brake Fluid Information
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
