Toyota Lexus ES300/330

2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

15 part groups · 2 illustrations

Illustrations

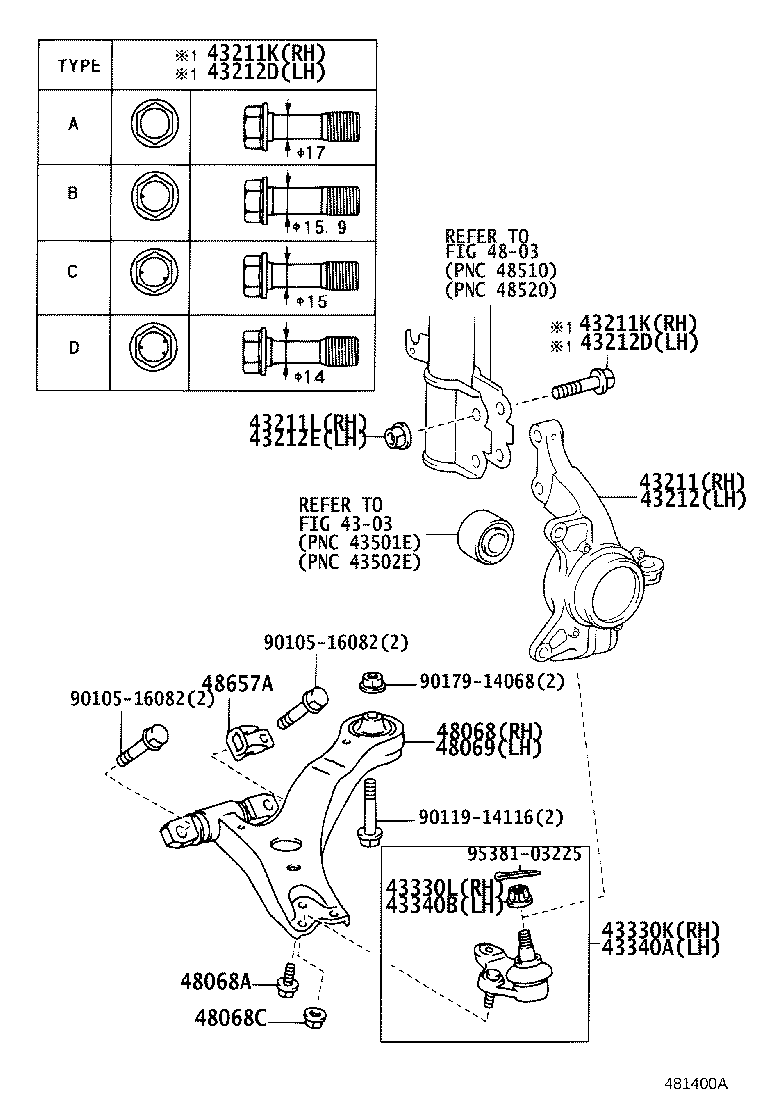

Figure 482866C 482866C 2001-07 → 2003-07 Figure 481400A 481400A 2003-07 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43211K Bolt (FOR STEERING KNUCKLE RH)
43211L Nut (FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212D Bolt (FOR STEERING KNUCKLE LH)
43212E Nut (FOR STEERING KNUCKLE LH)
43330K Joint Assy, Lower Ball, Front RH
43330L Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
43340A Joint Assy, Lower Ball, Front LH
43340B Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068A Bolt(FOR FRONT SUSPENSION LOWER ARM)
48068C Nut(FOR FRONT SUSPENSION LOWER ARM)
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48657A Stopper, Front Lower Arm Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
