Toyota Lexus ES300/330

2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

19 part groups · 2 illustrations

Illustrations

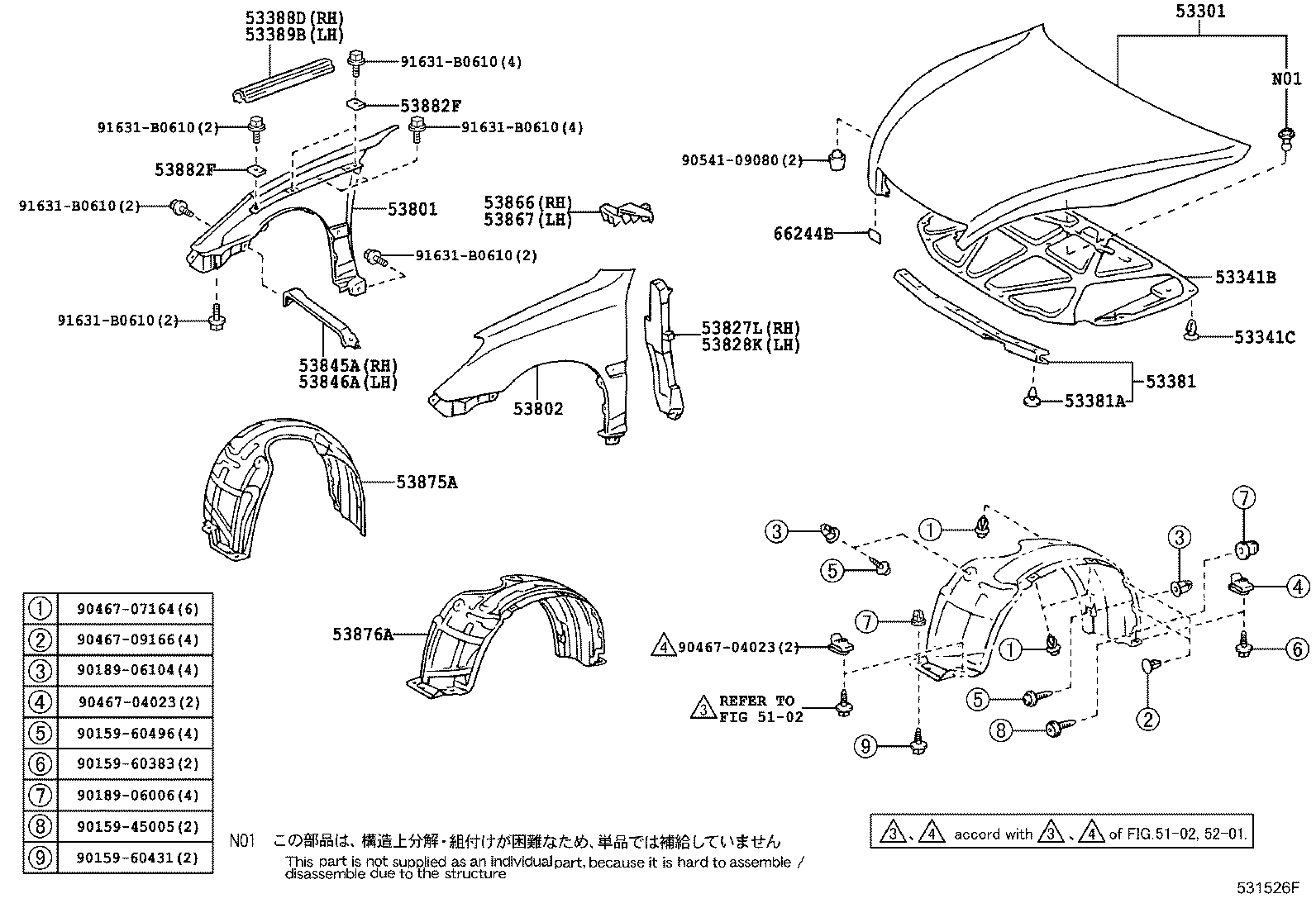

Figure 531143I 531143I 2001-07 → 2003-02 Figure 531526F 531526F 2003-02 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53845A Brace, Front Wheel Opening Apron, RH
53846A Brace, Front Wheel Opening Apron, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
66244B Protector, Hood
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
