Toyota Lexus ES300/330

2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States

Discontinued model Data version 2006-09

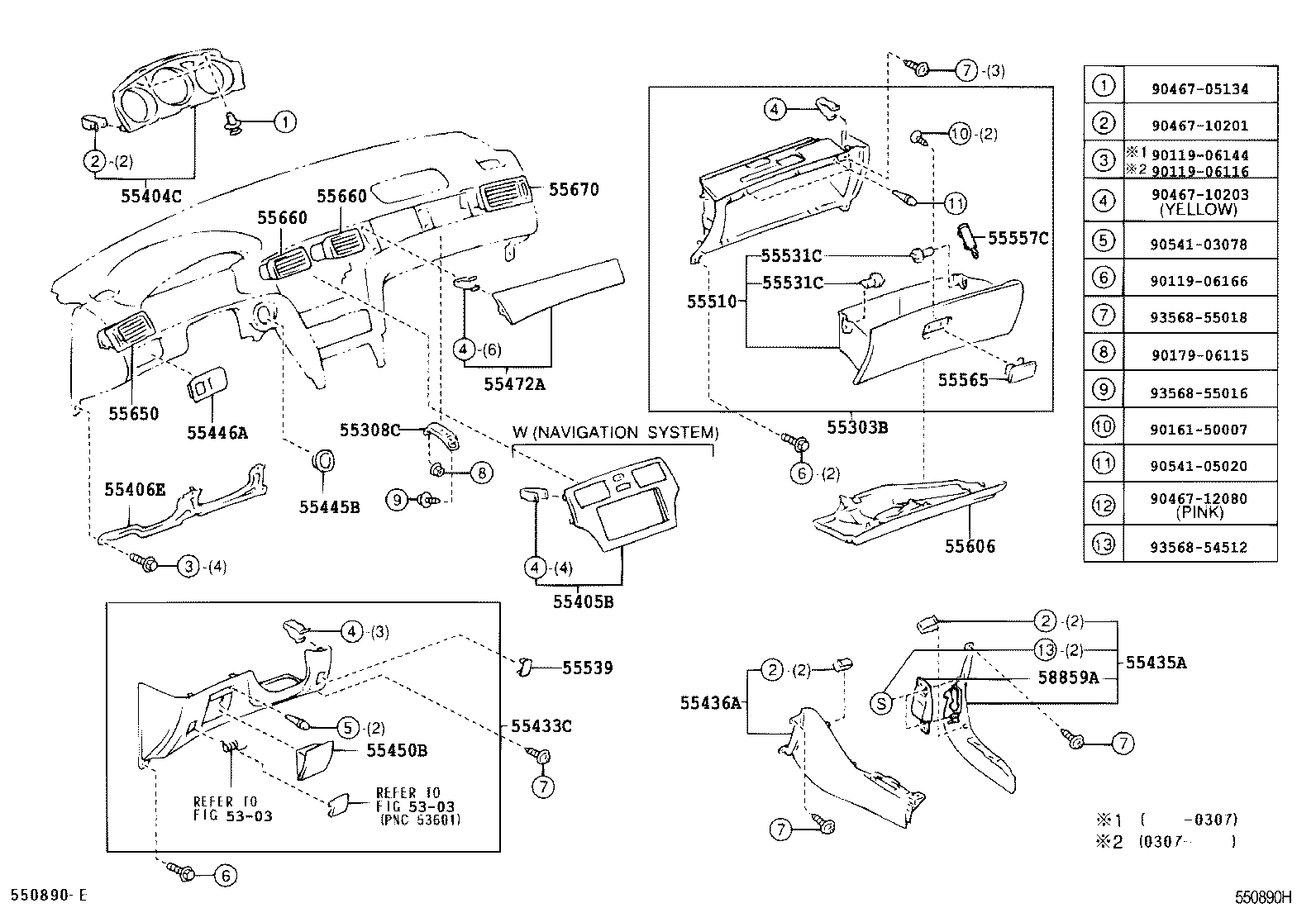

Instrument Panel & Glove Compartment

35 part groups · 2 illustrations

PNC	Description
55303B	Panel Sub-assy, Instrument, Lower
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55308C	Bracket Sub-assy, Instrument Panel, Center
55328	Pin, Instrument Panel, NO.1
55331	Reinforcement, Instrument Panel
55394B	Bolt, Instrument Panel
55401E	Pad Sub-assy, Instrument Panel Safety
55404C	Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55406E	Insert Sub-assy, Instrument Panel, Lower LH
55416A	Retainer, Meter Hood, NO.1
55427D	Retainer, Instrument Finish Panel, Lower, NO.1
55433C	Panel, Instrument Panel Finish, Lower LH
55435A	Panel, Instrument Panel Finish, End RH
55436A	Panel, Instrument Panel Finish, End LH
55445B	Plate, Instrument Panel Finish
55446A	Base, Switch Hole, NO.1
55450B	Box Assy, Coin
55458A	Cap, Instrument Panel Safety Pad
55472A	Moulding, Instrument Cluster, NO.2
55510	Door Assy, Glove Compartment
55531C	Pin, Glove Door Stopper
55539	Cover, Spare Switch Hole
55557C	Damper, Glove Compartment Door
55565	Handle, Glove Compartment Door Lock
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2
55981	Garnish, Defroster Nozzle, NO.1
58859A	Hook, Console Box Holder
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
