Toyota Lexus ES300/330

2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States

Discontinued model Data version 2006-09

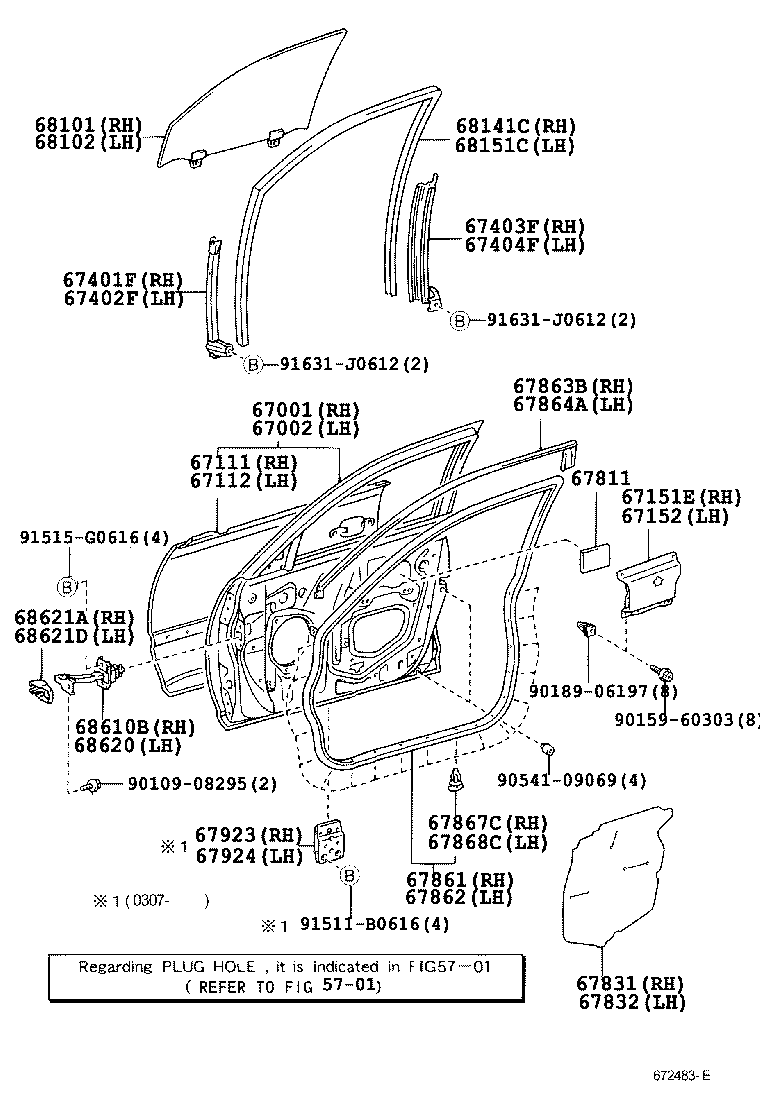

Front Door Panel & Glass

36 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67151E	Reinforcement Sub-assy, Front Door Inside Panel, RH
67152	Reinforcement Sub-assy, Front Door Inside Panel, LH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67601	Board Sub-assy, Front Door Trim, RH
67602	Board Sub-assy, Front Door Trim, LH
67743C	Seal, Front Door Trim
67811	Pad, Front Door Silencer
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67863B	Weatherstrip, Front Door, NO.2 RH
67864A	Weatherstrip, Front Door, Upper, LH
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67923	Cushion, Front Door Stiffener, NO.1
67924	Cushion, Front Door Stiffener, NO.2
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68151C	Run, Front Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH
68621A	Cover, Front Door Check, RH
68621D	Cover, Front Door Check, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
