Toyota Lexus ES300/330
2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States
Discontinued model
Data version 2006-09

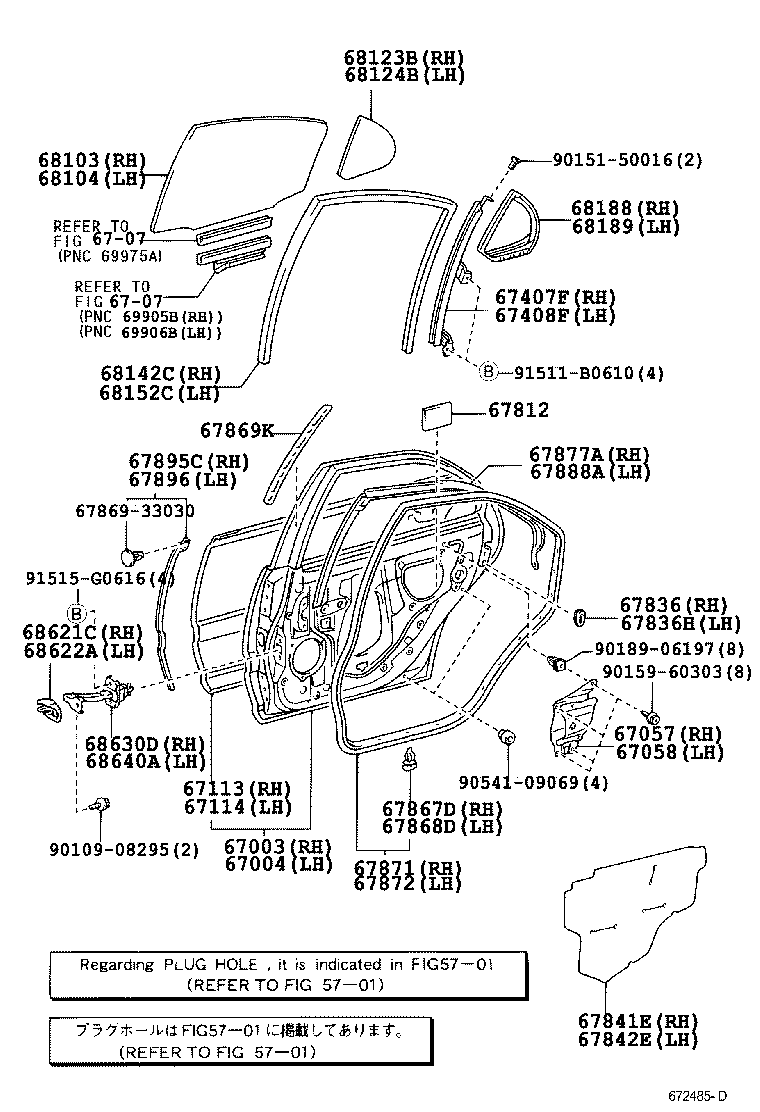

Rear Door Panel & Glass
39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67057 | Reinforce Sub-assy, Rear Door Inside Panel, RH |
| 67058 | Reinforce Sub-assy, Rear Door Inside Panel, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67745B | Seal, Rear Door Trim, RH |
| 67812 | Pad, Rear Door Silencer |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67836H | Cover, Rear Door Lock Child Protection, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67869K | Clip, Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67877A | Retainer, Rear Door Glass Front Weatherstrip, RH |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68621C | Cover, Rear Door Check, RH |
| 68622A | Cover, Rear Door Check, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
