Front Seat & Seat Track

68 part groups · 7 illustrations

Illustrations

712145A 2001-07 → 2003-07

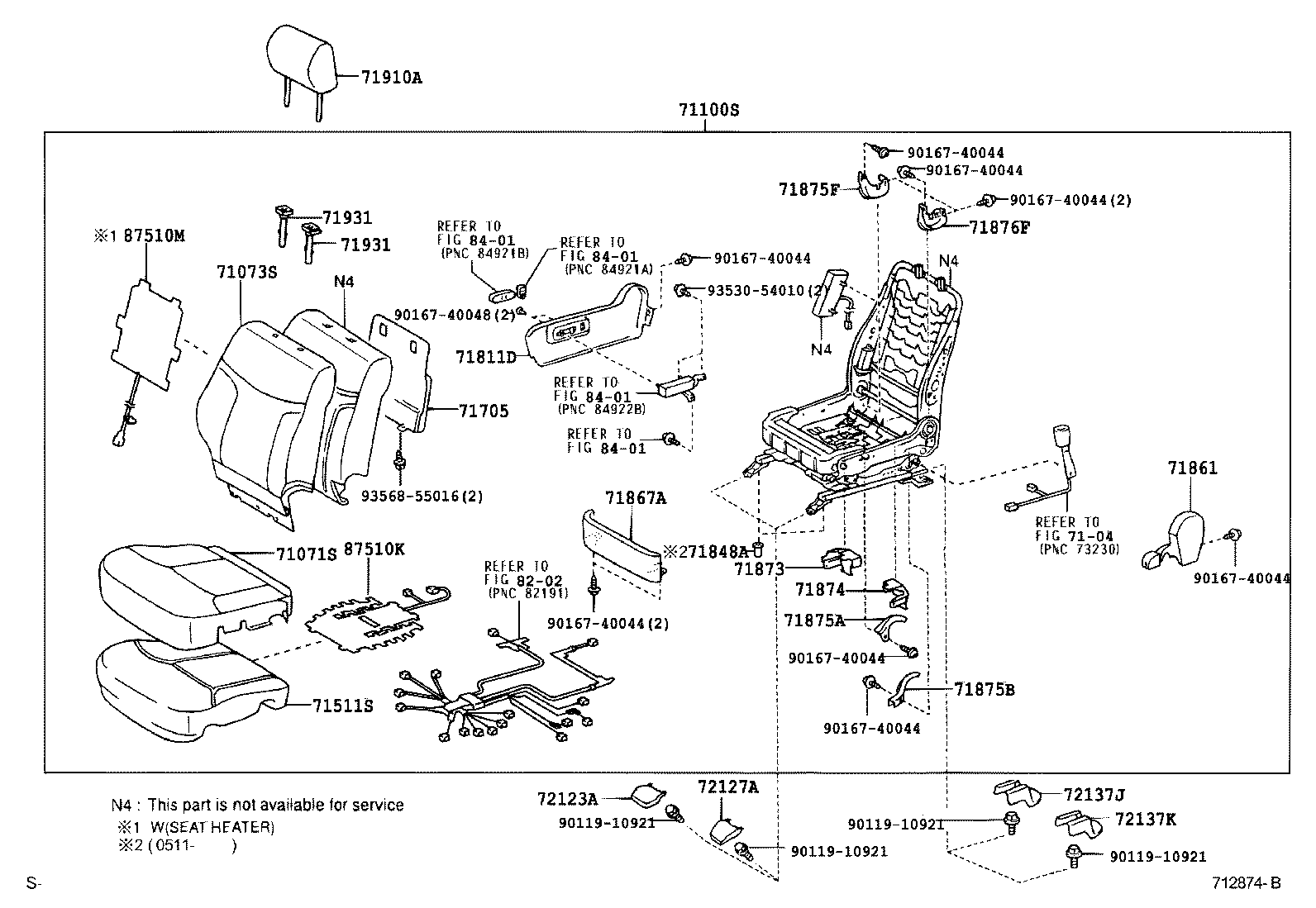

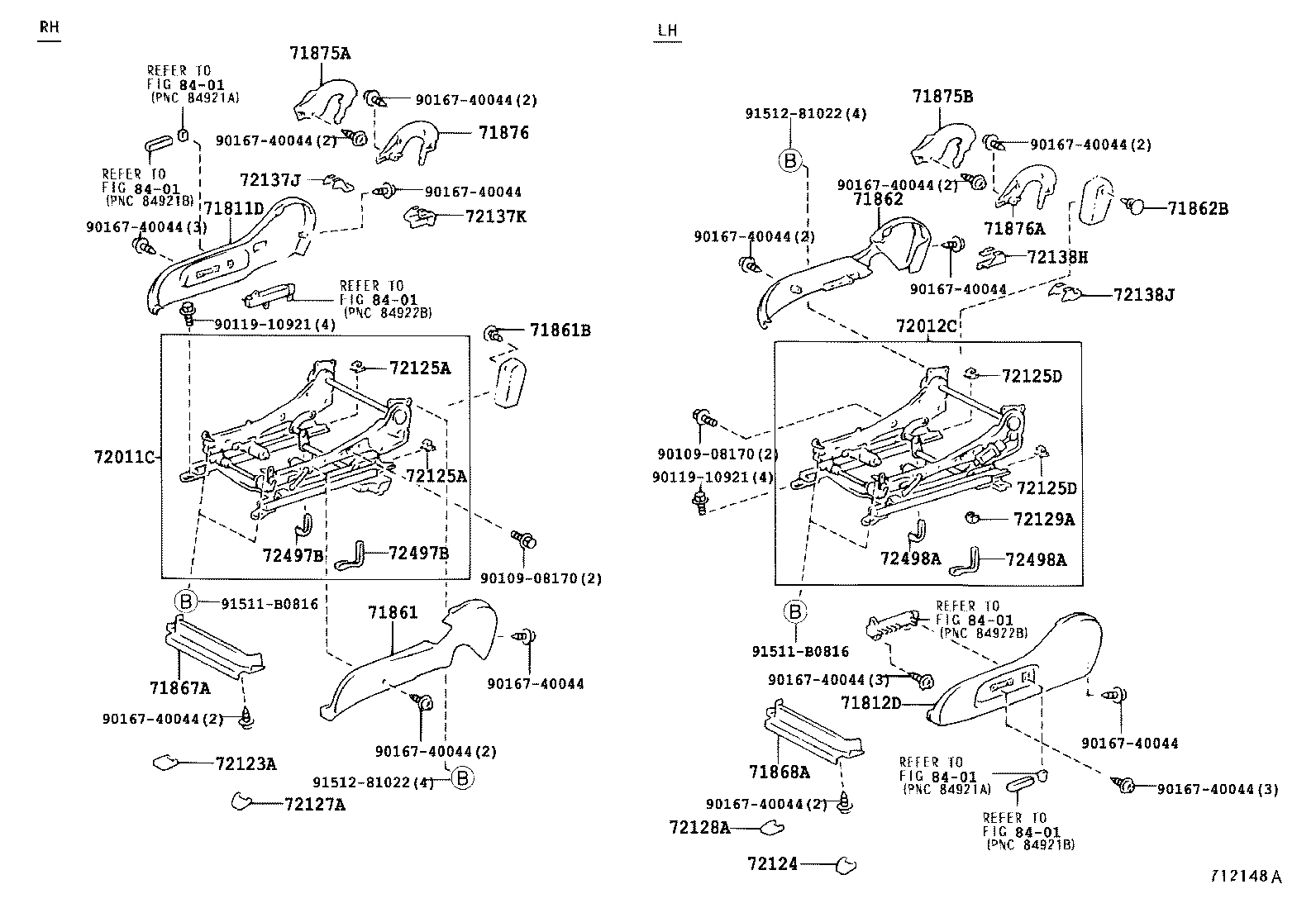

712148A 2001-07 → 2003-07

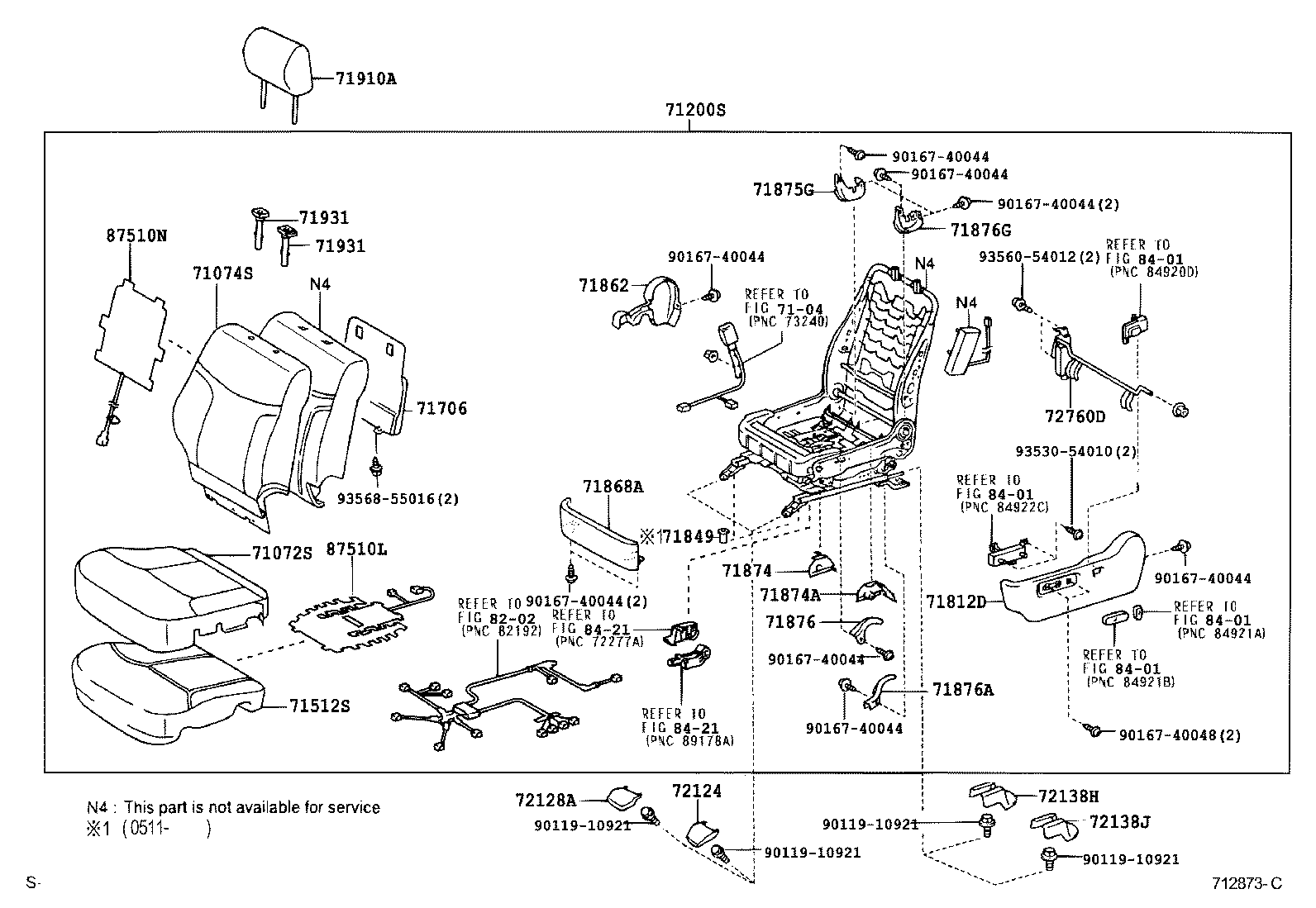

712873C 2003-07 → 2004-06

712874B 2003-07 → 2004-06

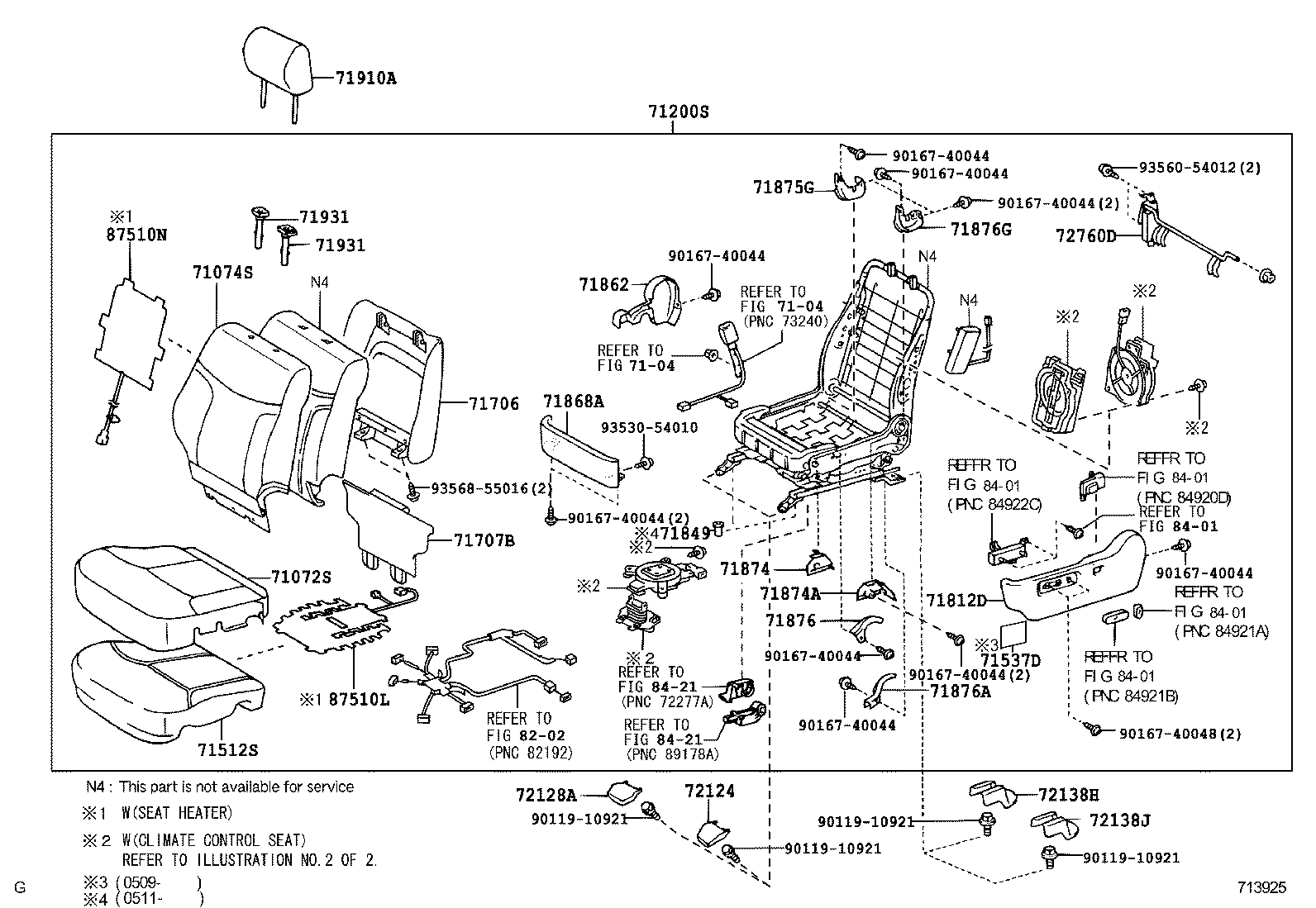

713925D 2004-06 → 2006-03

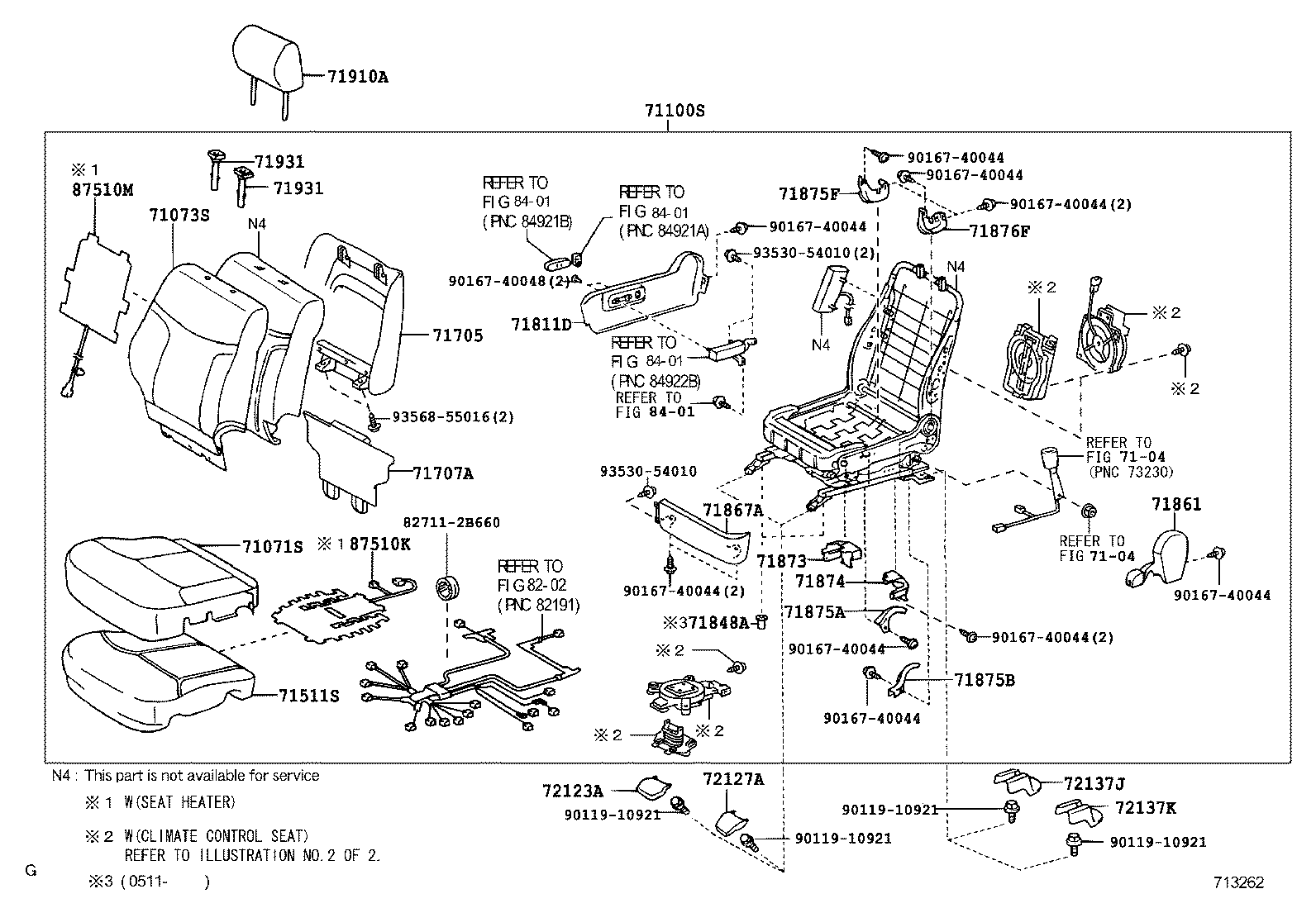

713262G 2004-06 → 2006-03

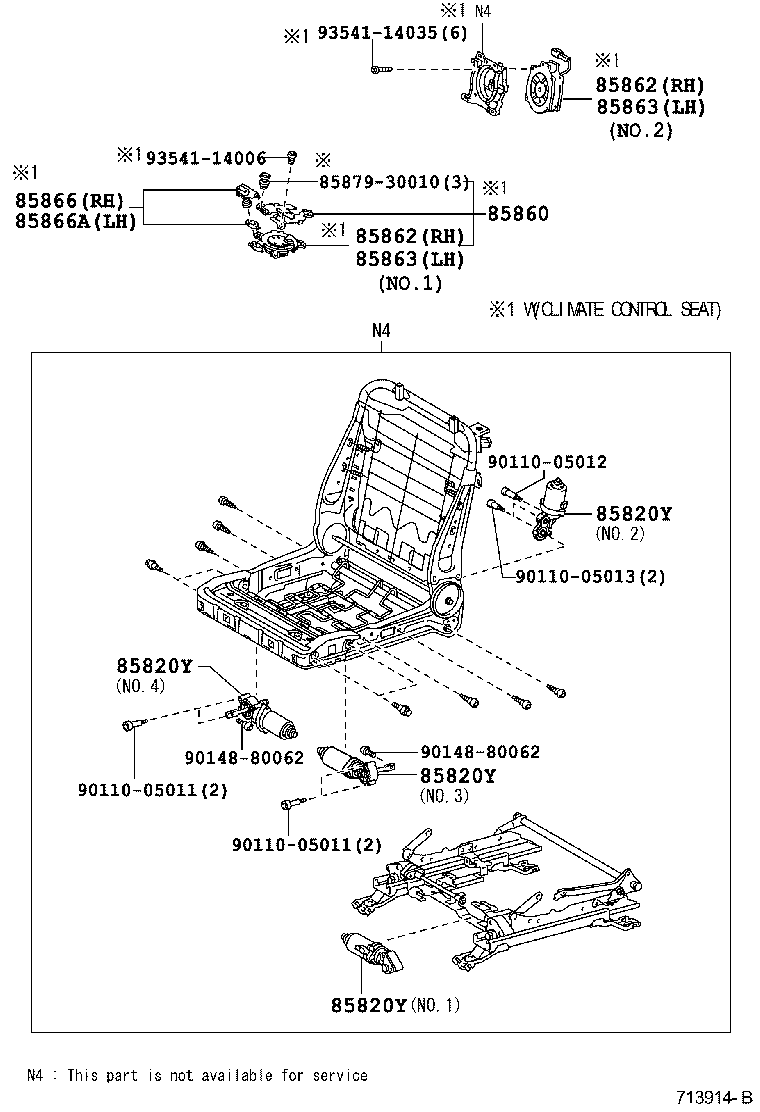

713914B 2004-06 → 2006-03

Part groups

PNC	Description
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S	Seat Assy, Front RH
71200S	Seat Assy, Front LH
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537D	Protector, Front Seat Cushion Edge, LH
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71707A	Cover Sub-assy, Front Seatback Board
71707B	Cover Sub-assy, Front Seatback Board
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71861B	Clip(FOR FRONT SEAT SHIELD, RH)
71862	Shield, Front Seat Cushion, Inner LH
71862B	Clip(FOR FRONT SEAT SHIELD, LH)
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875F	Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72011C	Adjuster Sub-assy, Front Seat, RH
72012C	Adjuster Sub-assy, Front Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72125D	Cover, Seat Track, Upper Rear NO.2
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72129A	Protector, Seat Track Lower Rail, NO.2
72137J	Cover, Front Seat Track, RH Rear Outer
72137K	Cover, Front Seat Track, RH Rear Inner
72138H	Cover, Front Seat Track, LH Rear Inner
72138J	Cover, Front Seat Track, LH Rear Outer
72497B	Cover, Vertical Adjuster Bracket, RH
72498A	Cover, Vertical Adjuster Bracket, LH
72760D	Adjuster Assy, Lumbar Support, LH
85820Y	Motor Assy, Power Seat
85860	Blower Assy, Seat Cushion Climate Control
85862	Blower, Seat Climate Control, RH
85863	Blower, Seat Climate Control, LH
85866	Duct, Seat Cushion Climate Control, RH
85866A	Duct, Seat Cushion Climate Control, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
