Toyota Lexus ES300/330
2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States
Discontinued model
Data version 2006-09
Fuel Tank & Tube

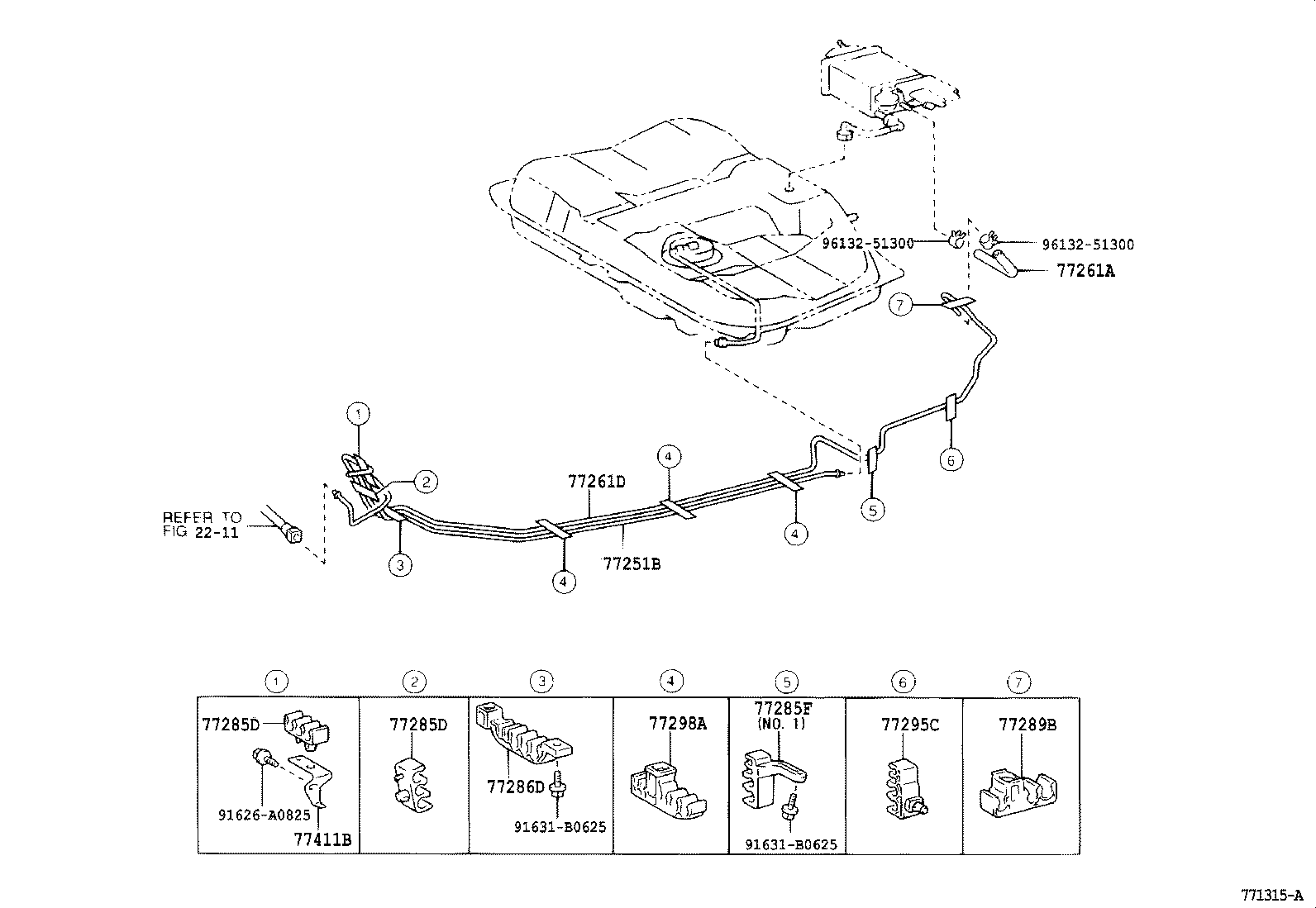

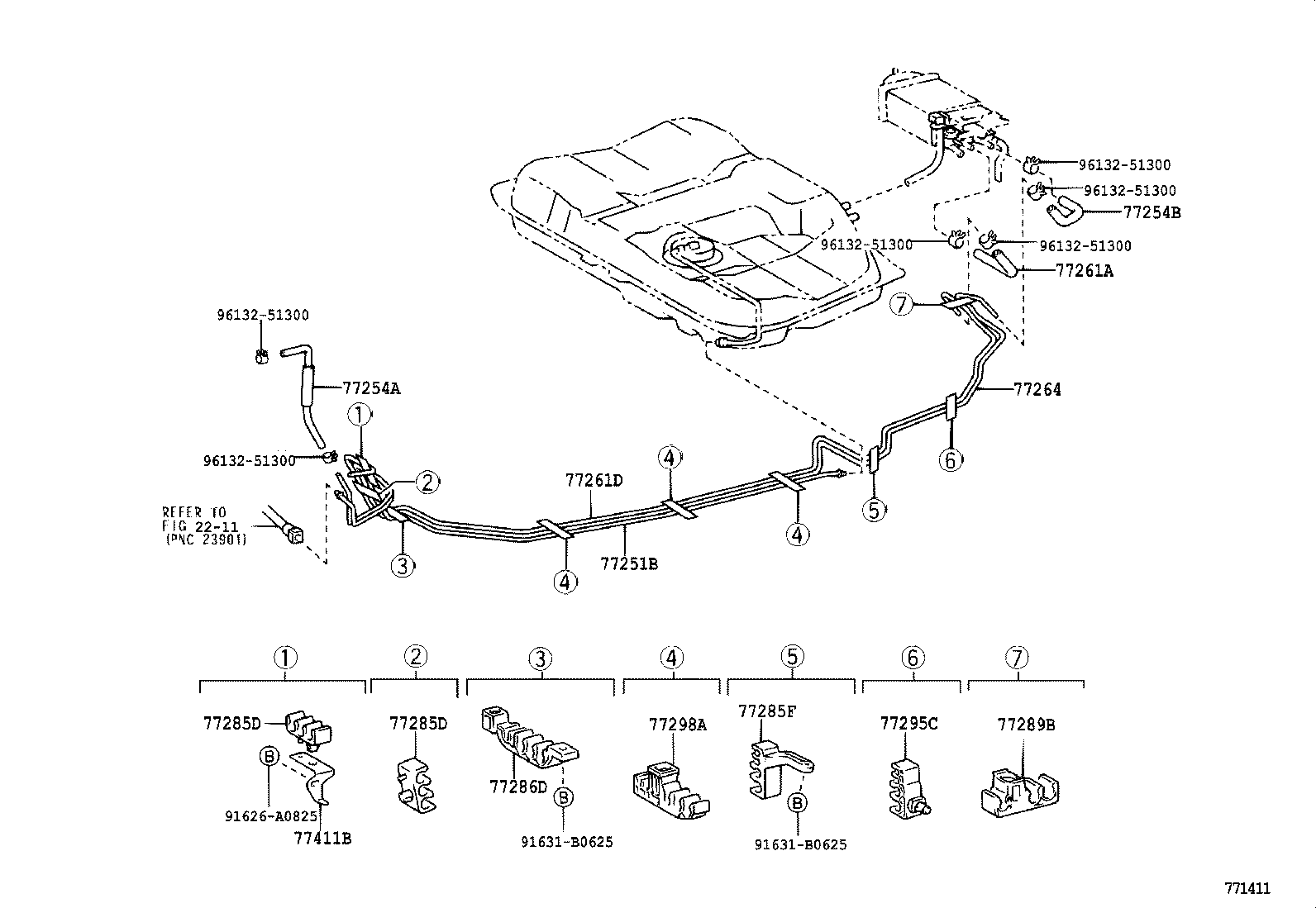

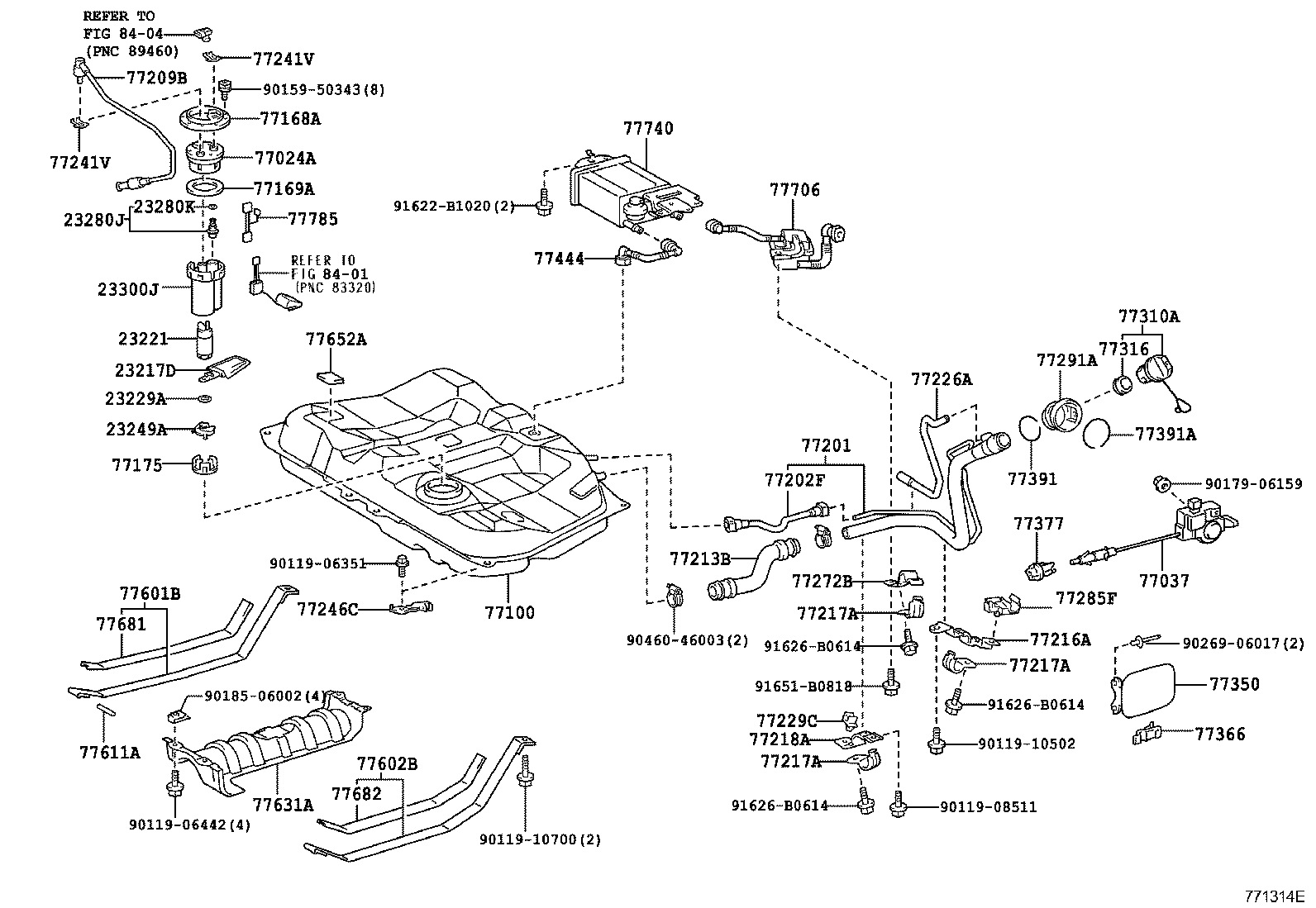

69 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23249A | Rubber, Cushion(FOR FUEL PUMP) |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23300J | Filter Assy, Fuel |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77177 | Gasket, Check Valve |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202F | Tube, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77229C | Clamp, Breather Tube |
| 77241V | Clip, Tube Joint |
| 77246C | Support, Fuel Main Tube |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77261A | Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77264 | Tube, Canister TO Front Side Member |
| 77269A | Hose, Fuel Tank Breather |
| 77272B | Support, Breather Tube, NO.1 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77295C | Grommet, Fuel Tube |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77340A | Valve Assy, Fuel Cut Off W/Tube |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77390D | Valve Assy, Fuel Tank Over Fill Check |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77393 | Protector, Check Valve |
| 77394 | Hose, Valve TO Fuel Filler Pipe |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77444 | Hose, Fuel Tank Vent |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77643A | Protector, Fuel Tank, NO.3 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77682 | Seat, Fuel Tank Band, LH |
| 77706 | Filter Sub-assy, Charcoal Canister |
| 77740 | Canister Assy, Charcoal |
| 77785 | Harness, Fuel Pump |
