Toyota Lexus ES300/330

2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

8 part groups · 2 illustrations

Illustrations

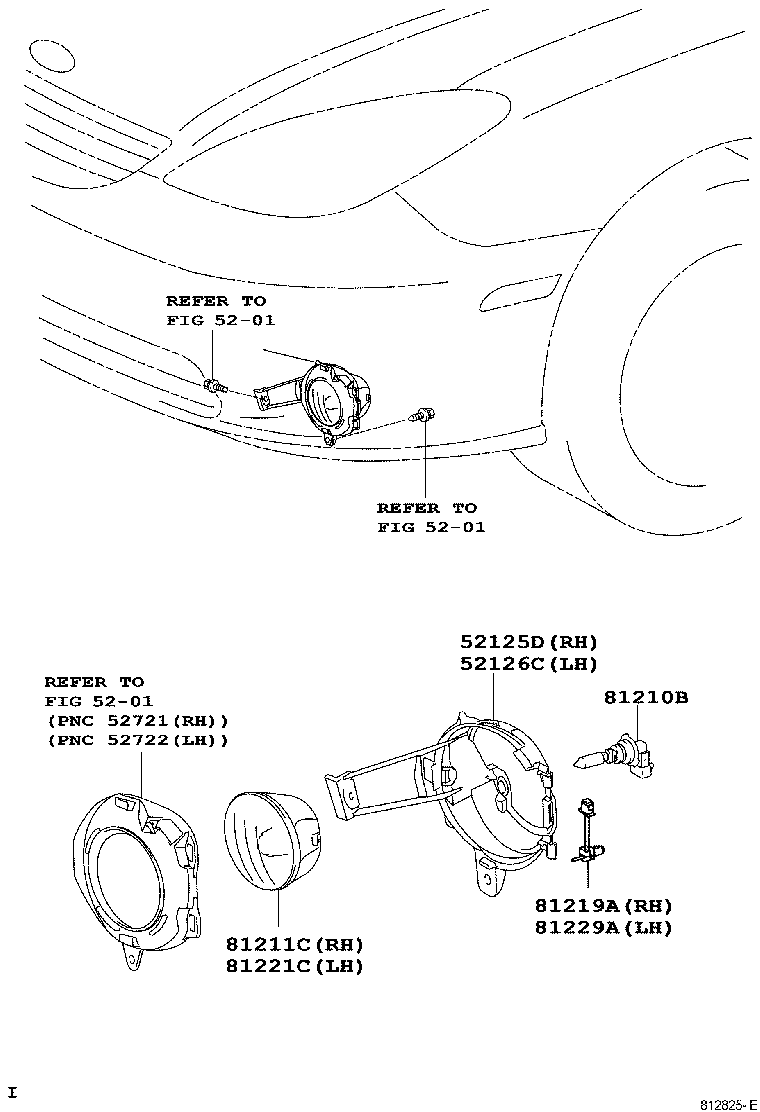

Figure 811849 811849 2001-07 → 2004-06 Figure 812825E 812825E 2004-06 → —

Part groups

PNCDescription
52125D Bracket, Fog Lamp Mounting, RH
52126C Bracket, Fog Lamp Mounting, LH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81212C Cover, Fog Lamp
81219A Bracket, Fog Lamp, RH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
