Toyota Lexus ES300/330
2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States
Discontinued model
Data version 2006-09

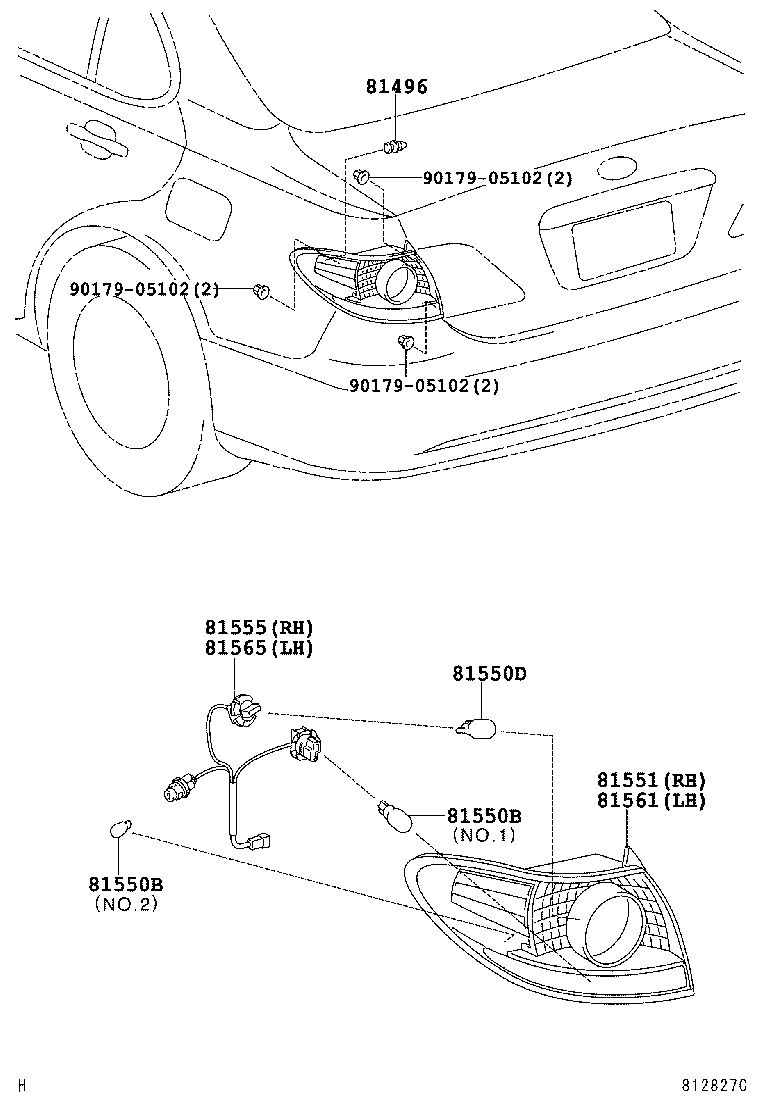

Rear Combination Lamp
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81550D | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555B | Socket Plug, NO.1 |
| 81555C | Socket Plug, NO.2 |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
