Toyota Lexus ES300/330

2001-07 → 2006-03 · chassis MCV3# · catalogue 282470 · United States

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

6 part groups · 2 illustrations

Illustrations

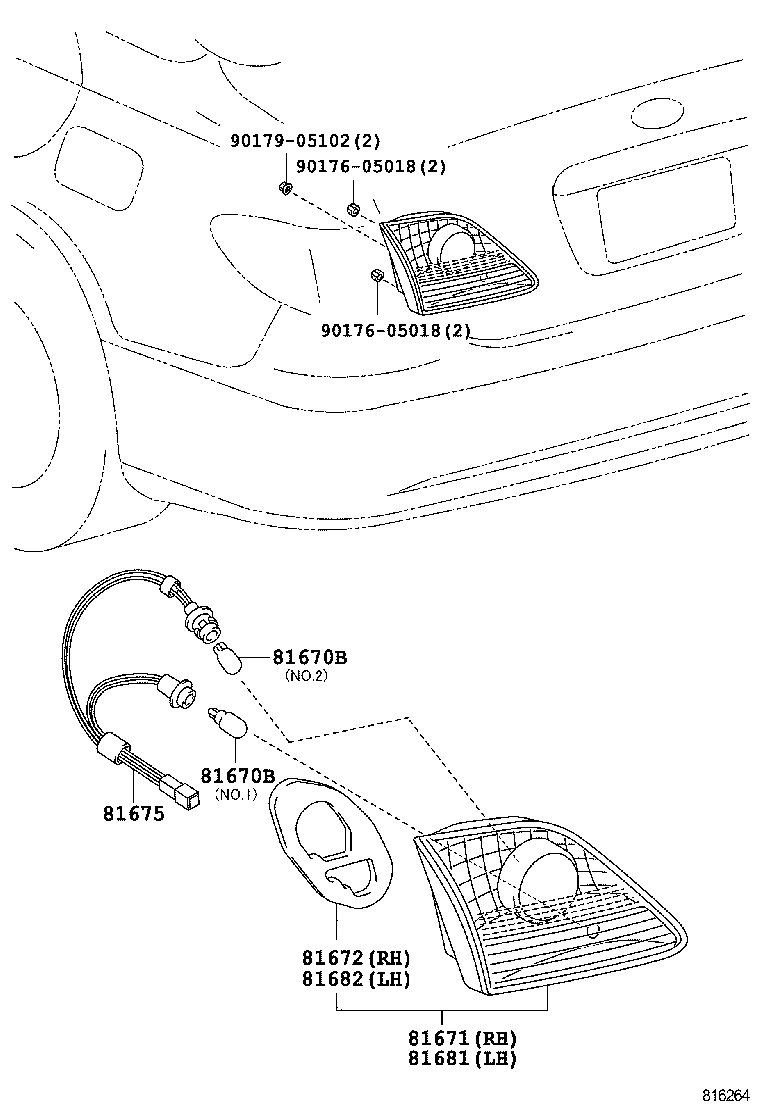

Figure 813240 813240 2001-07 → 2004-06 Figure 816264 816264 2004-06 → —

Part groups

PNCDescription
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81672 Gasket, Back-up Lamp Lens, RH
81675 Socket & Wire, Back-up Lamp
81681 Lens, Back-up Lamp, LH
81682 Gasket, Back UP Lamp Lens, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
