Toyota Lexus ES350
2006-03 → 2012-06 · chassis GSV40 · catalogue 282480 · United States
Supported model
Data version 2012-04

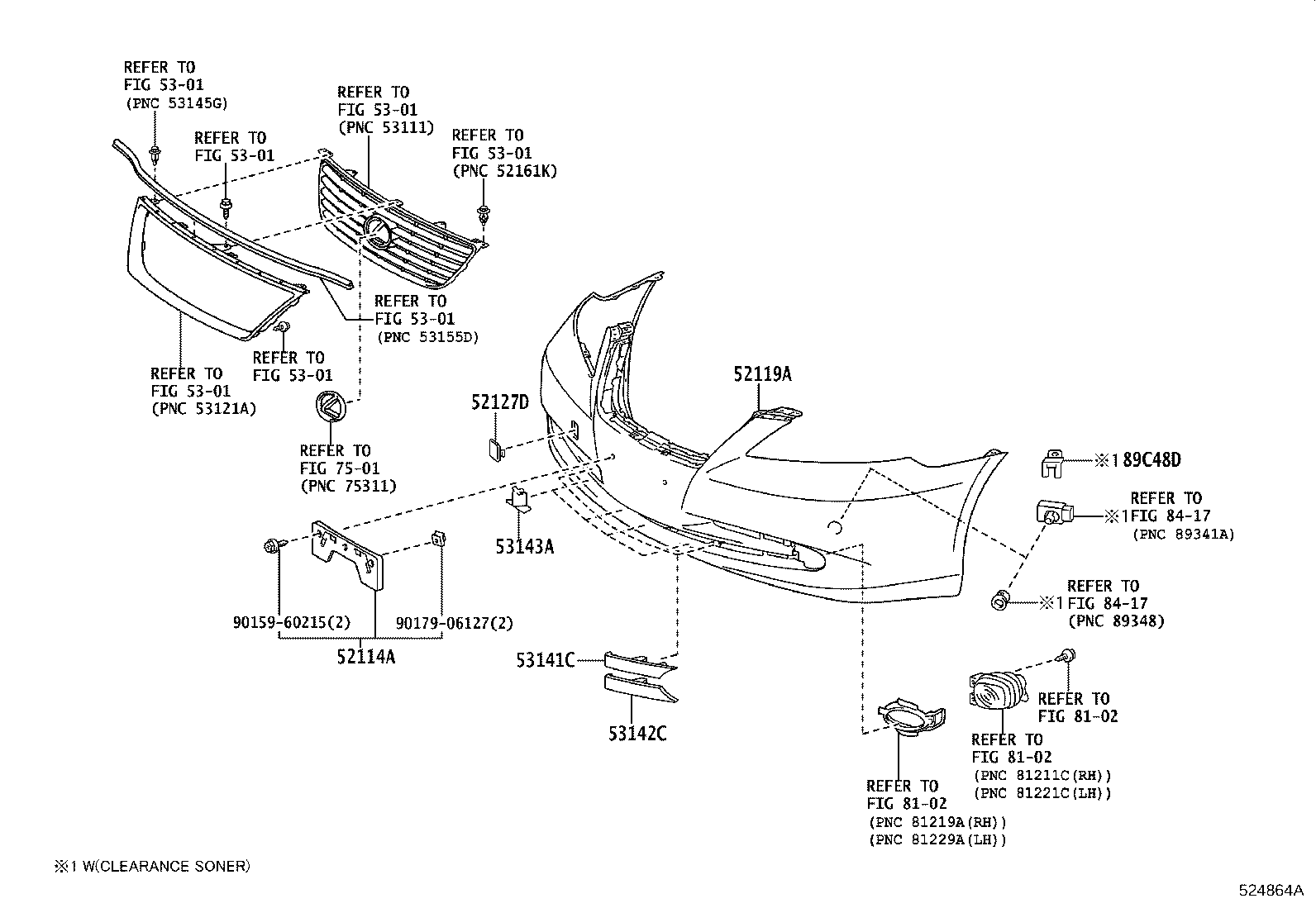

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-33180 |
Bracket, Front Bumper Extension Mounting
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 52114-33200 note |
Bracket, Front Bumper Extension Mounting
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 52114-33200 note |
Bracket, Front Bumper Extension Mounting
2006-03 → 2007-07
ended
|
GSV40 | — | |
| 52114-33250 |
Bracket, Front Bumper Extension Mounting
2009-08 → —
|
GSV40 | — | |
| 52114-33270 note |
Bracket, Front Bumper Extension Mounting
2009-08 → —
|
GSV40 | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-33945 note |
Cover, Front Bumper
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 52119-33950 note |
Cover, Front Bumper
2006-03 → 2007-07
ended
|
GSV40 | — | |
| 52119-33950 note |
Cover, Front Bumper
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 52119-33972 note |
Cover, Front Bumper
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 52119-33974 note |
Cover, Front Bumper
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 52119-33974 note |
Cover, Front Bumper
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 52128-33908 |
Cover, Front Bumper Hole, RH
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 52128-33911 |
Cover, Front Bumper Hole, RH
2009-08 → —
|
GSV40 | — | |
| 53141C — Garnish, Radiator Grille | ||||
| 53141-33040 note |
Garnish, Radiator Grille
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 53142-33040 note |
Garnish, Radiator Grille
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 53141-33100 |
Garnish, Radiator Grille
2009-08 → —
|
GSV40 | — | |
| 53142C — Garnish, Radiator Grille, NO.2 | ||||
| 53143-33030 note |
Garnish, Radiator Grille, NO.2
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 53148-33010 note |
Garnish, Radiator Grille, NO.2
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 53142-33110 |
Garnish, Radiator Grille, NO.2
2009-08 → —
|
GSV40 | — | |
| 53143A — Garnish, Radiator Grille, NO.3 | ||||
| 53144-33030 |
Garnish, Radiator Grille, NO.3
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 89C48D — Retainer, Ultrasonic Sensor, Front Corner | ||||
| 89348-33020 note |
Retainer, Ultrasonic Sensor, Front Corner
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 89348-33020 note |
Retainer, Ultrasonic Sensor, Front Corner
2009-08 → 2012-06
ended
|
GSV40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
