Toyota Lexus ES350
2006-03 → 2012-06 · chassis GSV40 · catalogue 282480 · United States
Supported model
Data version 2012-04

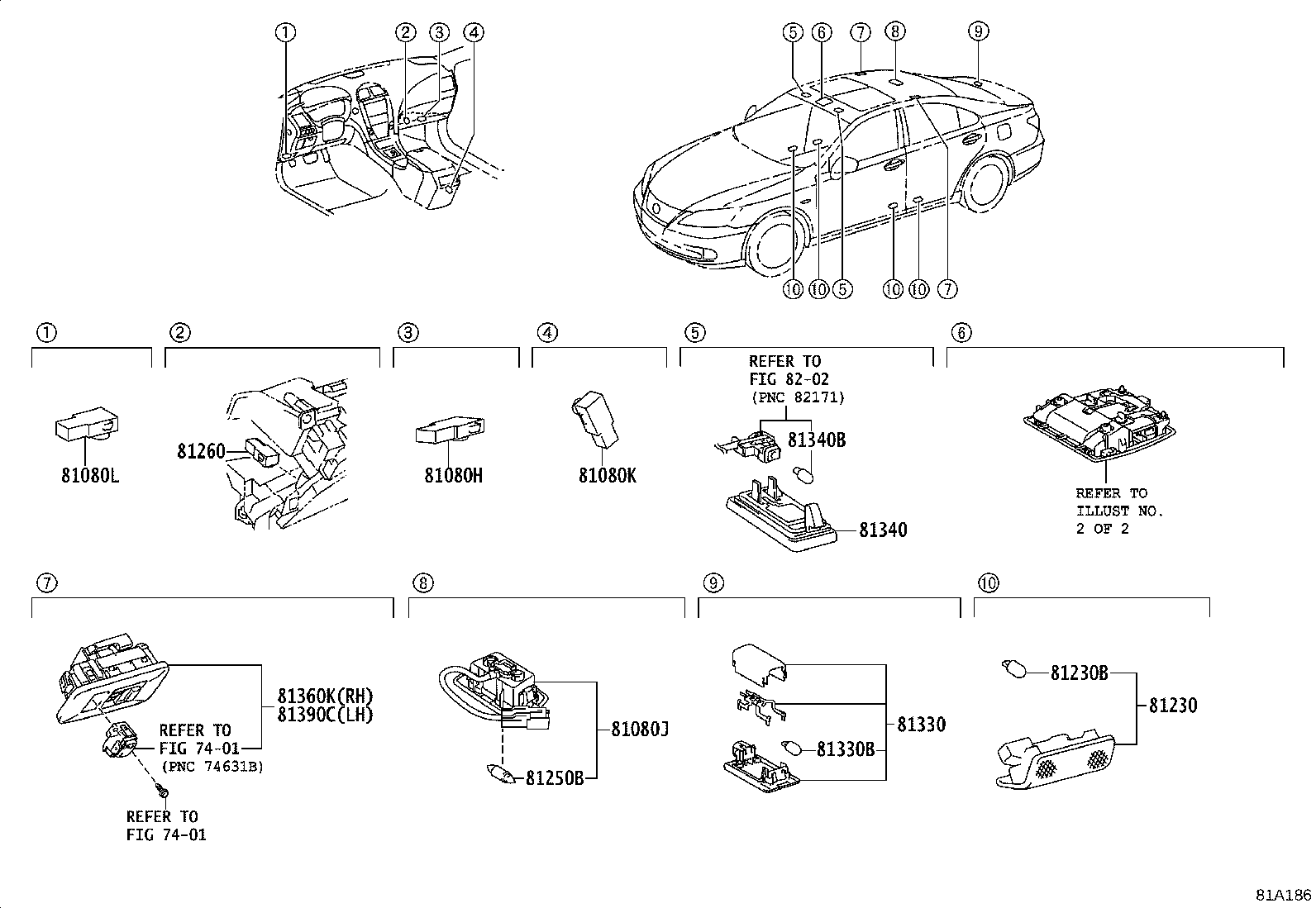

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81080H — Lamp Assy, Interior Illumination, NO.1 RH | ||||
| 81080-33020 |
Lamp Assy, Interior Illumination, NO.1 RH
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 81080-33020 |
Lamp Assy, Interior Illumination, NO.1 RH
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81080J — Lamp Assy, Interior Illumination, NO.1 | ||||
| 81080-33030-A0 note |
Lamp Assy, Interior Illumination, NO.1
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81080-33030-B0 note |
Lamp Assy, Interior Illumination, NO.1
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81080K — Lamp Assy, Console Box Illumination | ||||
| 81080-48010 |
Lamp Assy, Console Box Illumination
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 81080-48010 |
Lamp Assy, Console Box Illumination
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81080L — Lamp Assy, Interior Illumination, NO.1 LH | ||||
| 81080-48010 |
Lamp Assy, Interior Illumination, NO.1 LH
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 81080-48010 |
Lamp Assy, Interior Illumination, NO.1 LH
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81230 — Lamp Assy, Courtesy | ||||
| 81230-47010 |
Lamp Assy, Courtesy
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 81230-47010 |
Lamp Assy, Courtesy
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81230B — Bulb(FOR COURTESY LAMP) | ||||
| 90981-12010 note |
Bulb(FOR COURTESY LAMP)
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 90981-12010 note |
Bulb(FOR COURTESY LAMP)
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81250B — Bulb, Room Lamp, NO.2 | ||||
| 99132-13050 note |
Bulb, Room Lamp, NO.2
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81260 — Lamp Assy, Glove Box | ||||
| 81080-48010 |
Lamp Assy, Glove Box
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 81080-48010 |
Lamp Assy, Glove Box
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81330 — Lamp Assy, Luggage Compartment, NO.1 | ||||
| 81250-33030 |
Lamp Assy, Luggage Compartment, NO.1
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 81250-33030 |
Lamp Assy, Luggage Compartment, NO.1
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81330B — Bulb, Luggage Compartment Lamp | ||||
| 90981-12010 note |
Bulb, Luggage Compartment Lamp
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 90981-12010 note |
Bulb, Luggage Compartment Lamp
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81340 — Lamp Assy, Vanity | ||||
| 81340-30100-A0 note |
Lamp Assy, Vanity
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 81340-30100-B0 note |
Lamp Assy, Vanity
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 81340-30100-A4 note |
Lamp Assy, Vanity
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81340-30100-B0 note |
Lamp Assy, Vanity
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81340B — Bulb (FOR VANITY LAMP) | ||||
| 90981-11062 note |
Bulb (FOR VANITY LAMP)
2006-03 → 2009-08
ended
|
GSV40 | — | |
| 90981-11062 note |
Bulb (FOR VANITY LAMP)
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81360K — Lamp Assy, Spot, RH | ||||
| 81360-33010-A0 note |
Lamp Assy, Spot, RH
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81360-33010-B0 note |
Lamp Assy, Spot, RH
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81390C — Lamp Assy, Spot, LH | ||||
| 81390-33010-A0 note |
Lamp Assy, Spot, LH
2009-08 → 2012-06
ended
|
GSV40 | — | |
| 81390-33010-B0 note |
Lamp Assy, Spot, LH
2009-08 → 2012-06
ended
|
GSV40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
