Toyota Lexus ES350
2006-03 → 2012-06 · chassis GSV40 · catalogue 282480 · United States
Supported model
Data version 2012-04

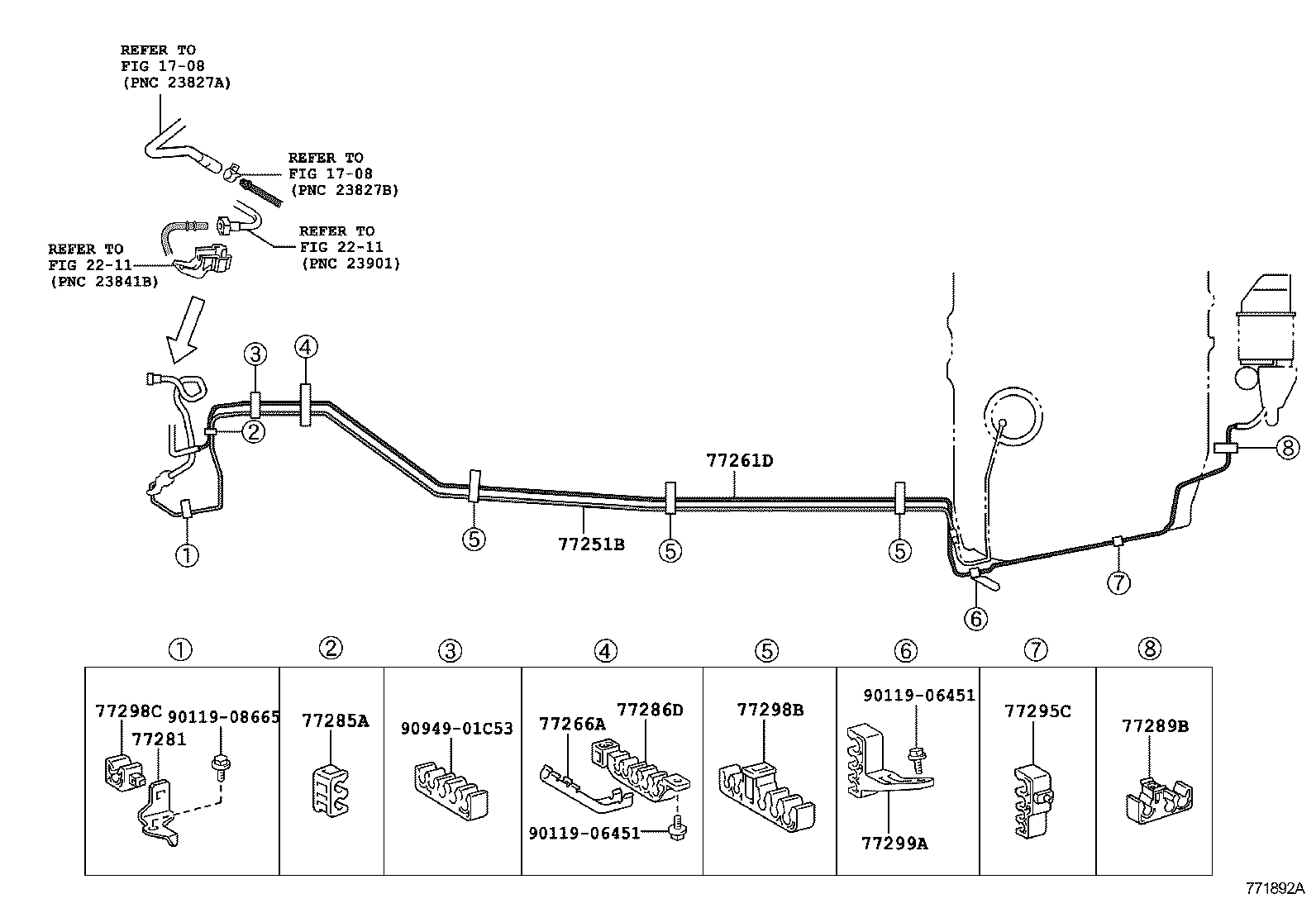

Fuel Tank & Tube
57 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23249A | Rubber, Cushion(FOR FUEL PUMP) |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23300J | Filter Assy, Fuel |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77100 | Tank Assy, Fuel |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77216C | Support, Fuel Tank Filler Pipe NO.3 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77217C | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77229C | Clamp, Breather Tube |
| 77229E | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77246C | Support, Fuel Main Tube |
| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77285A | Support, Fuel Return And Main Tube |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77295C | Grommet, Fuel Tube |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77444 | Hose, Fuel Tank Vent |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77682 | Seat, Fuel Tank Band, LH |
| 77706 | Filter Sub-assy, Charcoal Canister |
| 77740 | Canister Assy, Charcoal |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
