Toyota Lexus ES350

2006-03 → 2012-06 · chassis GSV40 · catalogue 282480 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

55 part groups · 9 illustrations

Illustrations

Figure 824821J 824821J 2006-03 → — Figure 824822D 824822D 2006-03 → — Figure 824823B 824823B 2006-03 → — Figure 824824A 824824A 2006-03 → — Figure 824859E 824859E 2006-03 → — Figure 824826 824826 2006-03 → — Figure 826657A 826657A 2006-03 → — Figure 824828B 824828B 2006-03 → — Figure 824940C 824940C 2006-03 → —

Part groups

PNCDescription

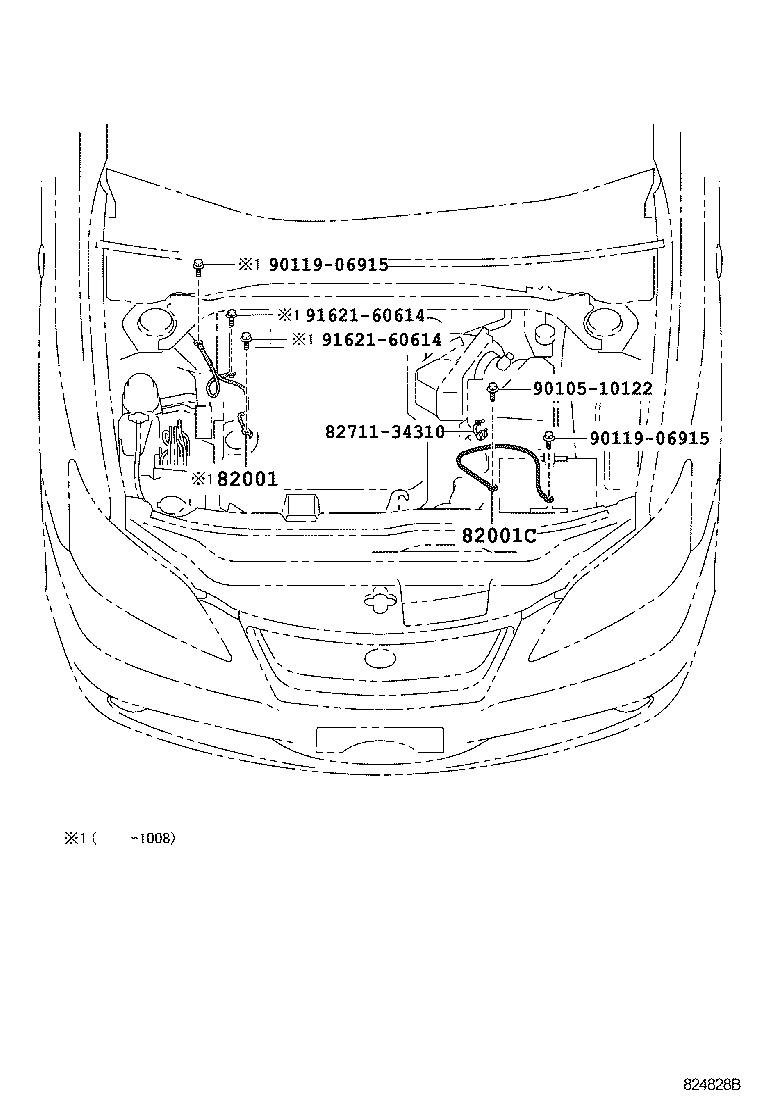

82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main

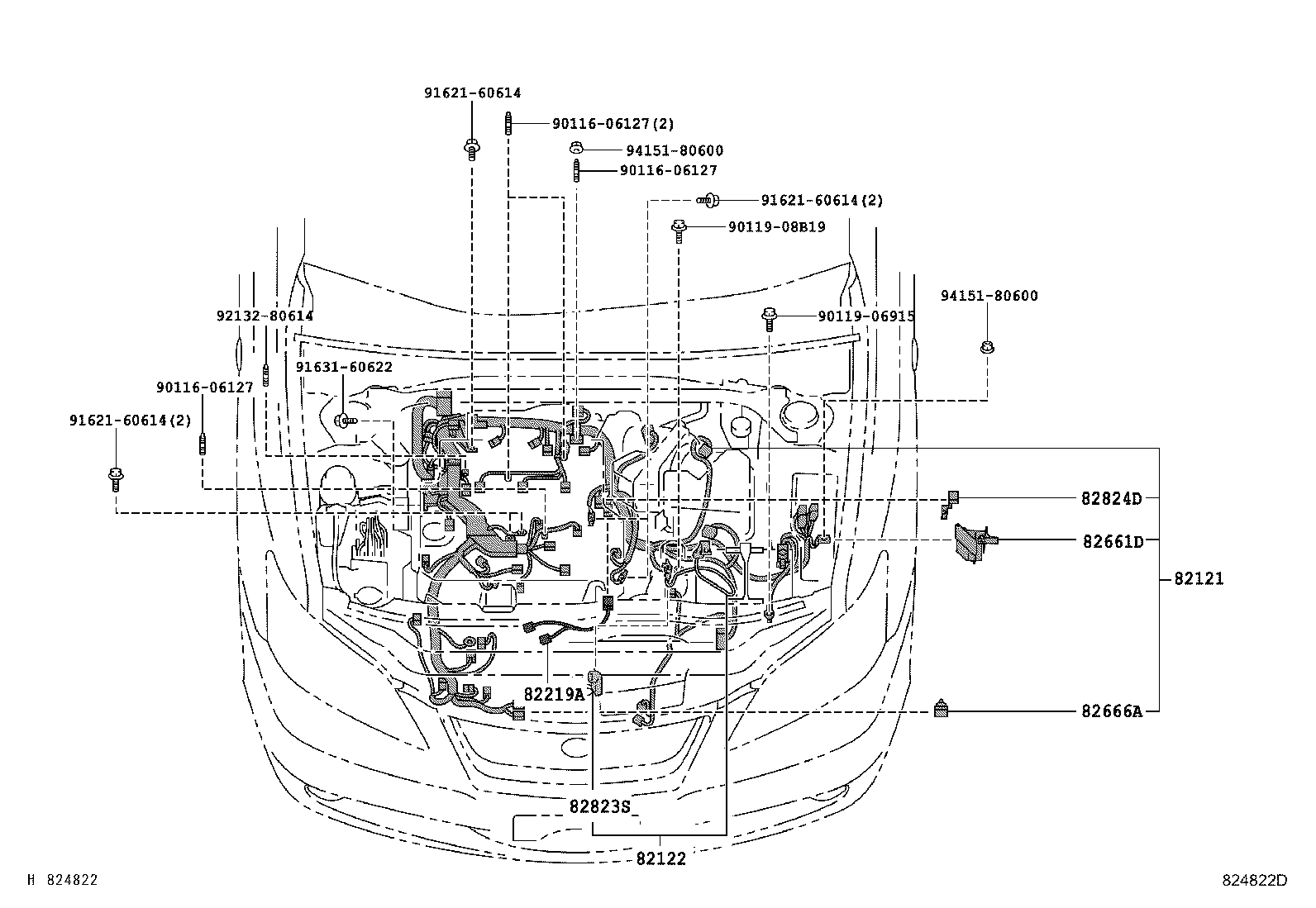

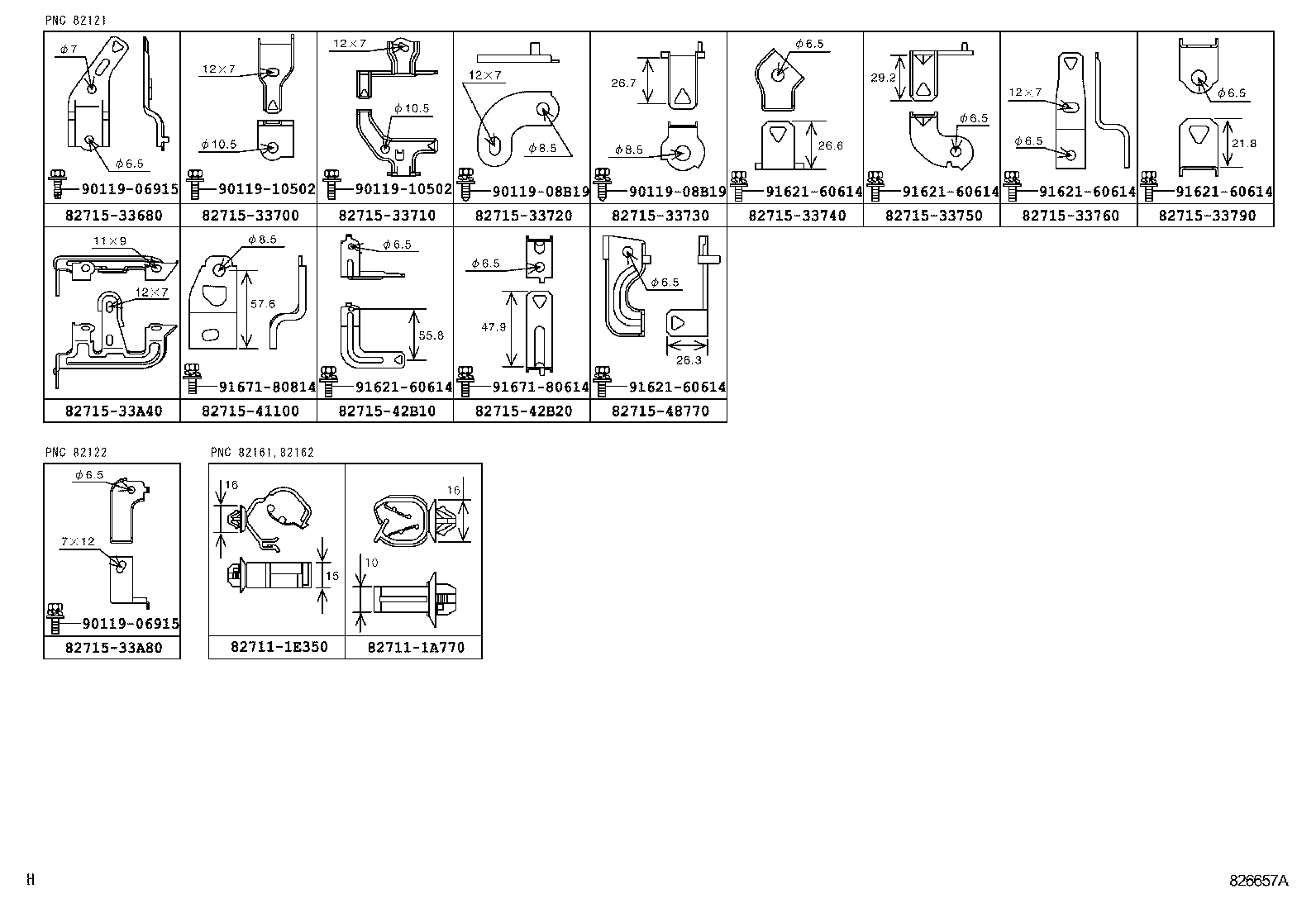

82121 Wire, Engine
82122 Wire, Engine, NO.2

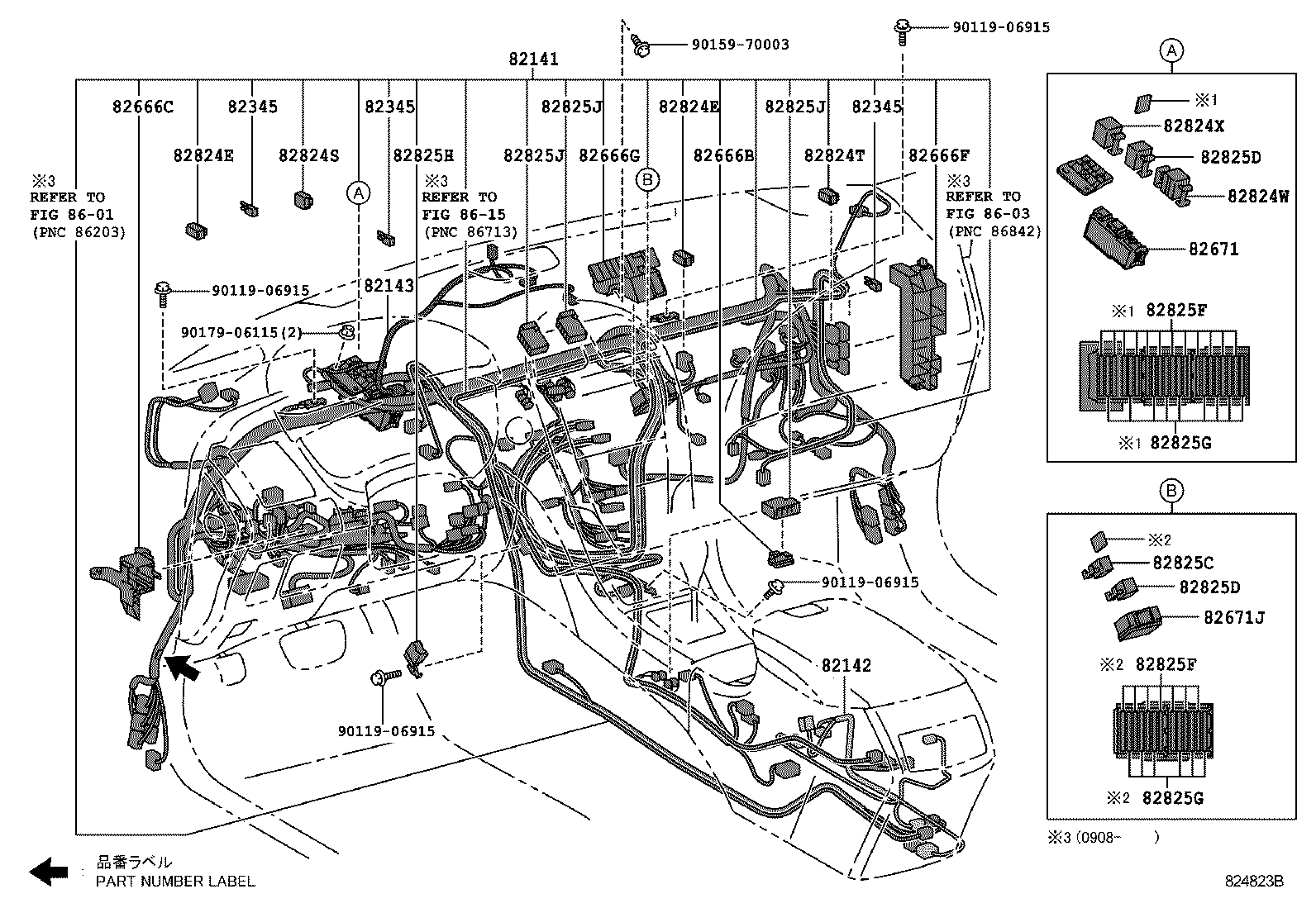

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3

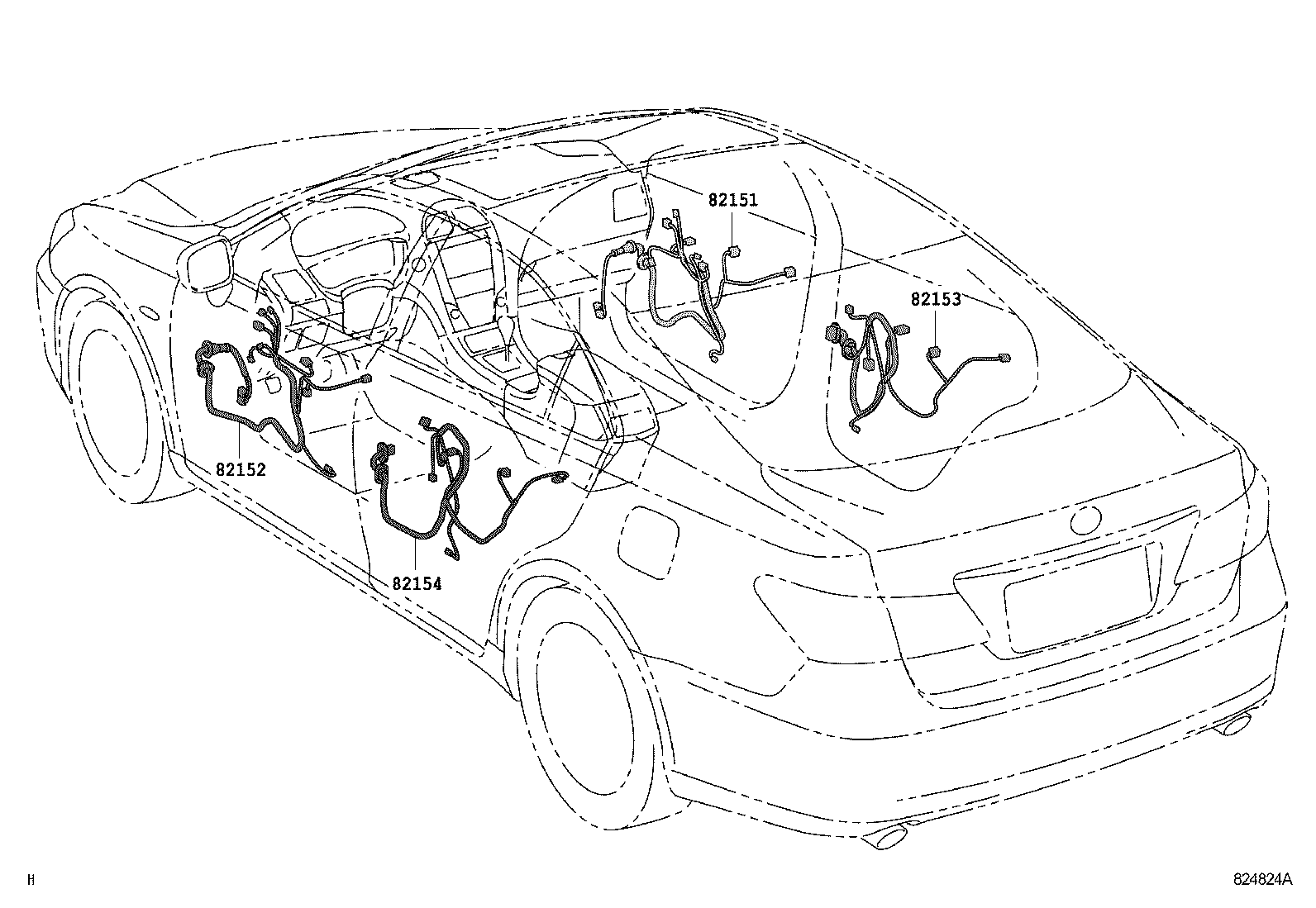

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

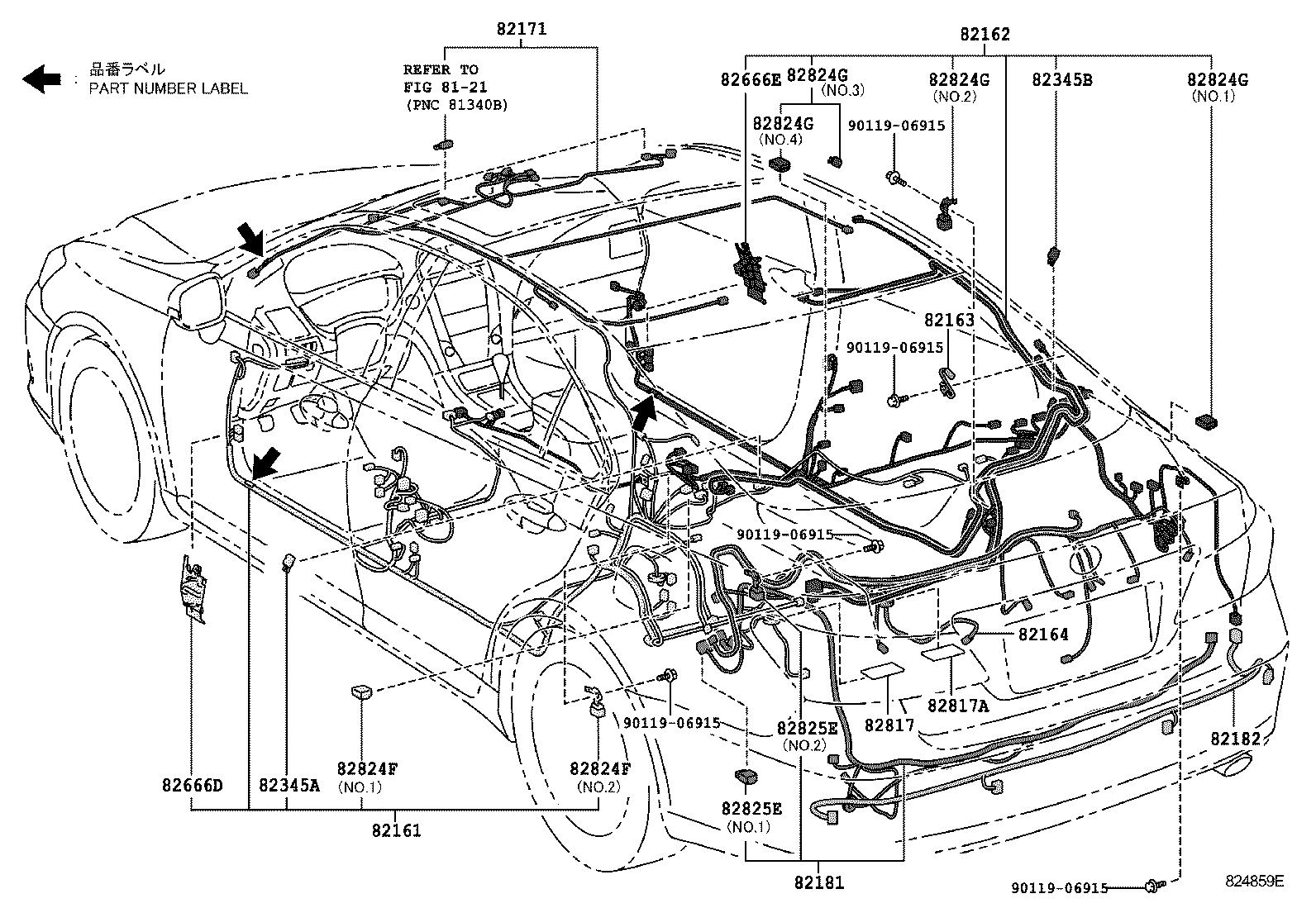

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2

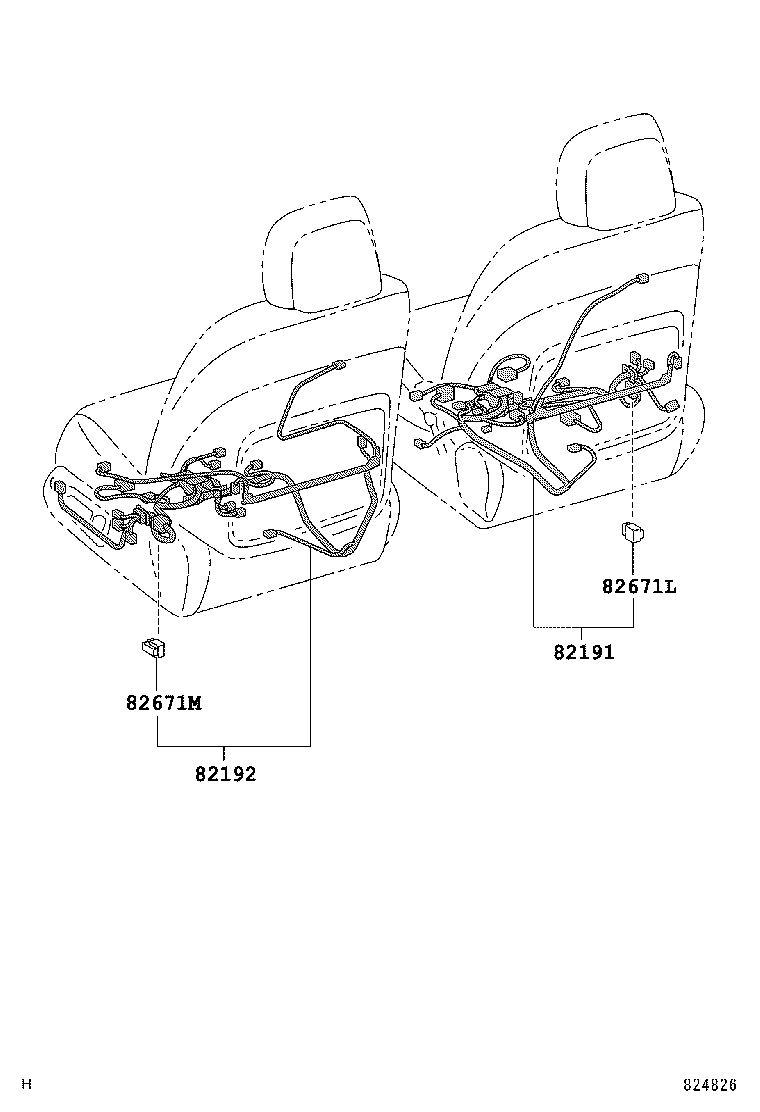

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82345 Diode
82345A Diode
82345B Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82671 Block, Junction
82671J Block, Junction, NO.2
82671L Block, Junction, NO.4
82671M Block, Junction, NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal

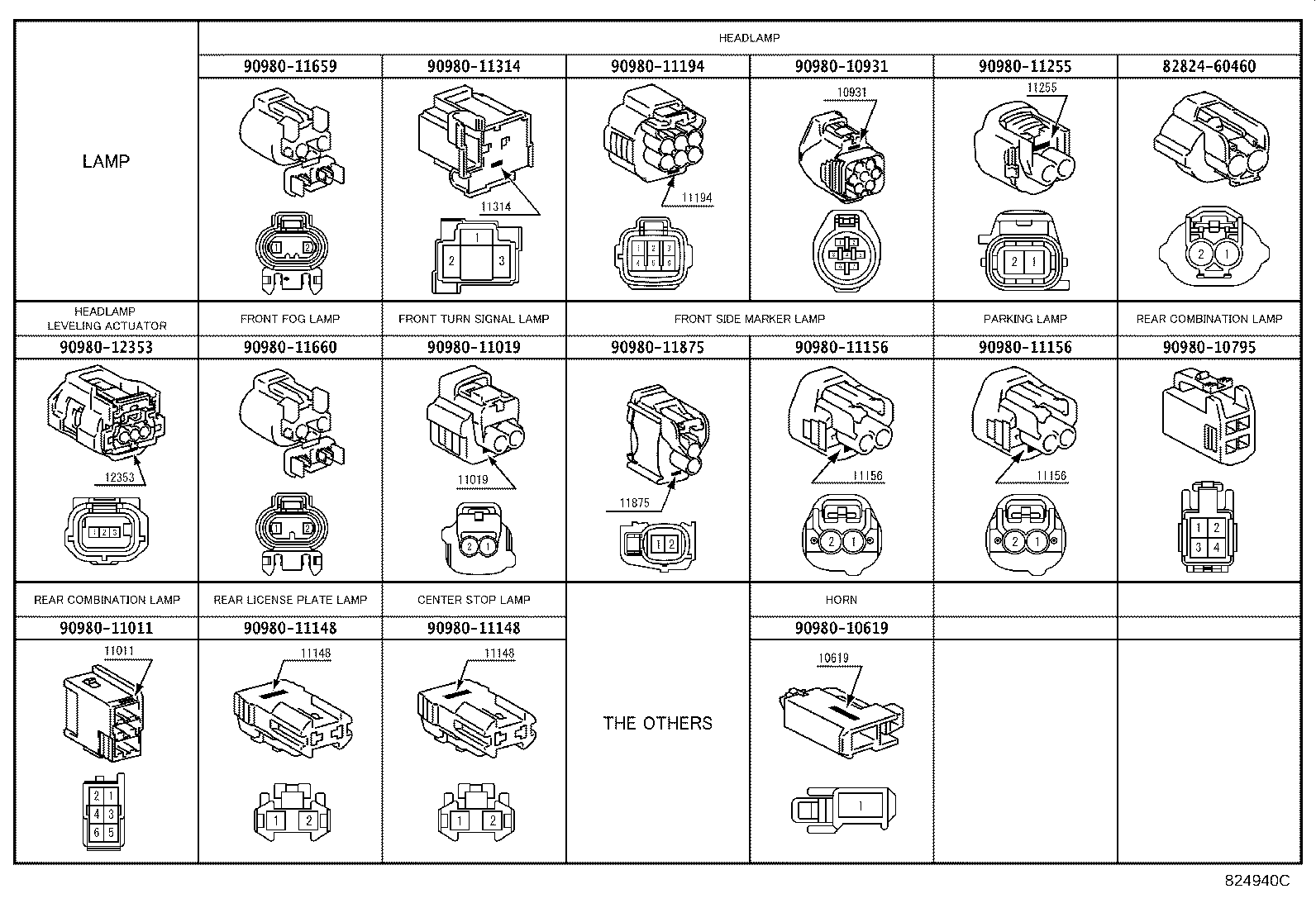

82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
82825C Connector, Wiring Harness
82825D Connector, Wiring Harness
82825E Connector, Wiring Harness
82825F Connector, Wiring Harness
82825G Connector, Wiring Harness
82825H Connector, Wiring Harness
82825J Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
