Toyota Lexus ES350

2006-03 → 2012-06 · chassis GSV40 · catalogue 282480 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 2 illustrations

Illustrations

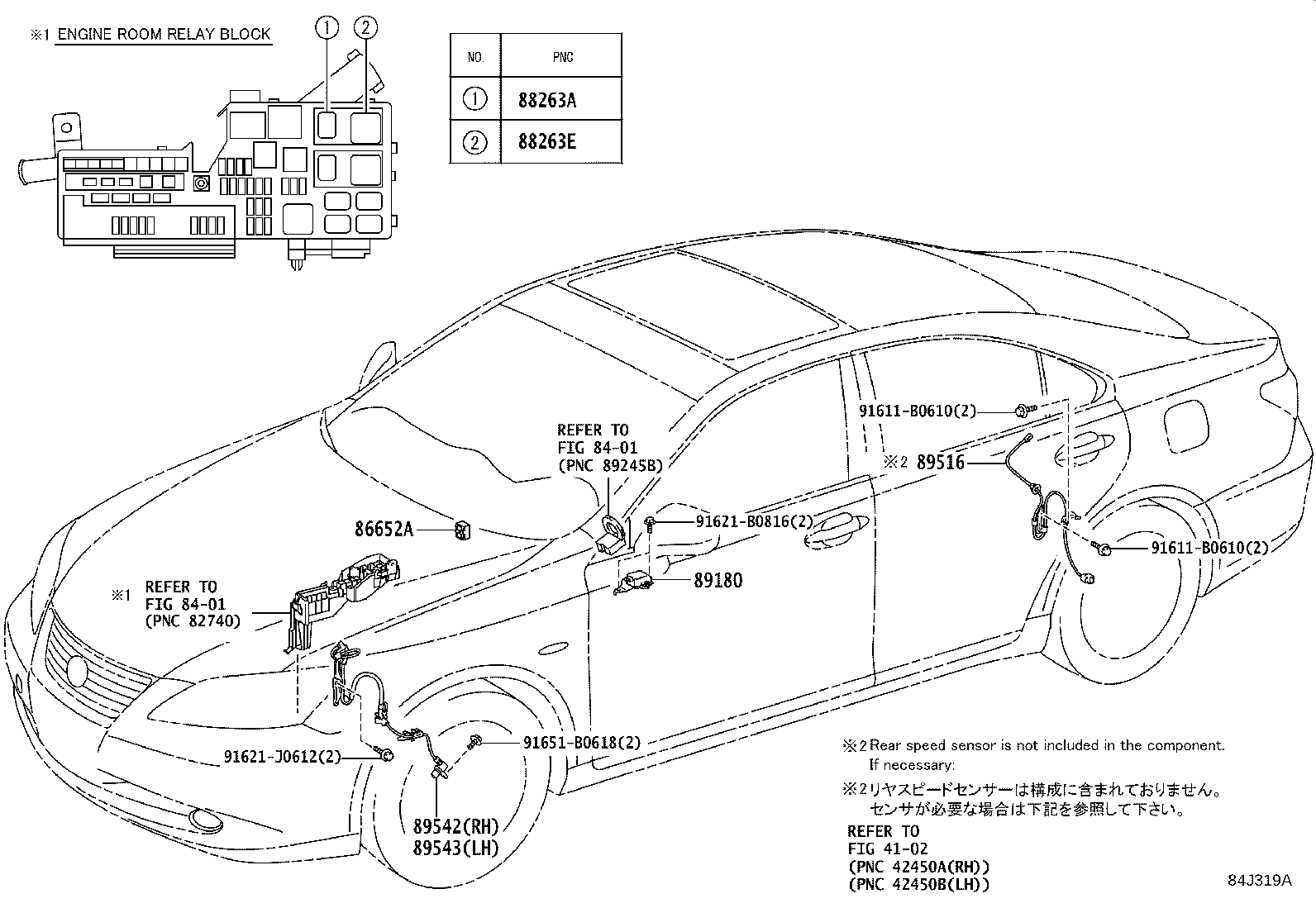

Figure 847823B 847823B 2006-03 → 2009-08 Figure 84J319A 84J319A 2009-08 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
89180 Sensor Assy, Yawrate
89516 Wire, Skid Control Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544 Sensor, Skid Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
