Toyota Lexus ES350

2006-03 → 2012-06 · chassis GSV40 · catalogue 282480 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

17 part groups · 3 illustrations

Illustrations

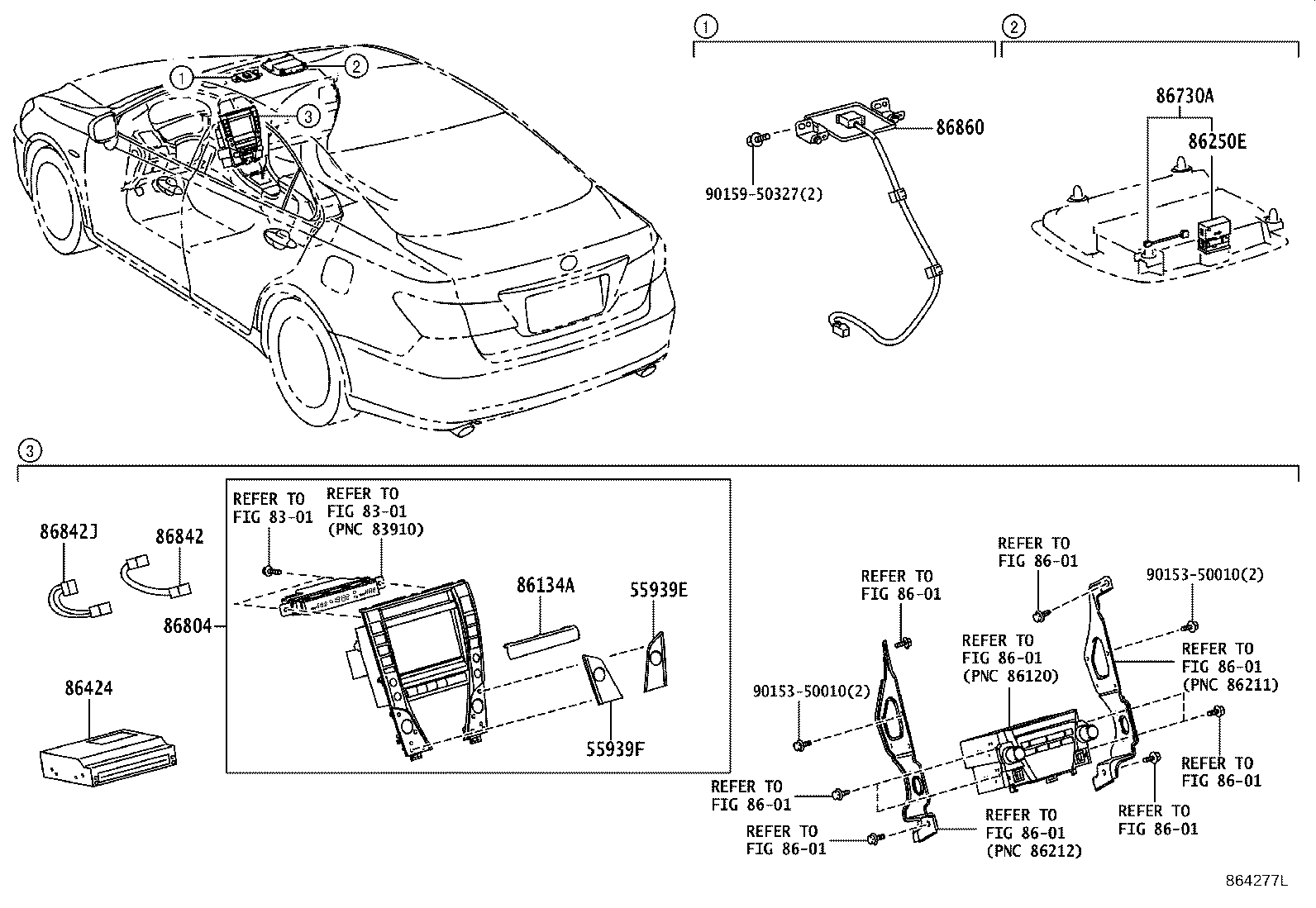

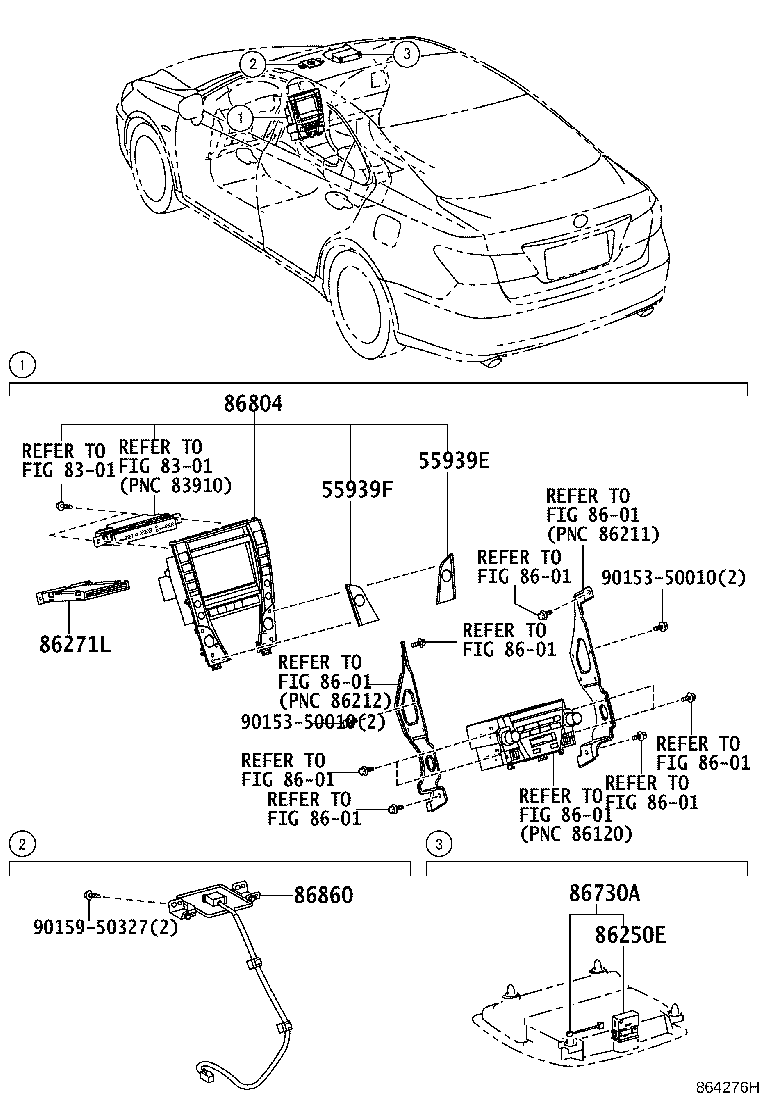

Figure 862836S 862836S 2006-03 → 2009-08 Figure 864277L 864277L 2009-08 → — Figure 864276H 864276H 2009-08 → —

Part groups

PNCDescription
55939E Ornament, Heater Control, RH
55939F Ornament, Heater Control, LH
86111 Multi-display
86134A Parts, Multi-display
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86420 Navigation Assy, Multi-media Module
86421 Board, Navigation Module
86424 Deck, Dvd
86430 Display Assy, Multi-media Module
86730A Microphone Assy, Telephone
86804 Cover Sub-assy, Navigation Computer
86807 Disc Kit, Cd-rom
86842 Wire, Navigation, NO.1
86842J Wire, Navigation, NO.2
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
