Toyota Lexus ES350
2006-03 → 2012-06 · chassis GSV40 · catalogue 282480 · United States
Supported model
Data version 2012-04
Antenna

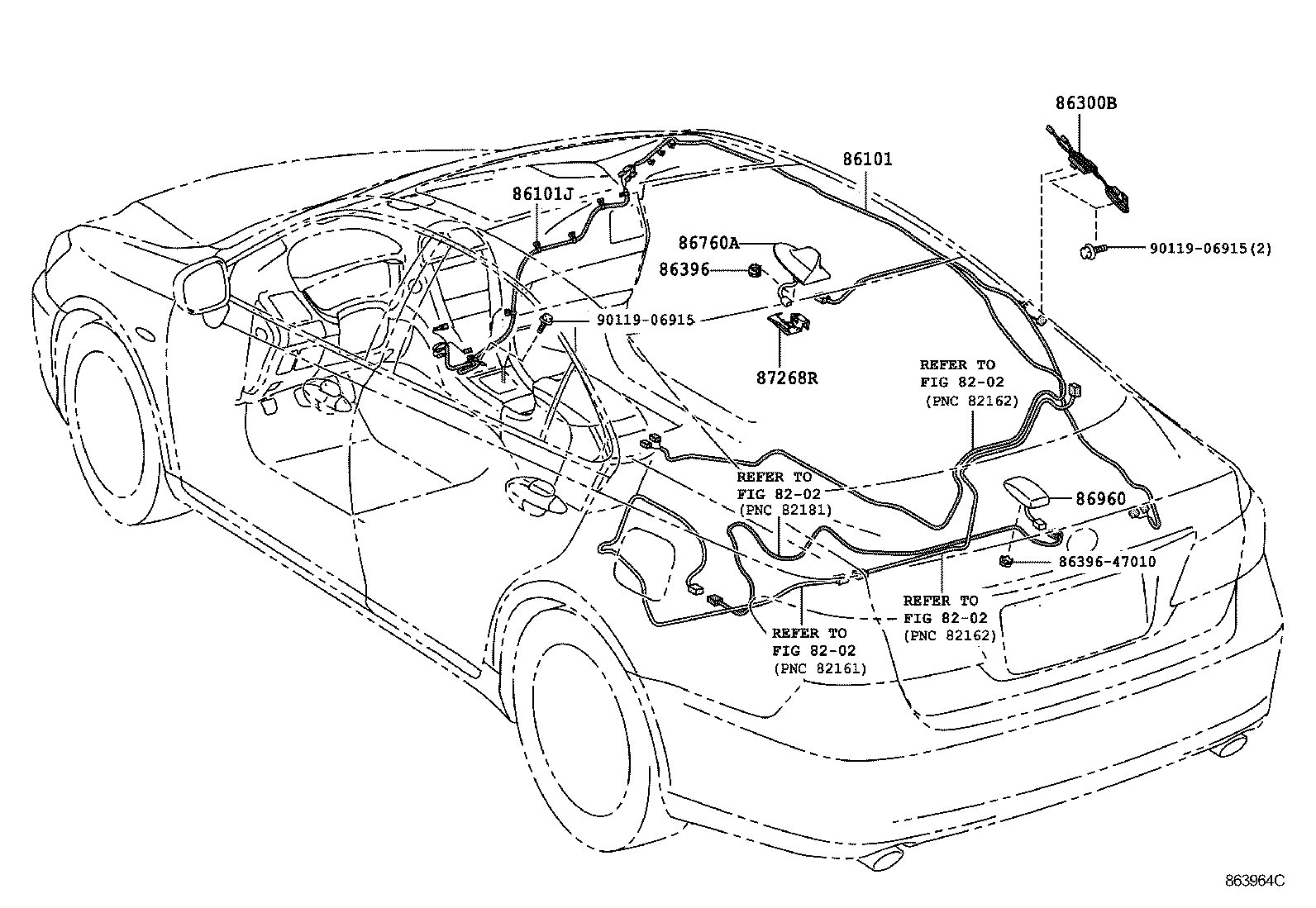

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86396 | Nut, Antenna |
| 86760A | Antenna Assy, Telephone |
| 86960 | Antenna Assy, Satellite Radio |
| 87268R | Protector, Telephone Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
