Toyota Lexus ES350

2006-03 → 2012-06 · chassis GSV40 · catalogue 282480 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

26 part groups · 3 illustrations

Illustrations

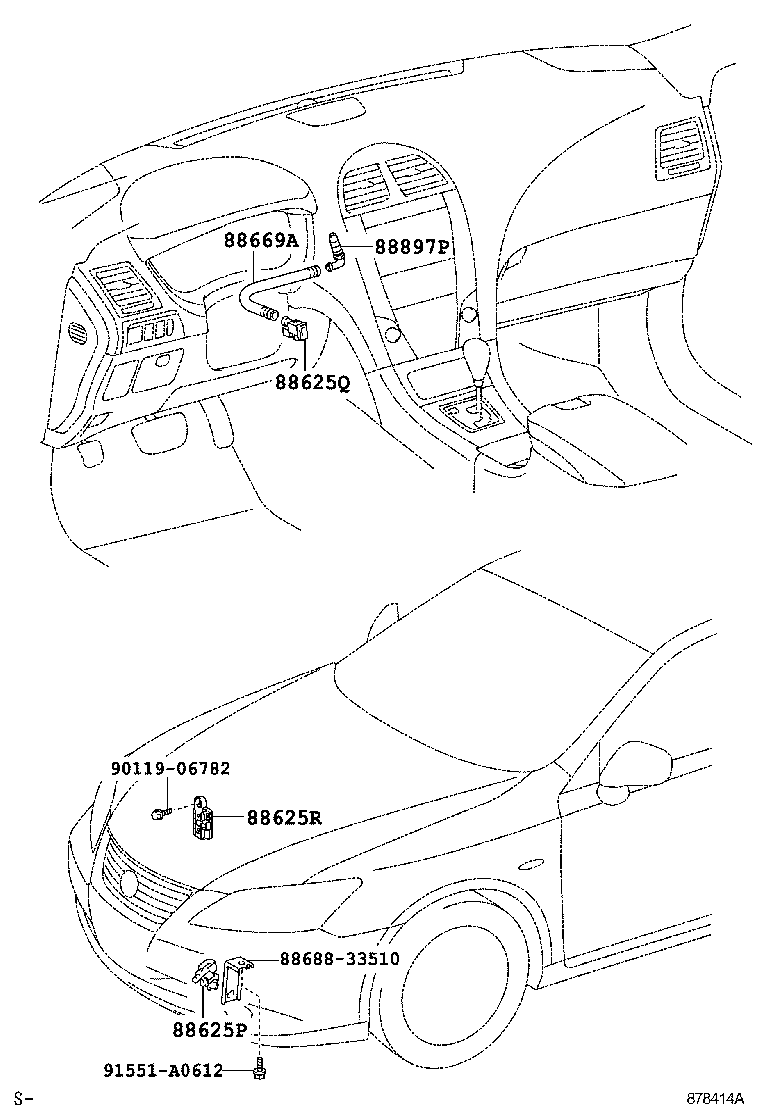

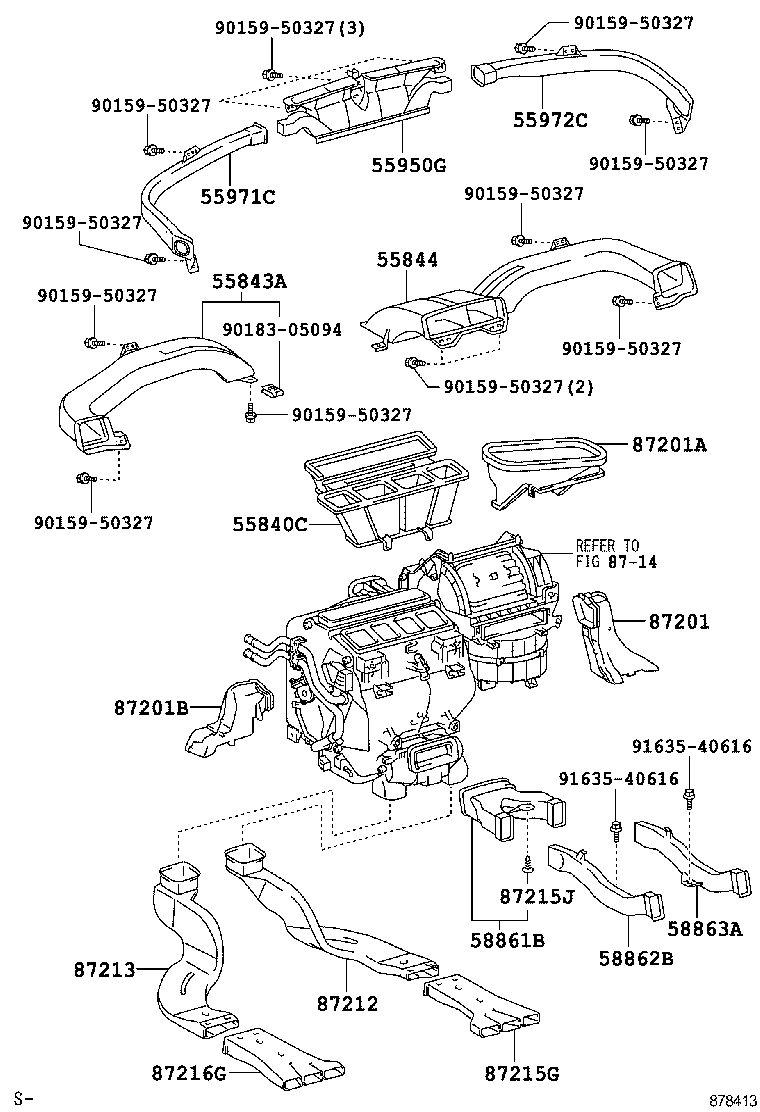

Figure 878412D 878412D 2006-03 → — Figure 878413 878413 2006-03 → — Figure 878414A 878414A 2006-03 → —

Part groups

PNCDescription
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55904A Housing Sub-assy, Heater Control
55930 Control Assy, Center Cluster Module
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
58863A Duct, Console Box, NO.3
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215G Guide, Air Duct, Rear RH
87215J Clip (FOR AIR REAR DUCT)
87216G Guide, Air Duct, Rear LH
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88625R Thermistor, Cooler (SENSOR, SMOG VENTILATION)
88669A Hose (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
