Toyota Lexus ES350/300H(Jpp

2012-06 → 2018-06 · chassis AVV60,GSV60 · catalogue 282490 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

19 part groups · 2 illustrations

Illustrations

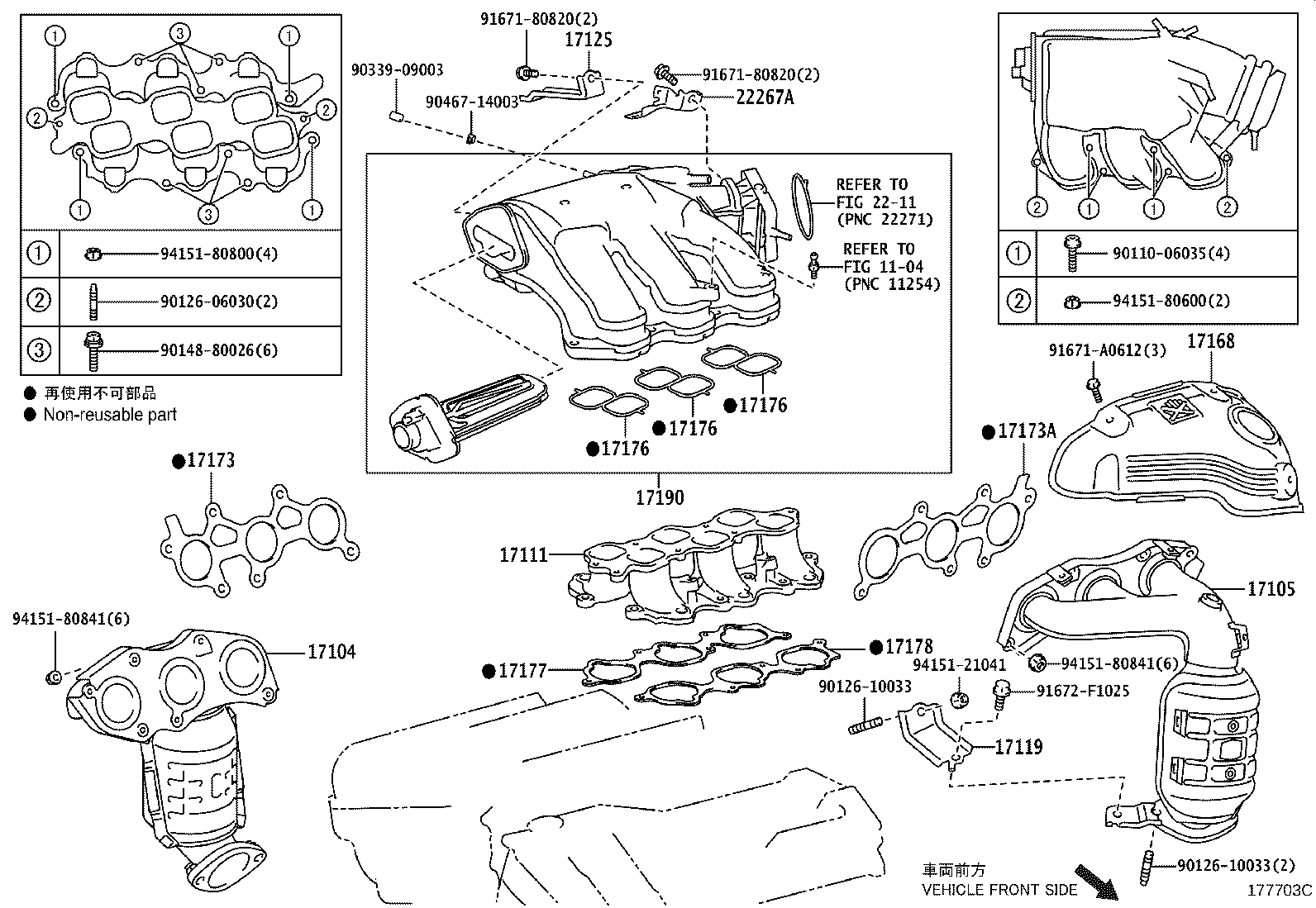

Figure 177709B 177709B 2012-06 → — Figure 177703C 177703C 2012-06 → —

Part groups

PNCDescription
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17139 Stay, Manifold, NO.2
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17190 Tank Assy, Intake Air Surge
22267A Bracket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
