Brake Master Cylinder

15 part groups · 2 illustrations

Illustrations

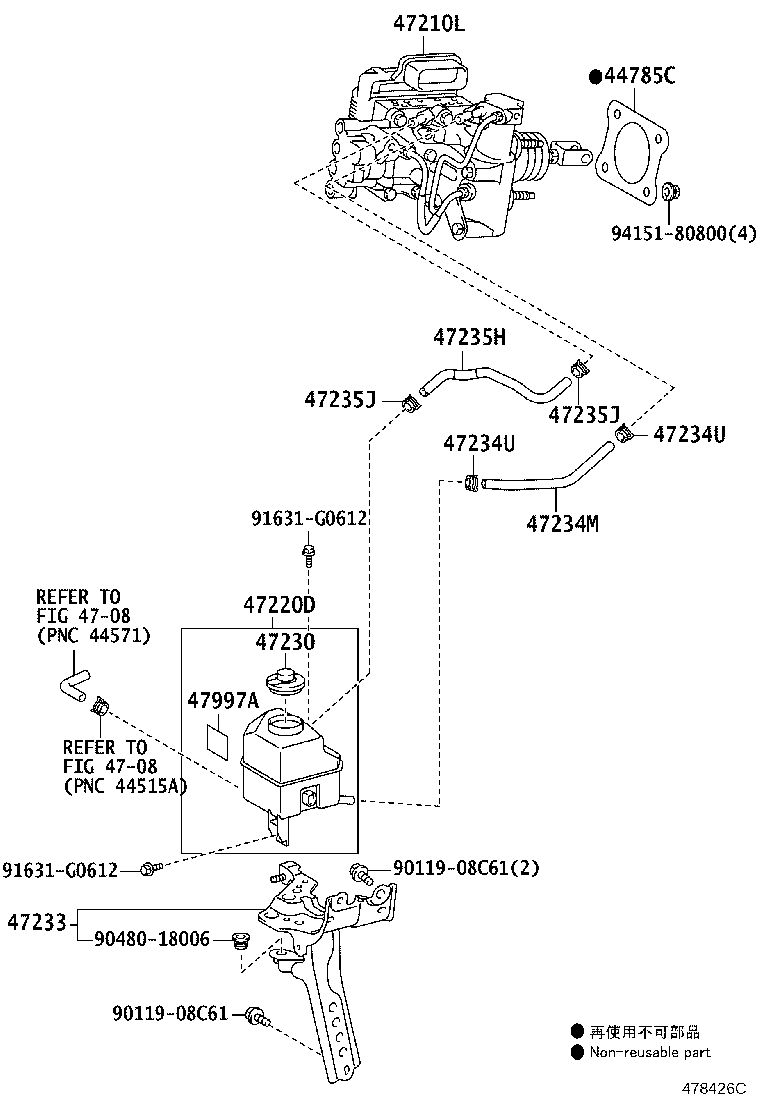

Figure 478425B 478425B 2012-06 → — Figure 478426C 478426C 2012-06 → —

Part groups

PNCDescription
44785C Gasket, Brake Booster
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47210L Brake Booster Assy, W/Master Cylinder
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47234M Hose, Reservoir, NO.1
47234U Clip(FOR RESERVOIR HOSE NO.1)
47235H Hose, Reservoir, NO.2
47235J Clip(FOR RESERVOIR HOSE NO.2)
47255 Grommet, Master Cylinder Reservoir
47299 Strainer, Brake Master Cylinder Reservoir
47997A Label, Accumulator Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
