Toyota Lexus ES350/300H(Jpp
2012-06 → 2018-06 · chassis AVV60,GSV60 · catalogue 282490 · United States
Supported model
Data version 2018-12

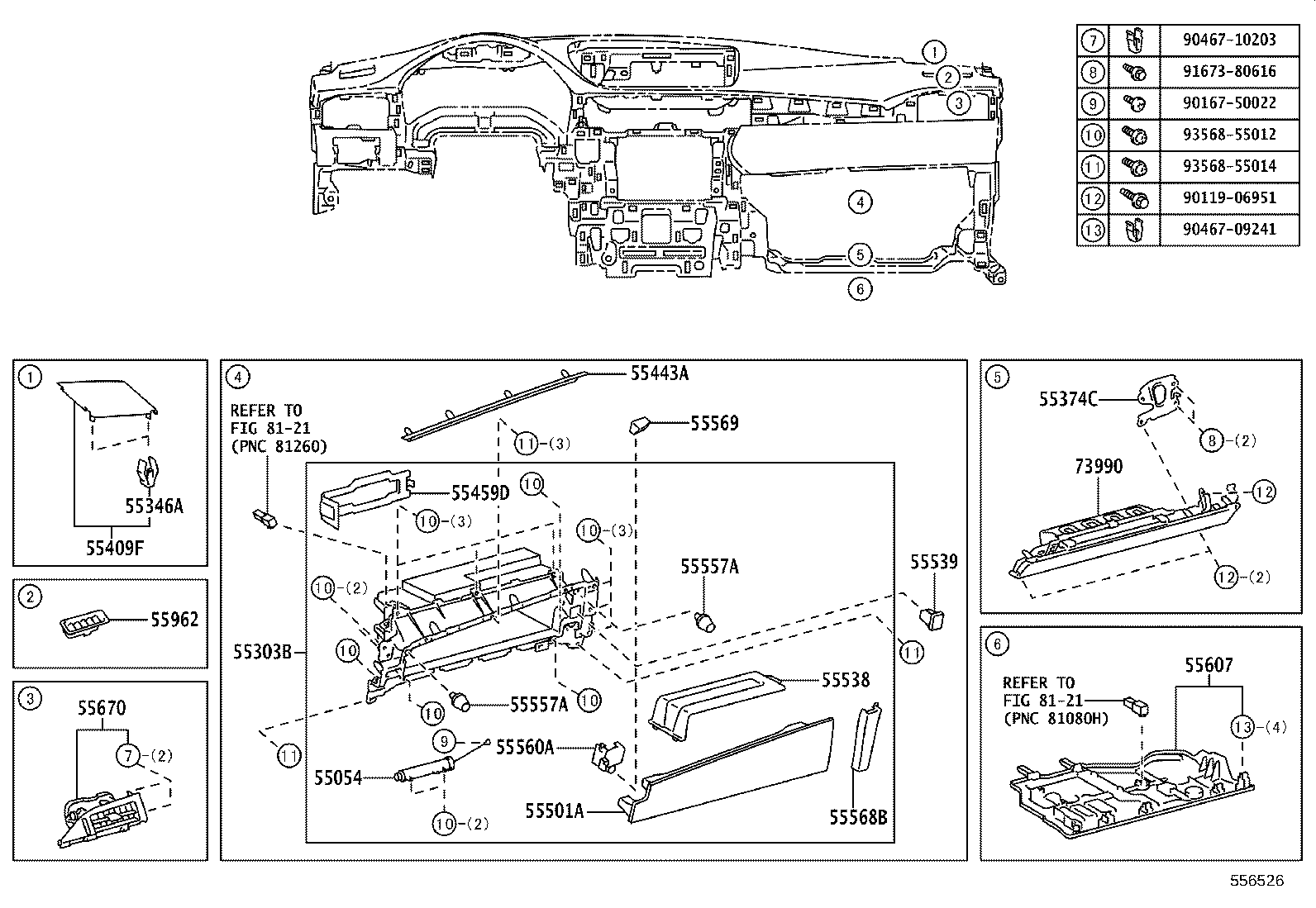

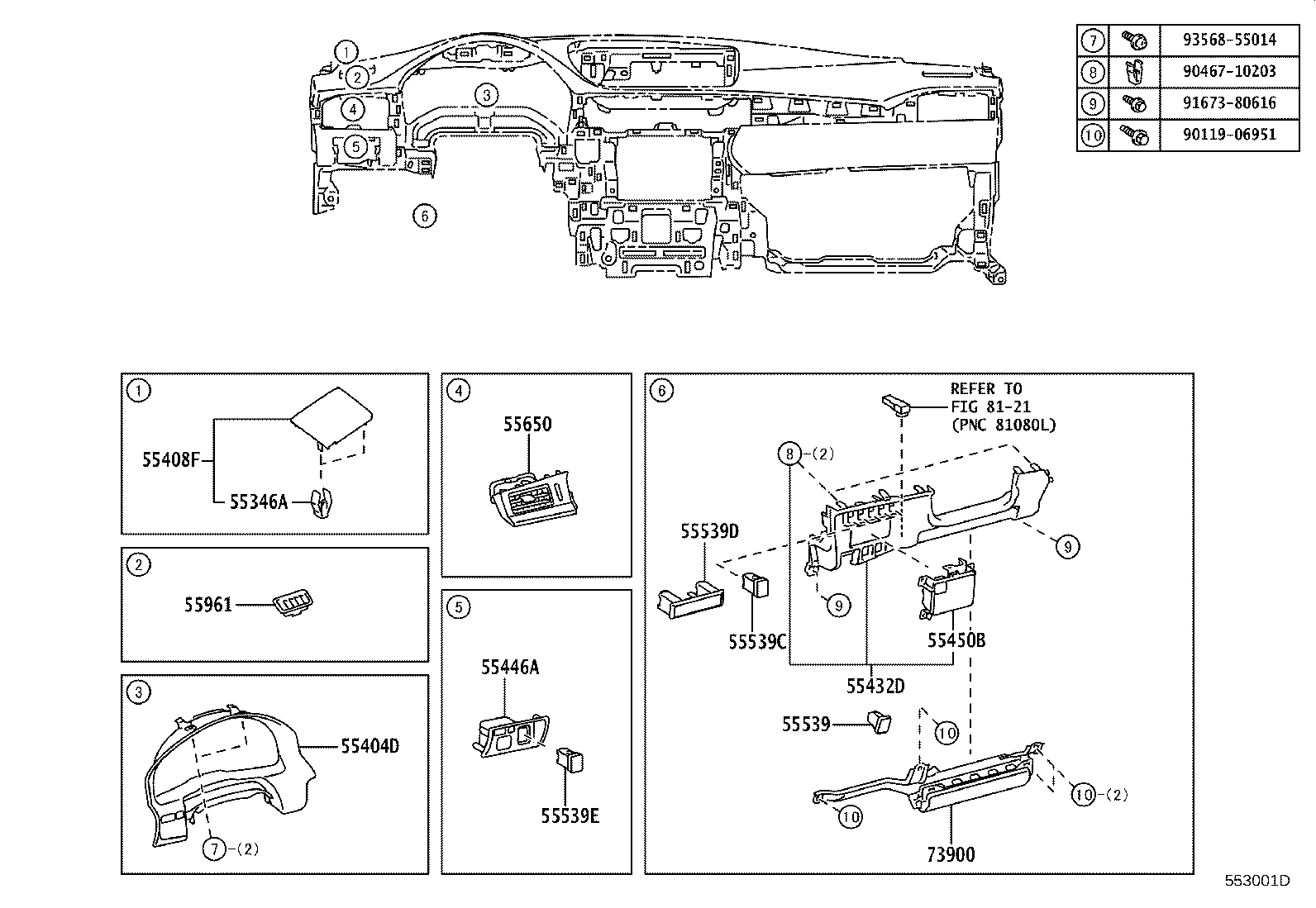

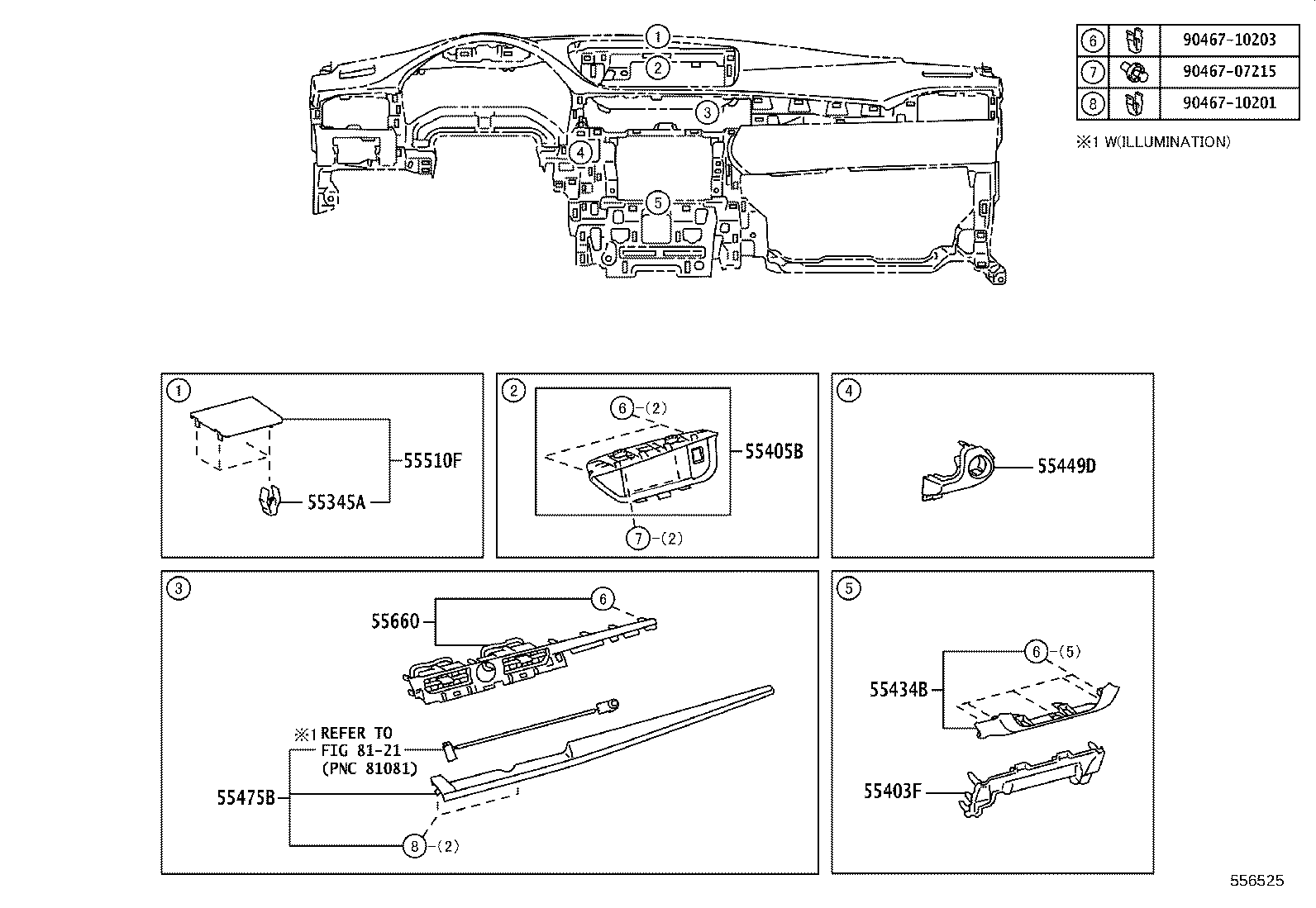

Instrument Panel & Glove Compartment
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307E | Brace Sub-assy, Instrument Panel, NO.2 |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55321B | Bracket, Instrument Panel, NO.1 |
| 55322A | Bracket, Instrument Panel, NO.2 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55401F | Clip(FOR SAFETY PAD) |
| 55403F | Panel Sub-assy, Instrument Panel Finish |
| 55404D | Panel Sub-assy, Instrument Cluster Finish |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55443A | Cover, Instrument Panel Box Door |
| 55446A | Base, Switch Hole, NO.1 |
| 55449D | Base, Switch |
| 55450B | Box Assy, Coin |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55459D | Cover, Instrument, Lower LH |
| 55475B | Garnish, Instrument Cluster Finish Panel, Center |
| 55501A | Door Sub-assy, Glove Compartment |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55538 | Retainer,Glove Compartment |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73990 | Airbag Assy, Instrument Panel, Lower NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
