Floor Pan & Lower Back Panel

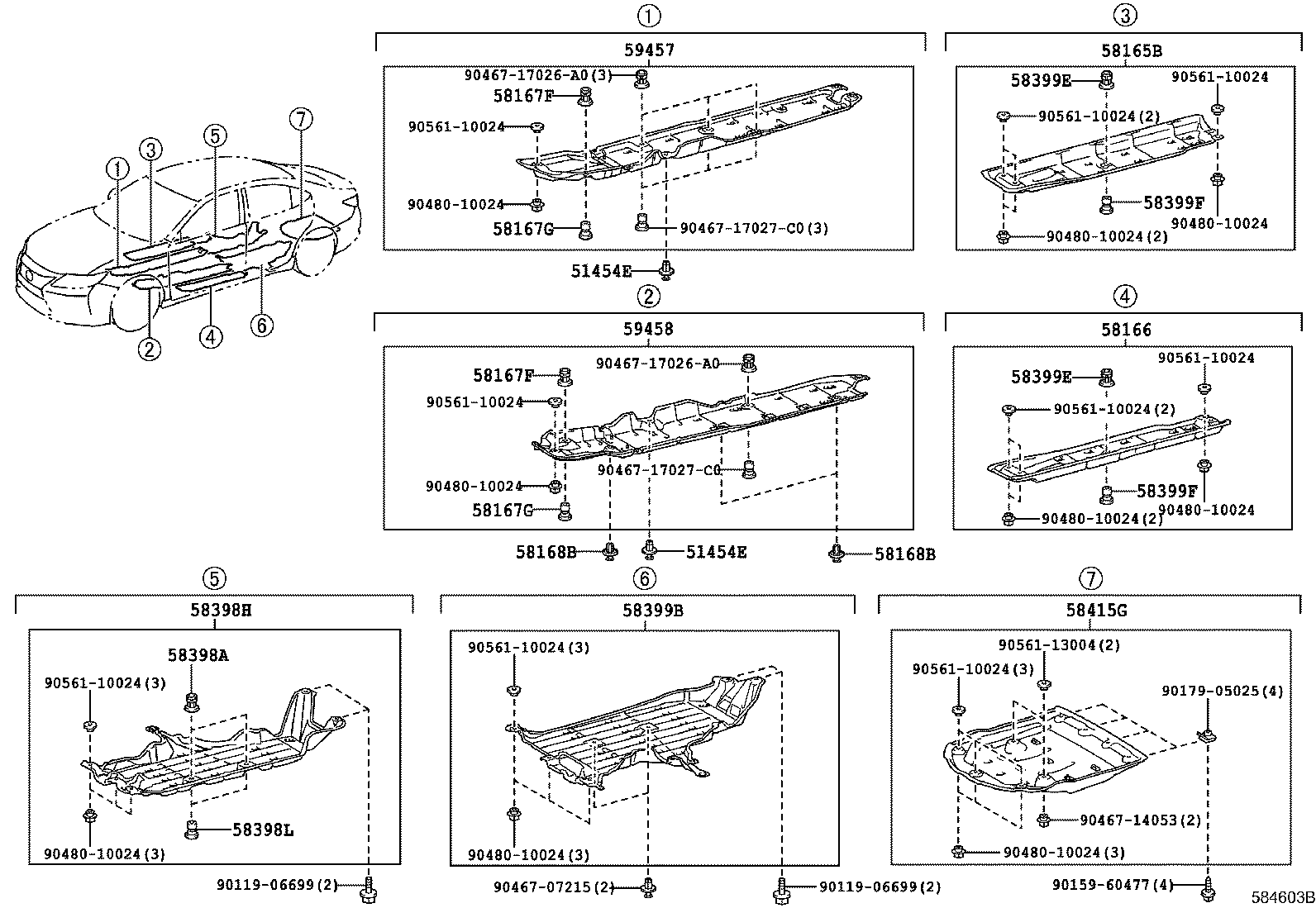

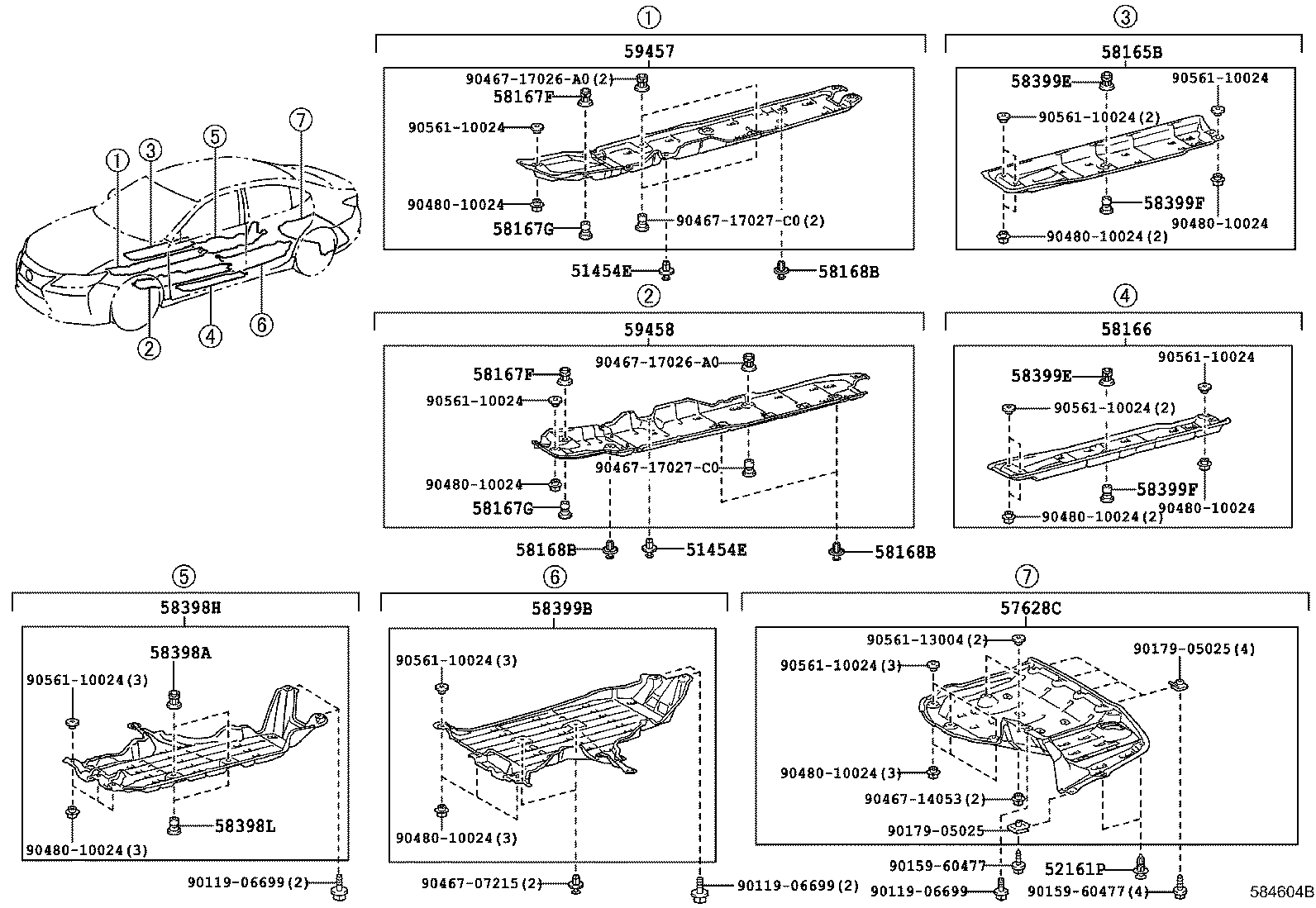

53 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51454E | Silencer, Front Floor Cover |
| 52161P | Piece, Rear Bumper |
| 57054B | Reinforcet Sub-assy, Crossmember Floor, NO.4 |
| 57419G | Reinforcement, Front Floor Under, Rear RH |
| 57429 | Reinforcement, Front Floor Under, Rear LH |
| 57451A | Member, Front Floor Cross, RH |
| 57452C | Member, Front Floor Cross, LH |
| 57453C | Member, Front Floor Cross Side, RH |
| 57454B | Member, Front Floor Cross Side, LH |
| 57475D | Plate, Front Floor Crossmember, RH |
| 57476 | Plate, Front Floor Crossmember, LH |
| 57628C | Cover, Rear Floor Side Member, LH |
| 57695F | Extension, Rear Floor Crossmember Rear Side, RH |
| 57696D | Extension, Rear Floor Crossmember Rear Side, LH |
| 57805B | Reinforcement Sub-assy, Belt Anchor, RH |
| 57806 | Reinforcement Sub-assy, Belt Anchor, LH |
| 58105B | Panel Sub-assy, Front Floor Rear Upper Sub |
| 58111 | Pan, Front Floor |
| 58123A | Support, Shift & Select Lever |
| 58136 | Cover, Front Floor Hole |
| 58165B | Cover, Front Floor, RH |
| 58166 | Cover, Front Floor, LH |
| 58167F | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58167G | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 58168B | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58171A | Reinforce, Parking Brake Base |
| 58189 | Reinforcement, Exhaust Pipe Clamp Bracket |
| 58202A | Pan Sub-assy, Center Floor, Front |
| 58204H | Pan Sub-assy, Center Floor, Rear |
| 58211H | Pan, Center Floor |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58323E | Reinforcement, Rear Bumper Arm Support, RH |
| 58324D | Reinforcement, Rear Bumper Arm Support, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58336F | Reinforcement, Rear Floor Pan, RH |
| 58337D | Reinforcement, Rear Floor Pan, LH |
| 58351E | Bracket, Spare Wheel Clamp |
| 58385H | Bracket, Rear Bumper Cover, NO.1 |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58398A | Clip, NO.3(FOR FLOOR UNDER COVER) |
| 58398H | Cover, Floor Under, NO.1 |
| 58398L | Clip, NO.4(FOR FLOOR UNDER COVER) |
| 58399B | Cover, Floor Under, NO.2 |
| 58399E | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58399F | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 58415G | Board, Rear Floor, NO.1 |
| 59457 | Cover, Front Floor Footrest, NO.2 RH |
| 59458 | Cover, Front Floor Footrest, NO.2 LH |
| 61061F | Gusset Sub-assy, Quarter Wheel House, NO.1 |
| 61062F | Gusset Sub-assy, Quarter Wheel House, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
