Toyota Lexus ES350/300H(Jpp

2012-06 → 2018-06 · chassis AVV60,GSV60 · catalogue 282490 · United States

Supported model Data version 2018-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

75 part groups · 7 illustrations

Illustrations

718010K 2012-06 → 2015-07

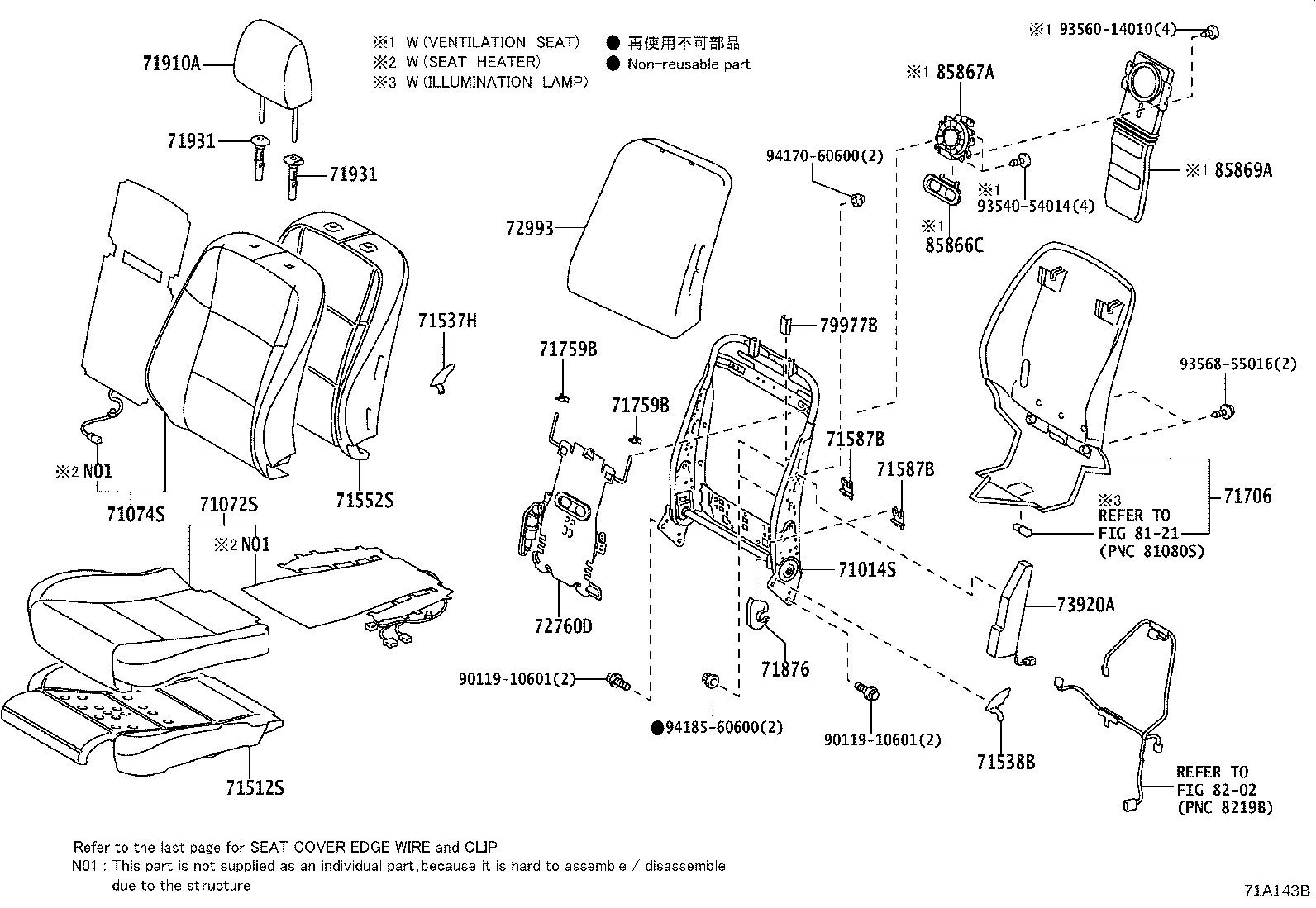

71A143B 2015-07 → —

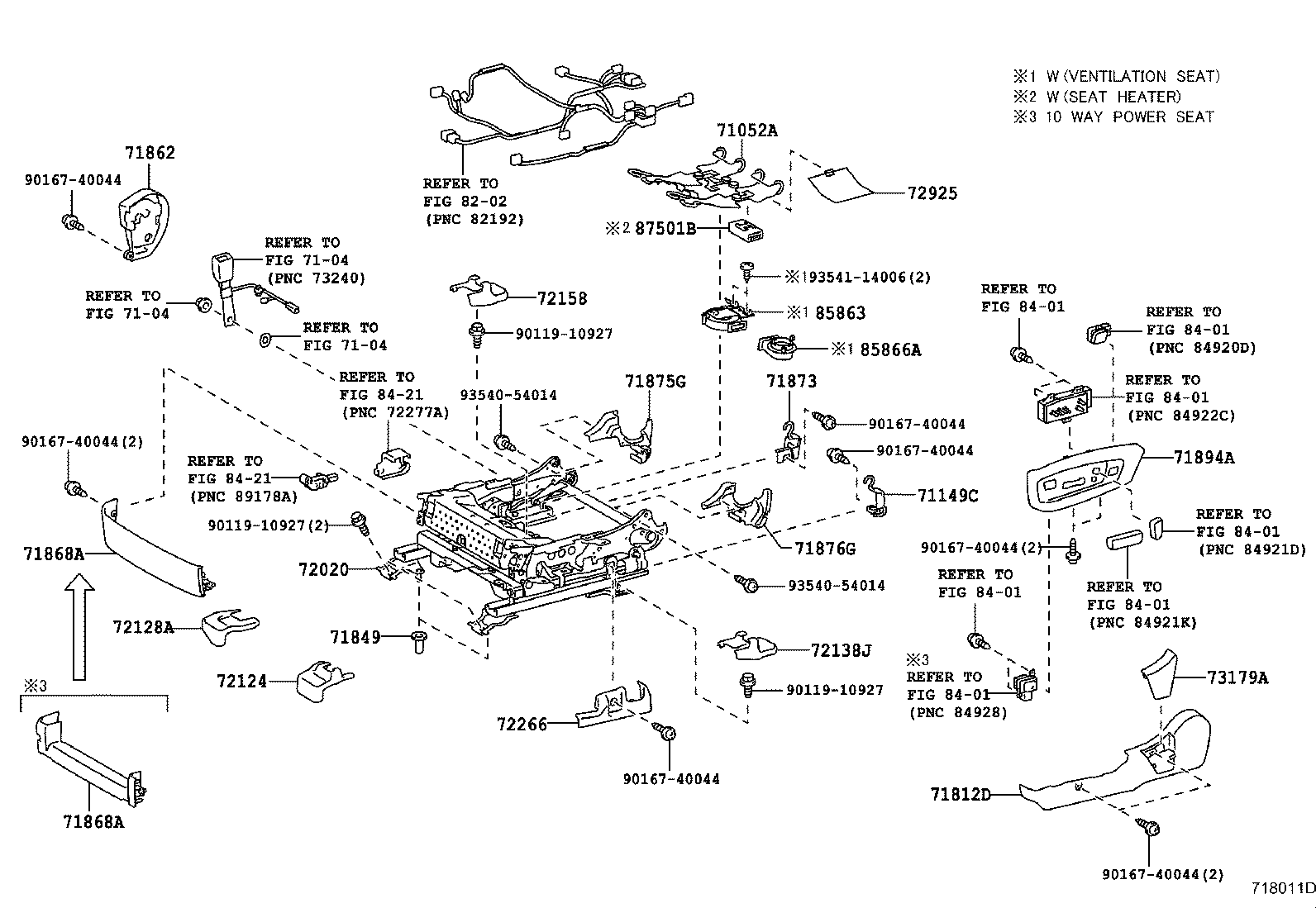

718011D 2012-06 → —

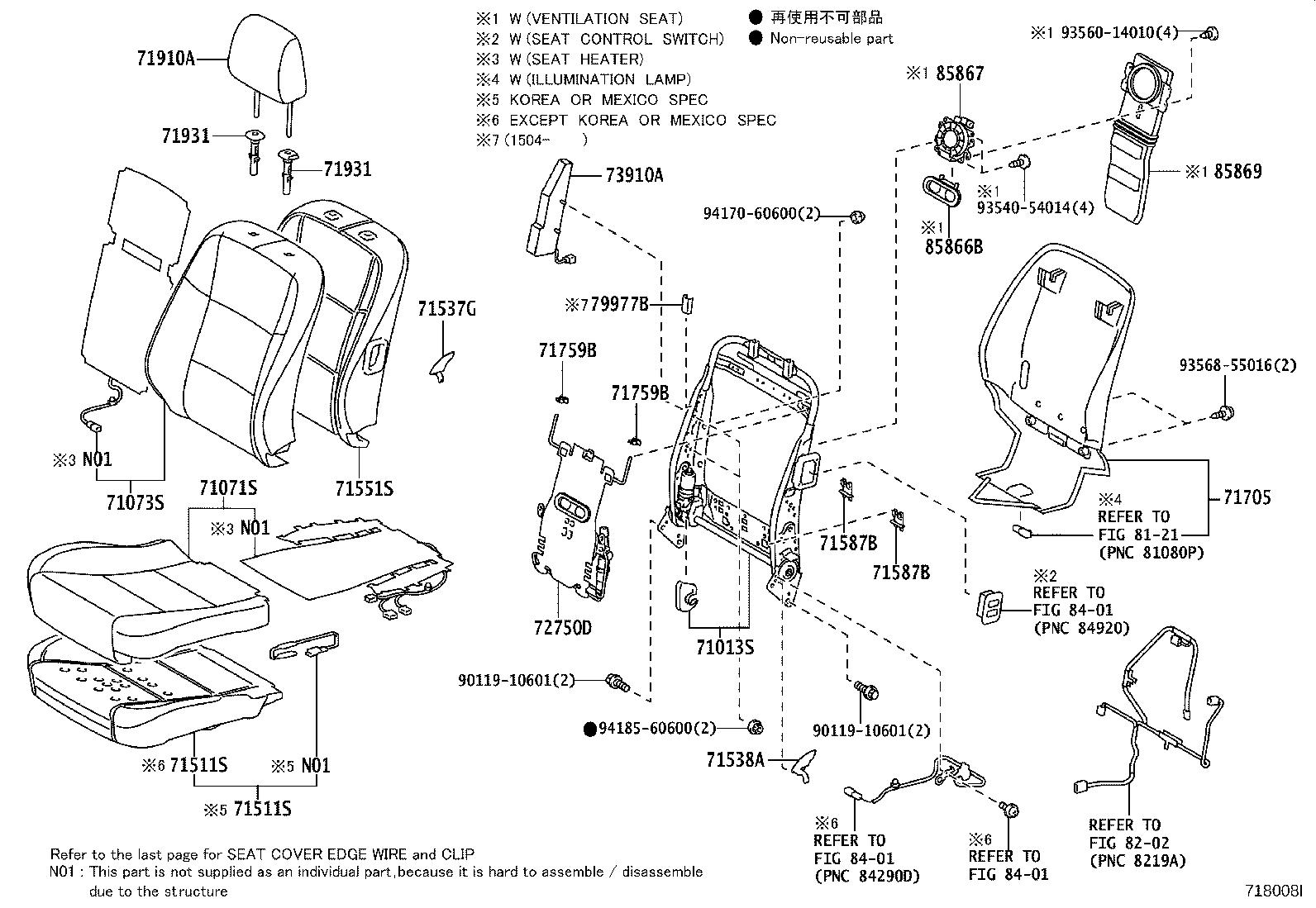

718008I 2012-06 → 2015-07

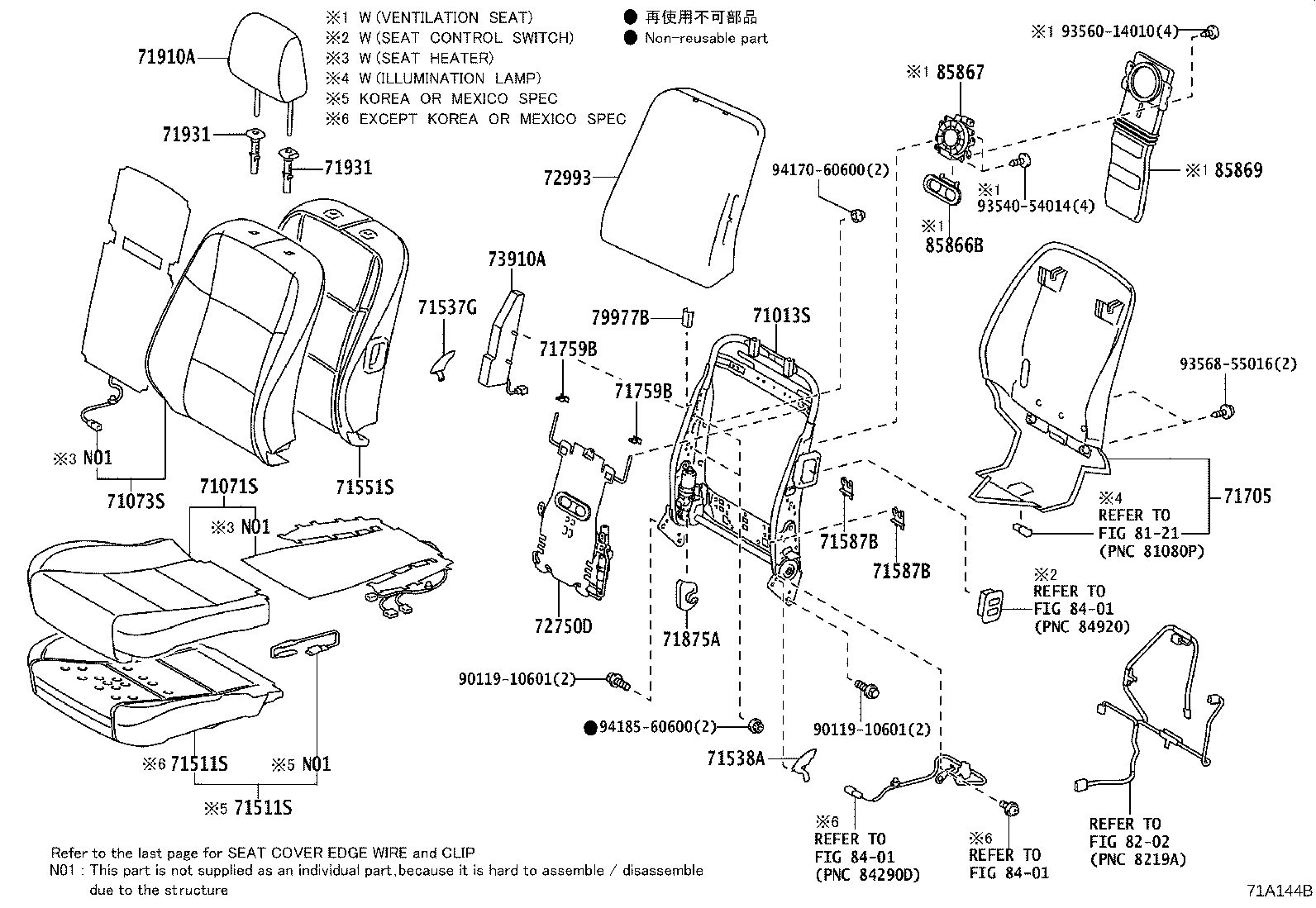

71A144B 2015-07 → —

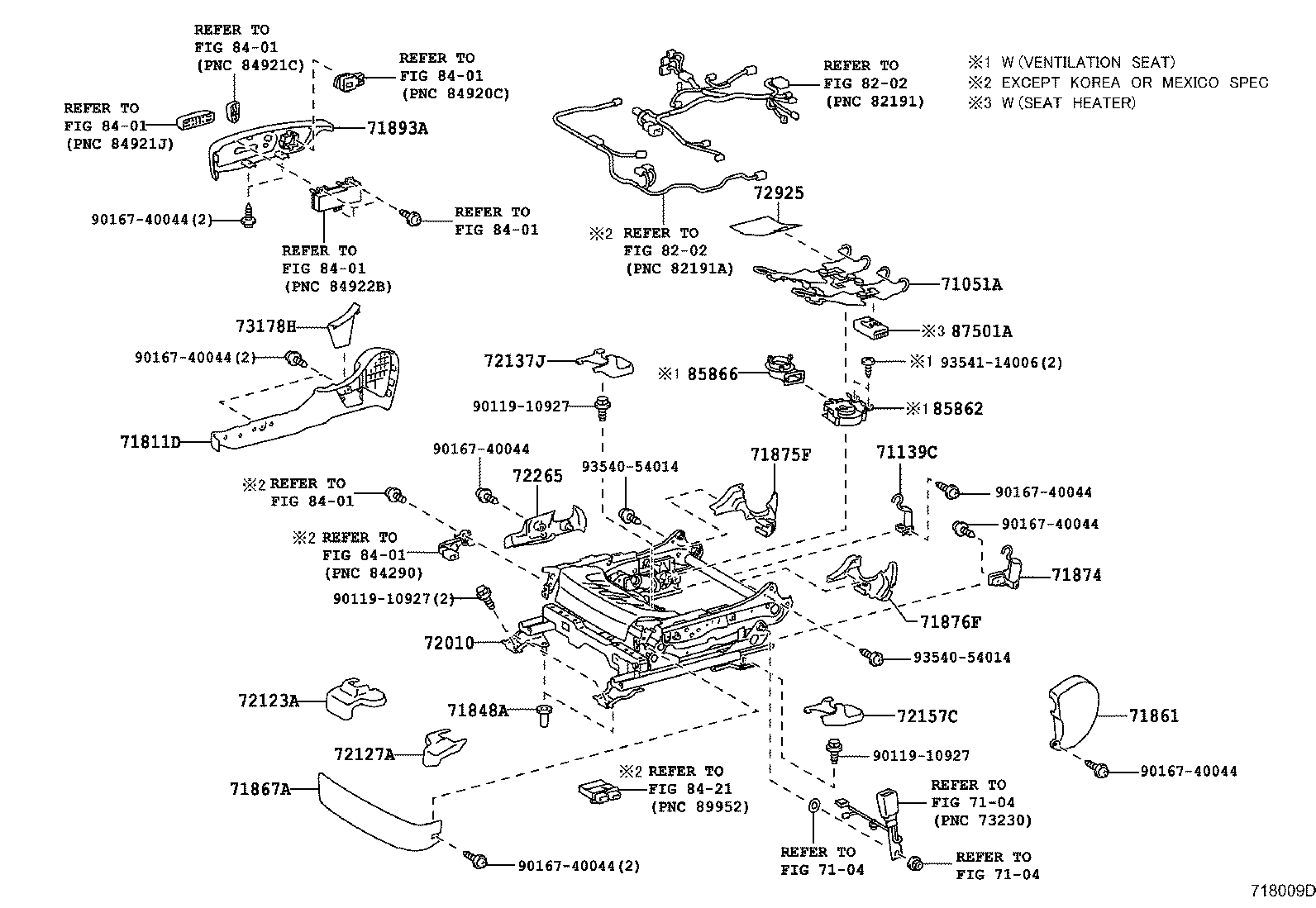

718009D 2012-06 → —

719024S 2012-06 → —

Part groups

PNC	Description
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71051A	Spring Sub-assy, Front Seat Cushion, RH
71052A	Spring Sub-assy, Front Seat Cushion, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71139C	Cover, Front Seat Leg, RH
71149C	Cover, Front Seat Leg, LH (FOR LH SEAT)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G	Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H	Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A	Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B	Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587B	Protector, Front Seatback Edge
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71759B	Hook, Front Seatback
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875F	Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71893A	Shield, Power Adjuster, Front RH
71894A	Shield, Power Adjuster, Front LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137J	Cover, Front Seat Track, RH Rear Outer
72138J	Cover, Front Seat Track, LH Rear Outer
72157C	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72265	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
72925	Cover, Front Seat Cushion
72993	Cover, Front Seatback
73178H	Cap, Seat Belt Anchor Cover, RH
73179A	Cap, Seat Belt Anchor Cover, LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
79977B	Felt, Seatback Frame
85862	Blower, Seat Climate Control, RH
85863	Blower, Seat Climate Control, LH
85866	Duct, Seat Cushion Climate Control, RH
85866A	Duct, Seat Cushion Climate Control, LH
85866B	Duct, Seatback Climate Control, RH
85866C	Duct, Seatback Climate Control, LH
85867	Blower, Seatback Climate Control, RH
85867A	Blower, Seatback Climate Control, LH
85869	Cover, Seatback Climate Control, RH
85869A	Cover, Seatback Climate Control, LH
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
