Toyota Lexus ES350/300H(Jpp
2012-06 → 2018-06 · chassis AVV60,GSV60 · catalogue 282490 · United States
Supported model
Data version 2018-12

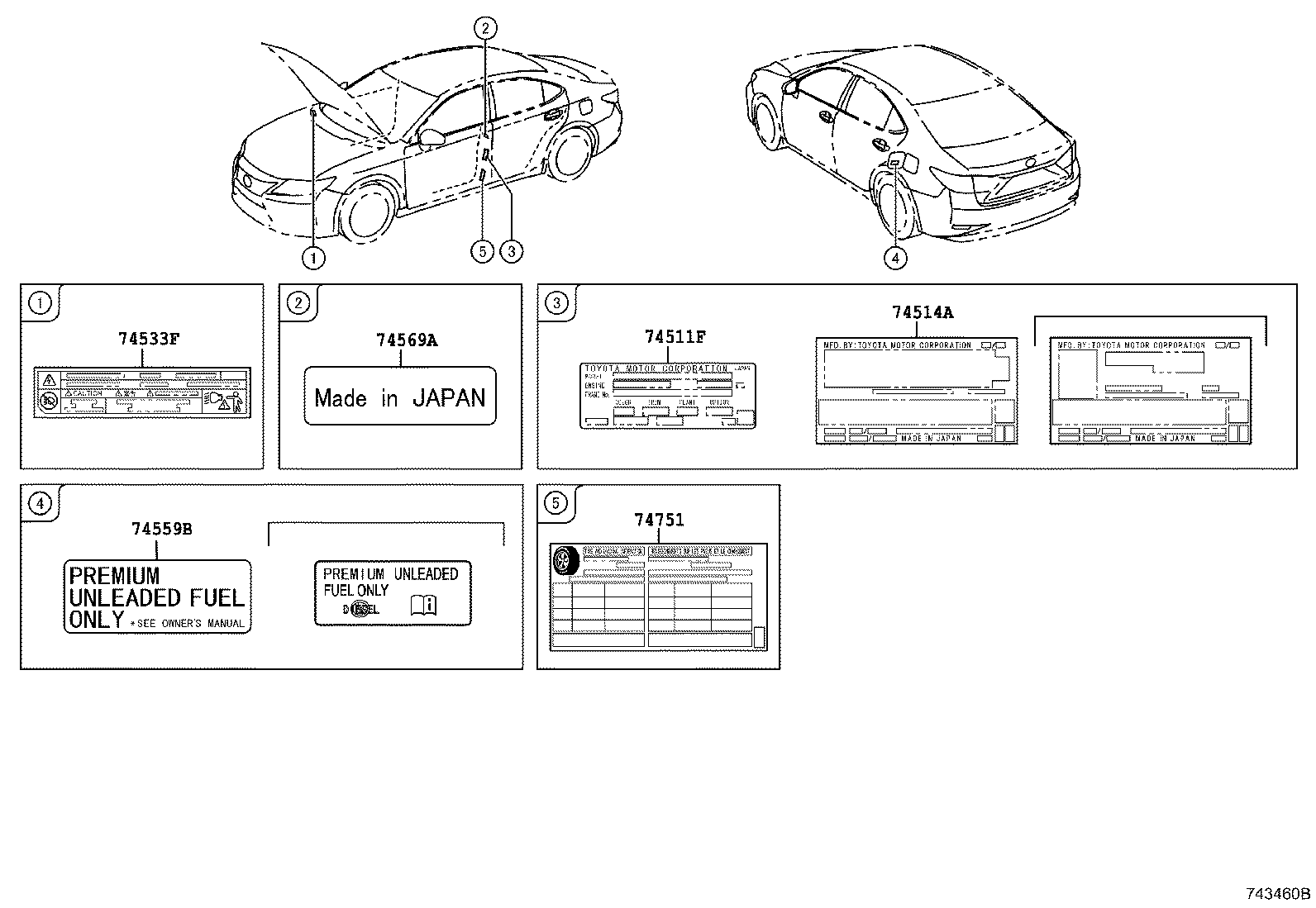

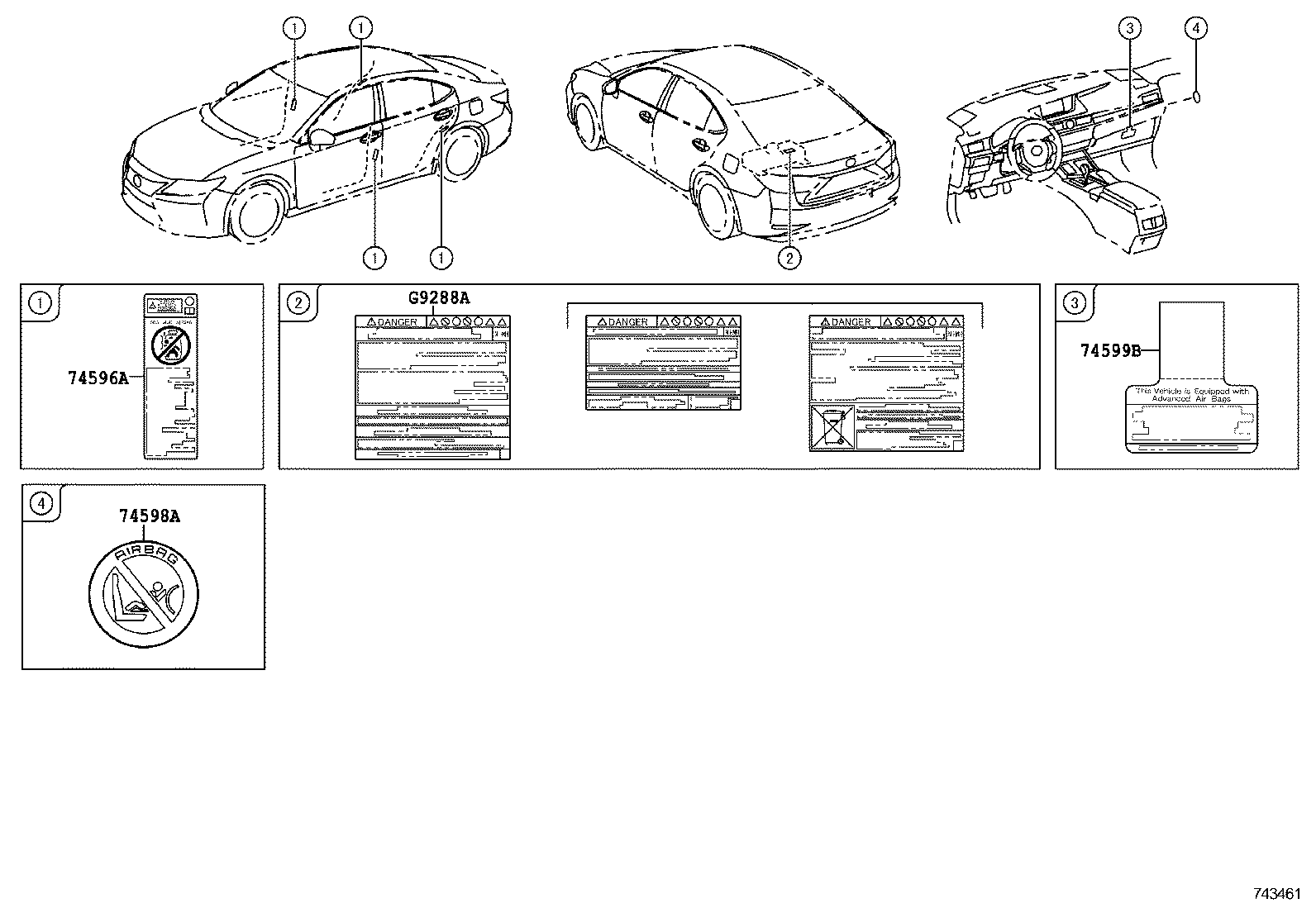

Caution Plate (EXTERIOR & INTERIOR)
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11286B | Plate, Engine Specification |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74514A | Label, Certification Regulation Information |
| 74533E | Label, Headlamp Voltage Caution |
| 74533F | Label, Headlamp Voltage Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74569A | Plate, Vehicle Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
| G9288A | Label, Battery Carging Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
