Toyota Lexus ES350/300H(Jpp
2012-06 → 2018-06 · chassis AVV60,GSV60 · catalogue 282490 · United States
Supported model
Data version 2018-12

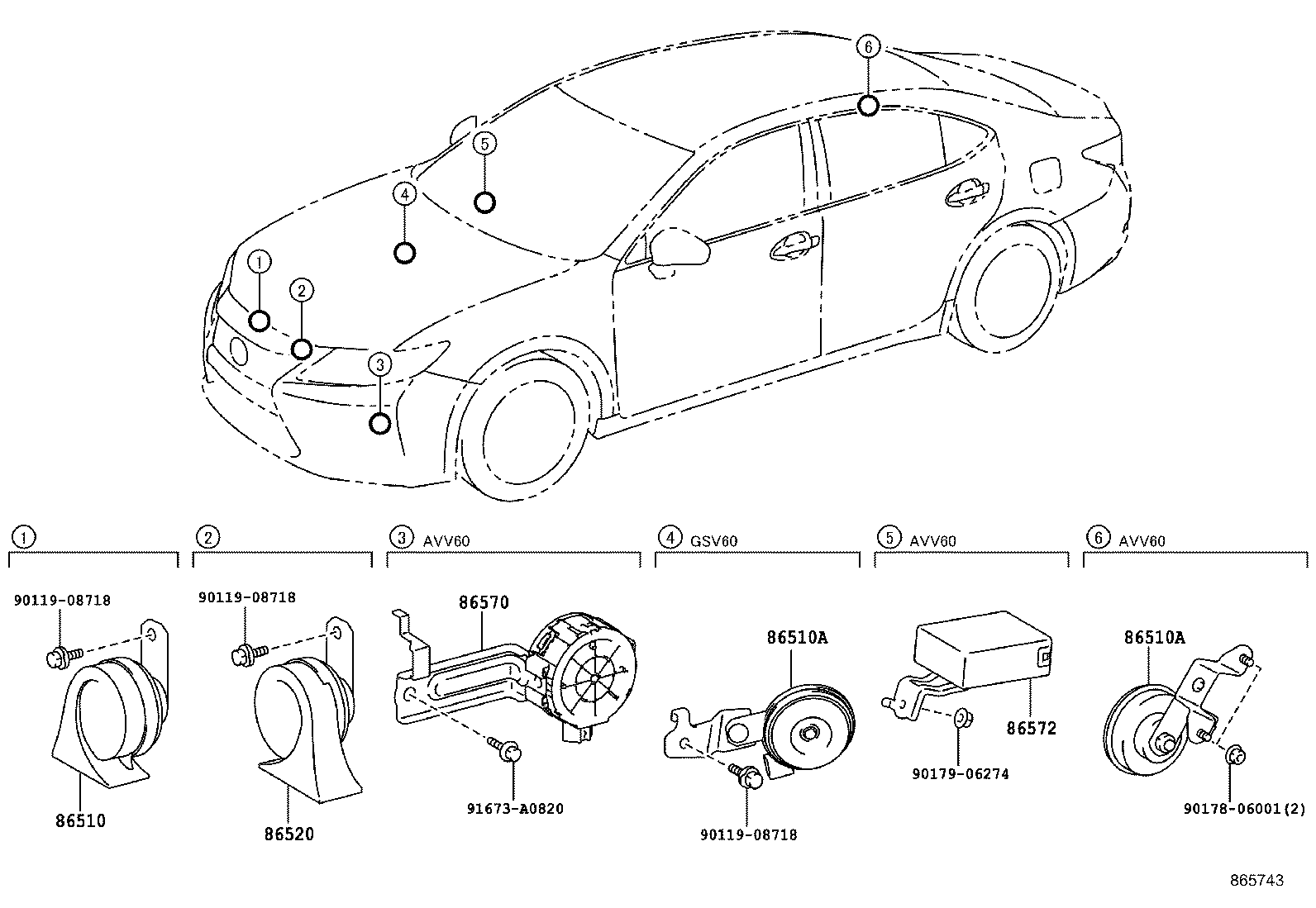

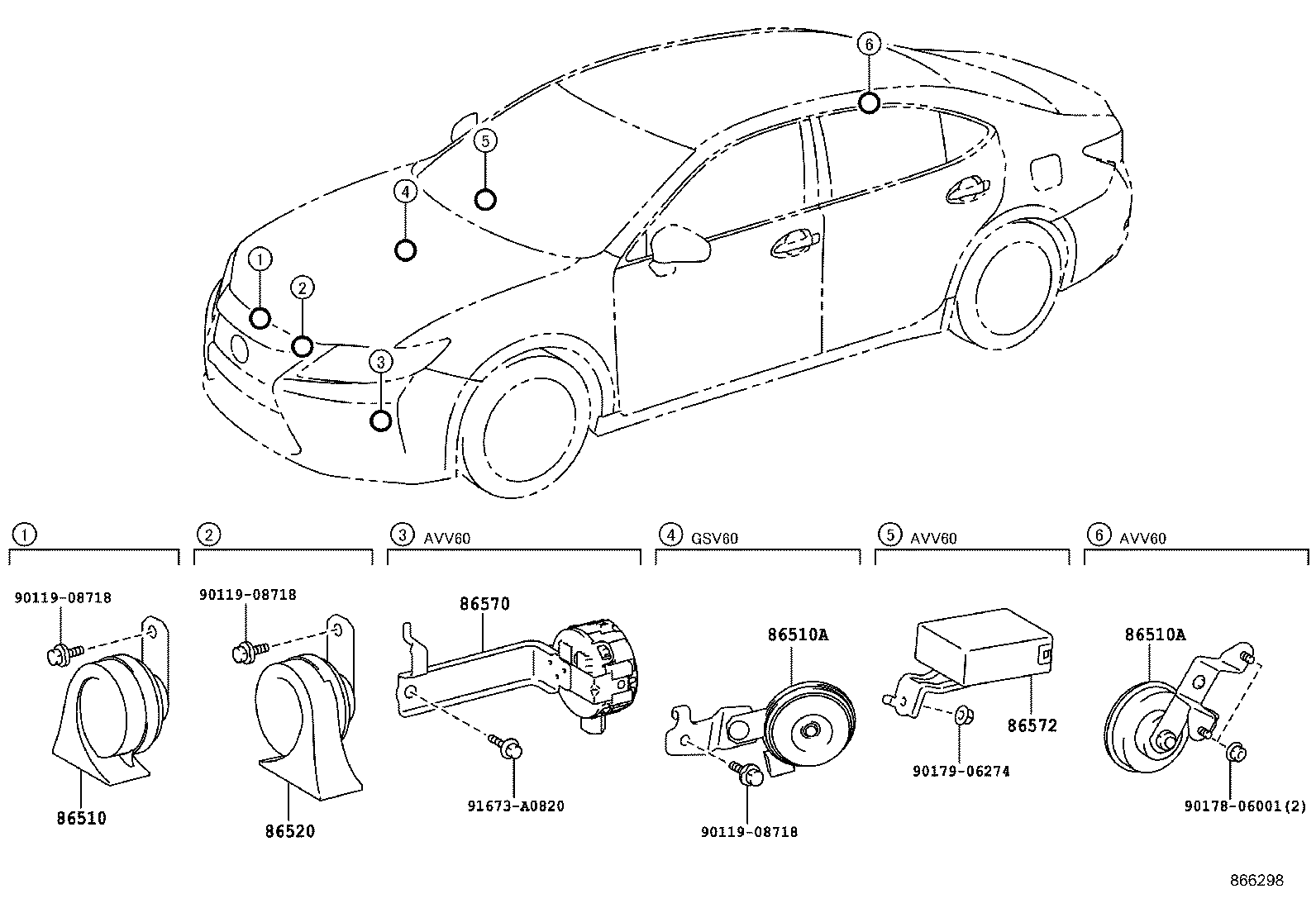

Horn
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86510 | Horn Assy, High Pitched |
| 86510A | Horn Assy, Security |
| 86520 | Horn Assy, Low Pitched |
| 86570 | Speaker Assy, Vehicle Approaching |
| 86572 | Controller, Vehicle Approaching Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
