Toyota Lexus ES350/300H(Jpp

2012-06 → 2018-06 · chassis AVV60,GSV60 · catalogue 282490 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

9 part groups · 2 illustrations

Illustrations

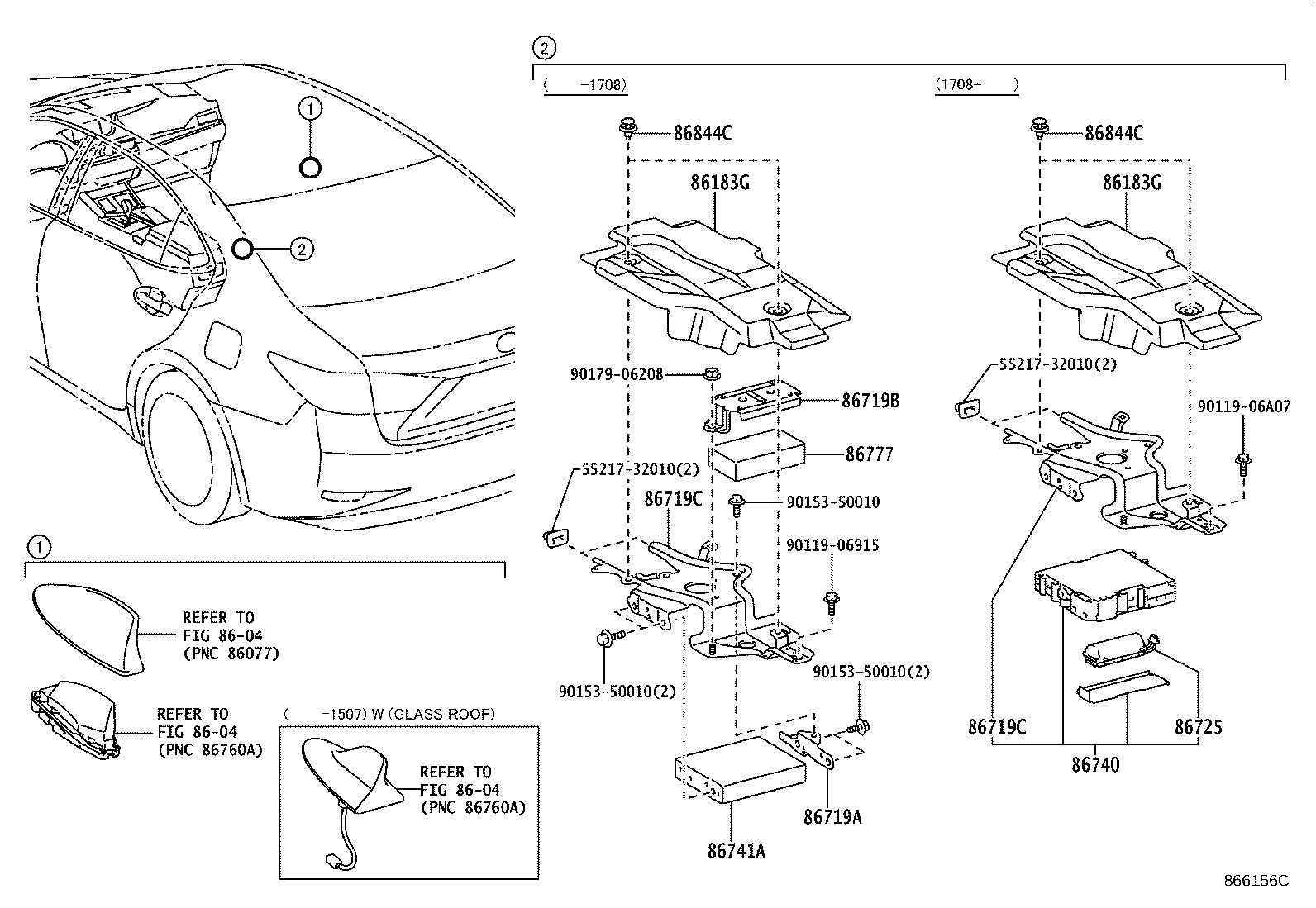

Figure 865109A 865109A 2012-06 → 2014-08 Figure 866156C 866156C 2014-08 → —

Part groups

PNCDescription
86183G Cover, Audio Amplifier
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86719C Bracket, Telephone NO.3
86725 Battery, Mobilephone
86740 Transceiver Assy, Telephone
86741A Transceiver, Telematics
86777 Battery, Mayday
86844C Retainer, Computer Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
