Toyota Lexus ES350/300H(Jpp

2012-06 → 2018-06 · chassis AVV60,GSV60 · catalogue 282490 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

11 part groups · 3 illustrations

Illustrations

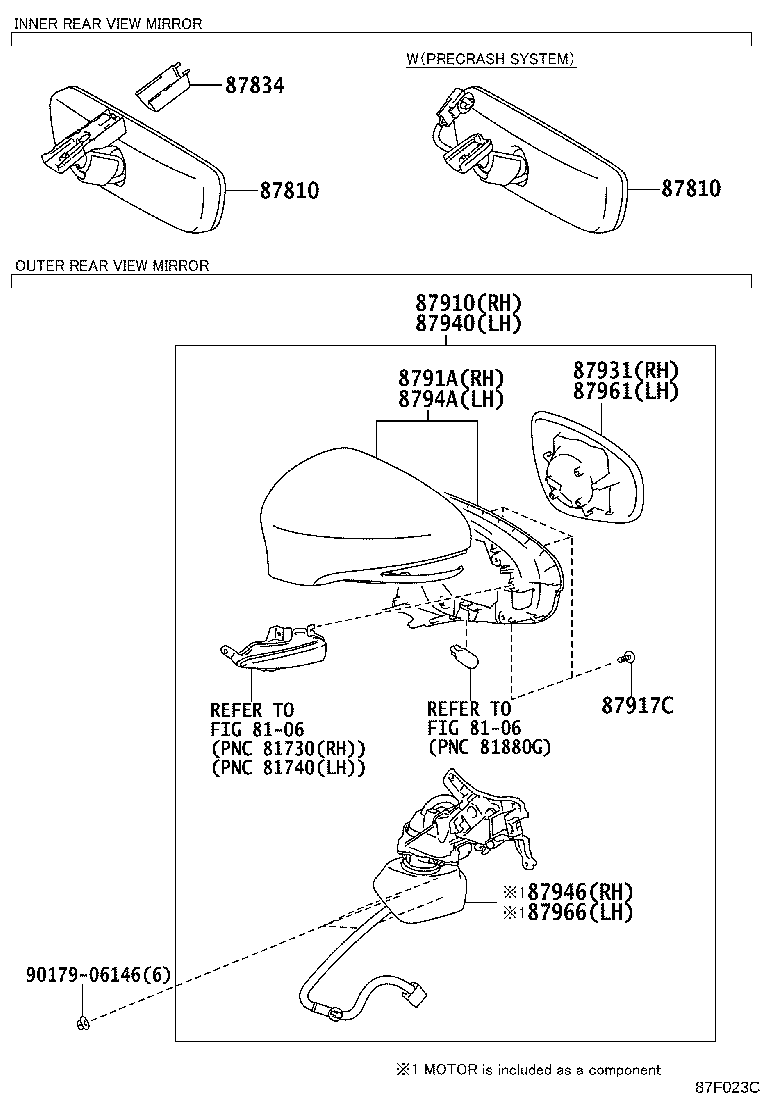

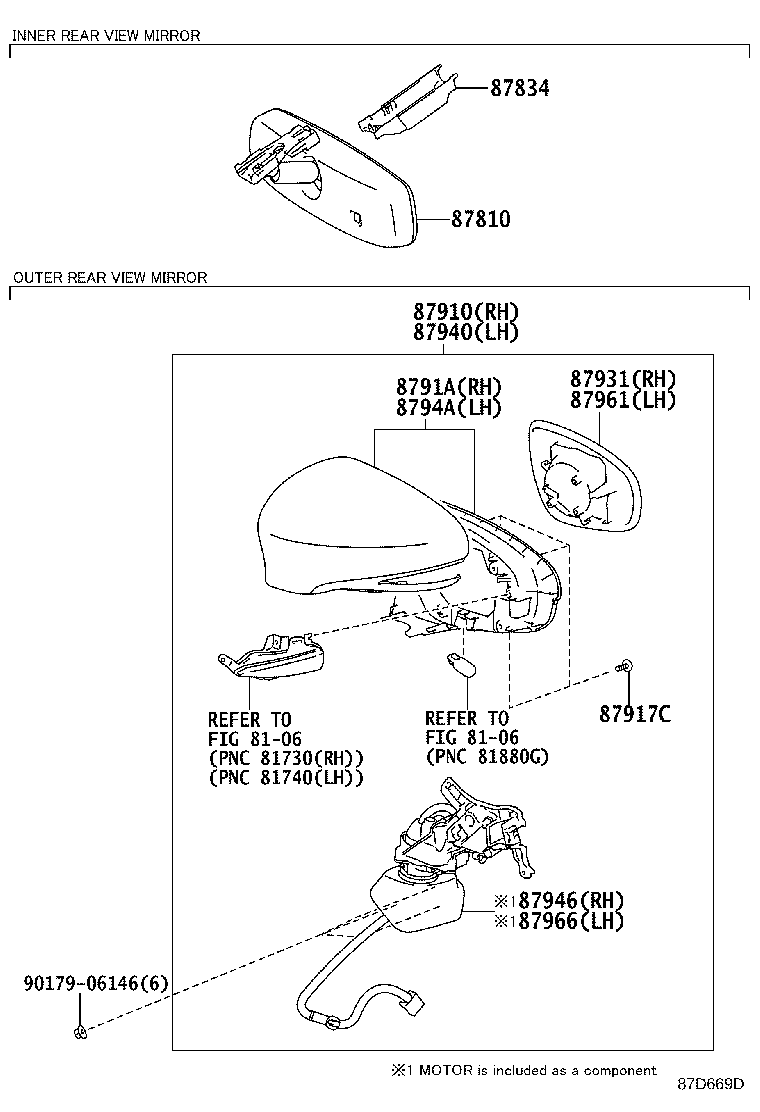

Figure 87D015G 87D015G 2012-06 → 2013-06 Figure 87D669D 87D669D 2013-06 → 2015-07 Figure 87F023C 87F023C 2015-07 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87910 Mirror Assy, Outer Rear View, RH
87917C Screw, Outer Mirror
8791A Cover, Outer Mirror, RH NO.2
87931 Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87946 Retractor, Outer Mirror, RH
8794A Cover, Outer Mirror, LH NO.2
87961 Mirror Outer, LH
87966 Retractor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
