Heating & Air Conditioning - Water Piping

5 part groups · 2 illustrations

Illustrations

Figure 87D026A

87D026A 2012-06 → —

Figure 87F060A

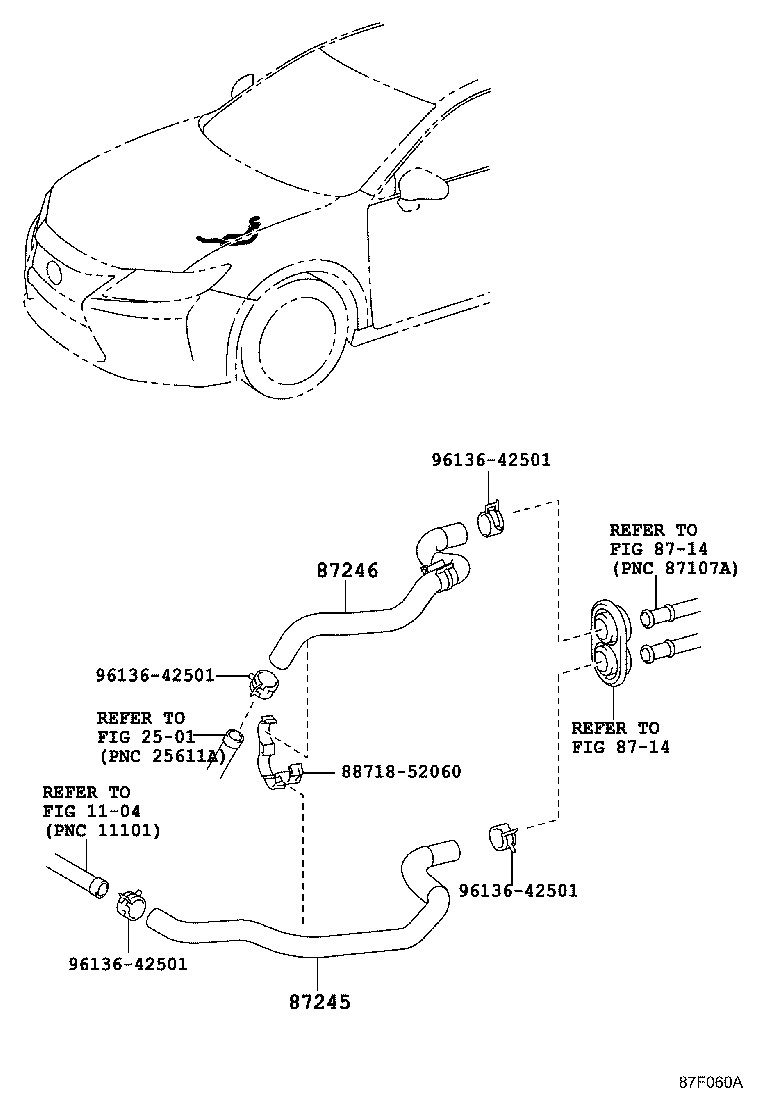

87F060A 2012-06 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248X	Pipe, Heater Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
