Toyota Lexus ES350/300H(Jpp

2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 2 illustrations

Illustrations

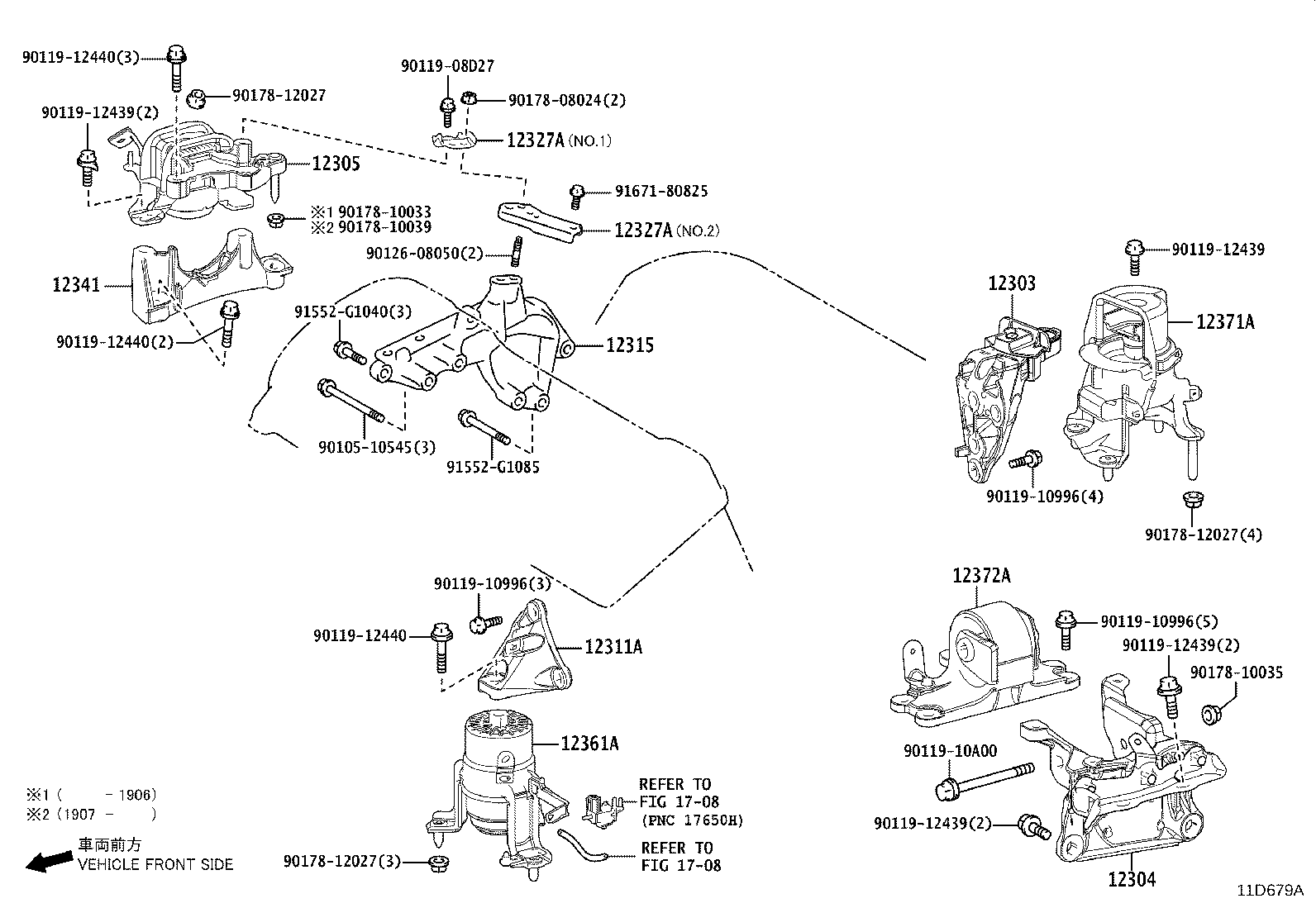

Figure 11D803E 11D803E 2018-07 → — Figure 11D679A 11D679A 2018-06 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12303 Bracket Sub-assy, Engine Mounting, Rear
12304 Bracket Sub-assy, Engine Mounting, LH
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12327A Stay, Engine Mounting, NO.2 RH
12341 Spacer, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
23825A Guard, Fuel Delivery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
