Toyota Lexus ES350/300H(Jpp

2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

16 part groups · 3 illustrations

Illustrations

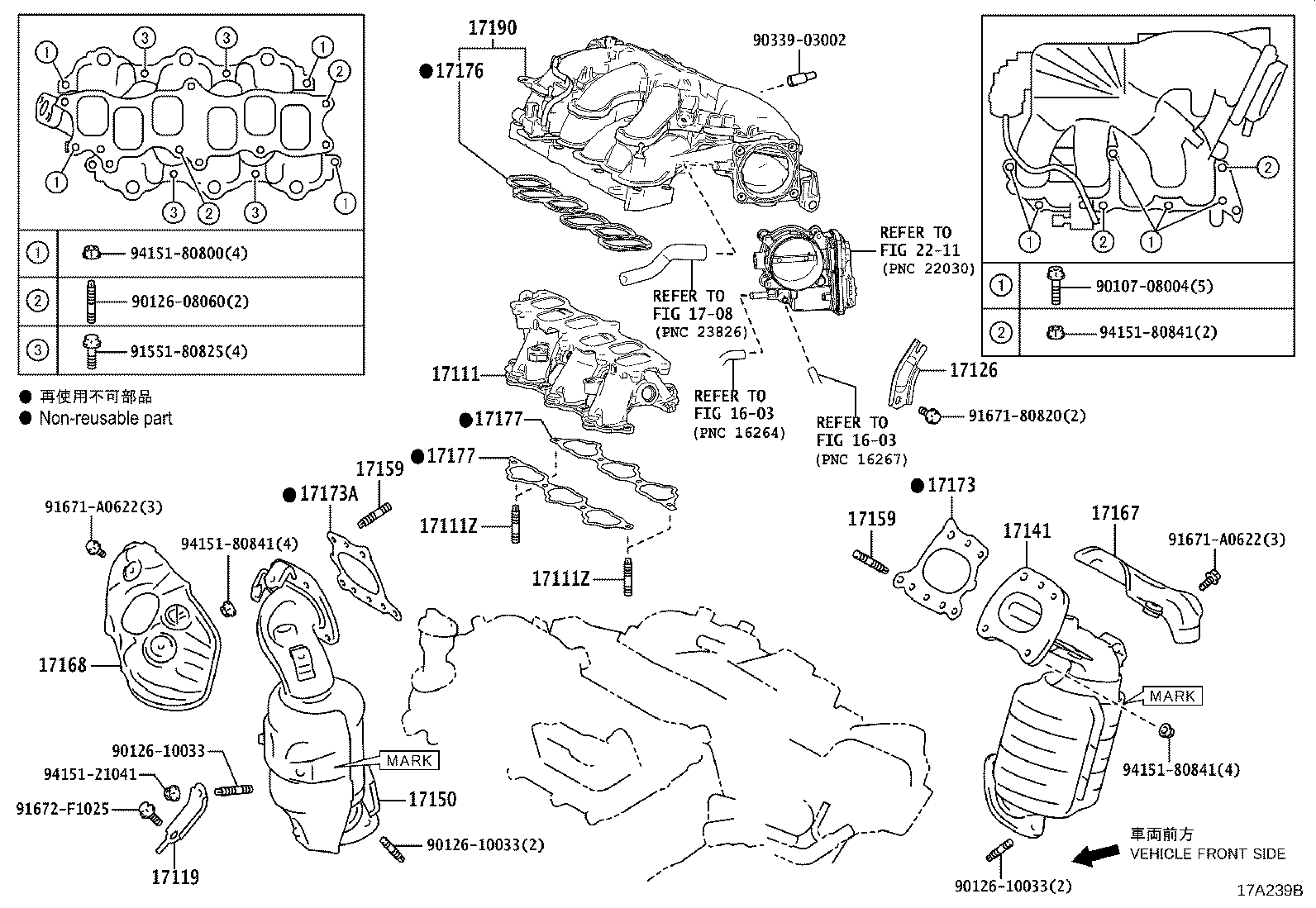

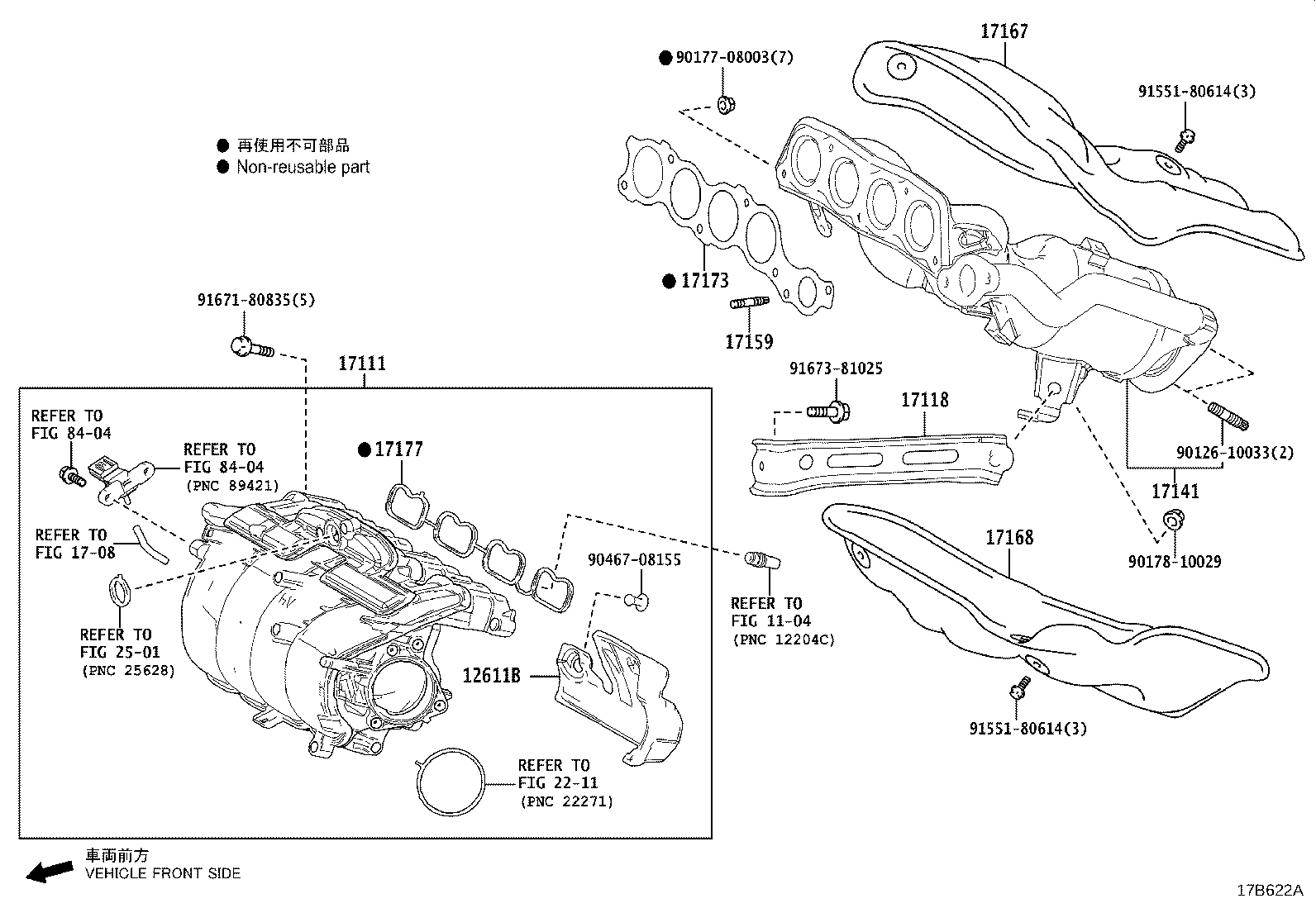

Figure 17B357A 17B357A 2018-07 → 2020-09 Figure 17B622A 17B622A 2020-09 → — Figure 17A239B 17A239B 2018-06 → —

Part groups

PNCDescription
12611B Cover, Engine, NO.1
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17126 Stay, Surge Tank, NO.2
17141 Manifold, Exhaust
17150 Manifold Assy, Exhaust, LH
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17190 Tank Assy, Intake Air Surge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
