Toyota Lexus ES350/300H(Jpp
2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States
Supported model
Data version 2021-08

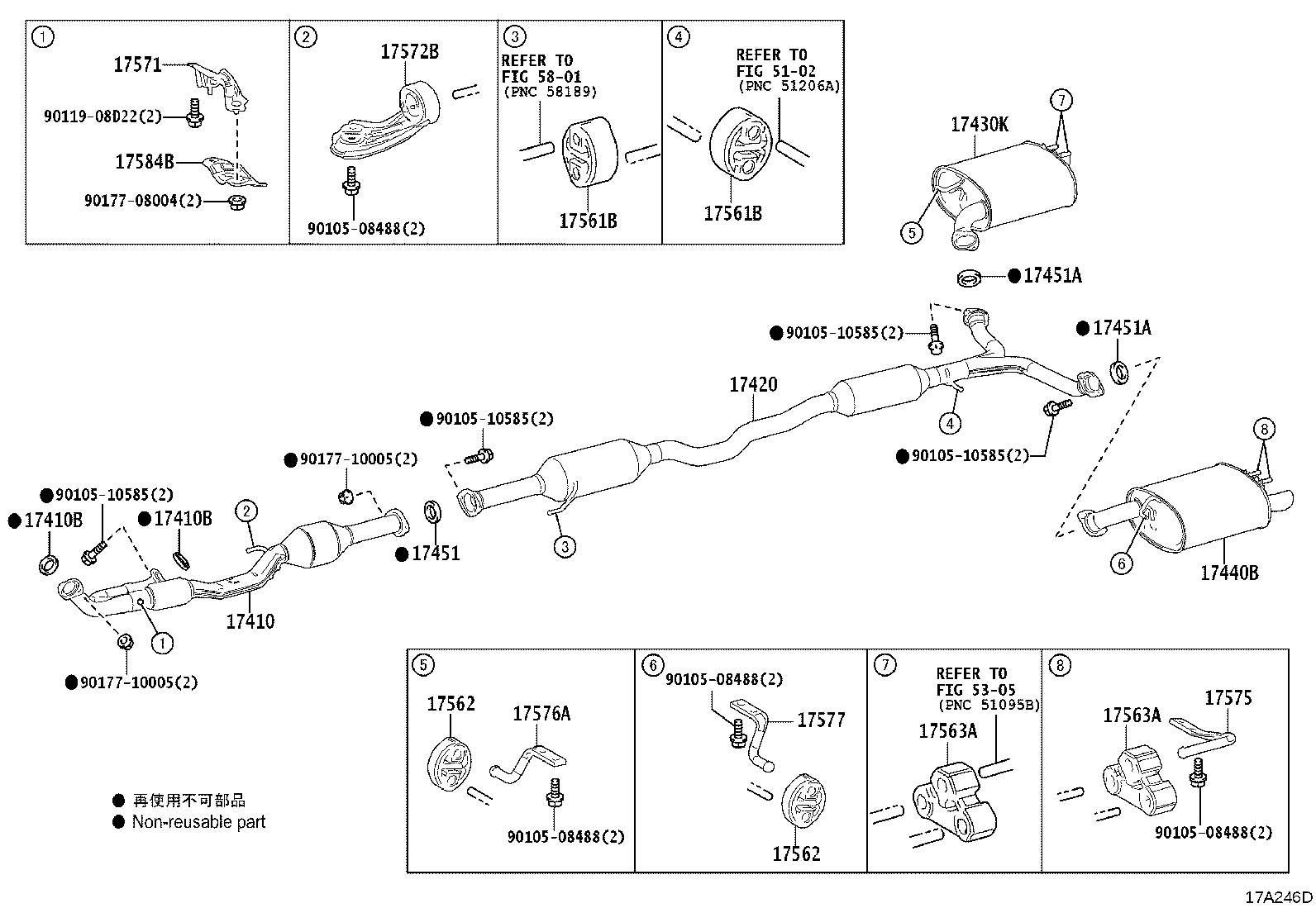

Exhaust Pipe
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430K | Pipe Assy, Exhaust Tail, RH |
| 17440B | Pipe Assy, Exhaust Tail, LH |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17576A | Bracket, Exhaust Pipe Support, NO.6 |
| 17577 | Bracket, Exhaust Pipe Support, NO.7 |
| 17584B | Bracket, Exhaust Pipe NO.1 Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
