Toyota Lexus ES350/300H(Jpp
2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States
Supported model
Data version 2021-08

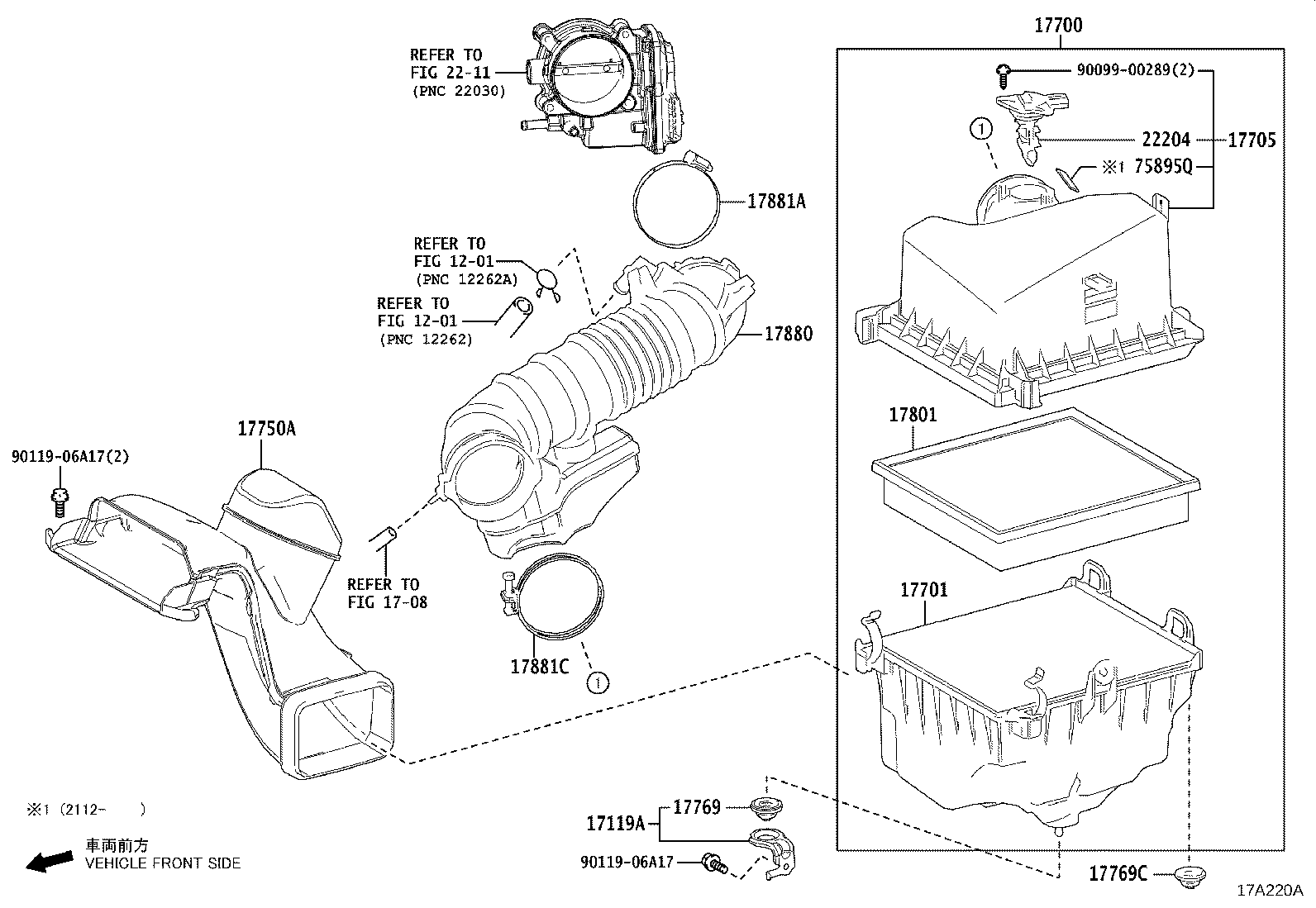

Air Cleaner
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17119A | Bracket, Air Cleaner |
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17750A | Inlet Assy, Air Cleaner |
| 17765 | Stay, Air Cleaner, NO.1 |
| 17769 | Support, Air Cleaner |
| 17769C | Support, Air Cleaner, NO.1 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17880 | Hose Assy, Air Cleaner |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17881C | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 75895Q | Tape, Moulding, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
