Toyota Lexus ES350/300H(Jpp
2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States
Supported model
Data version 2021-08

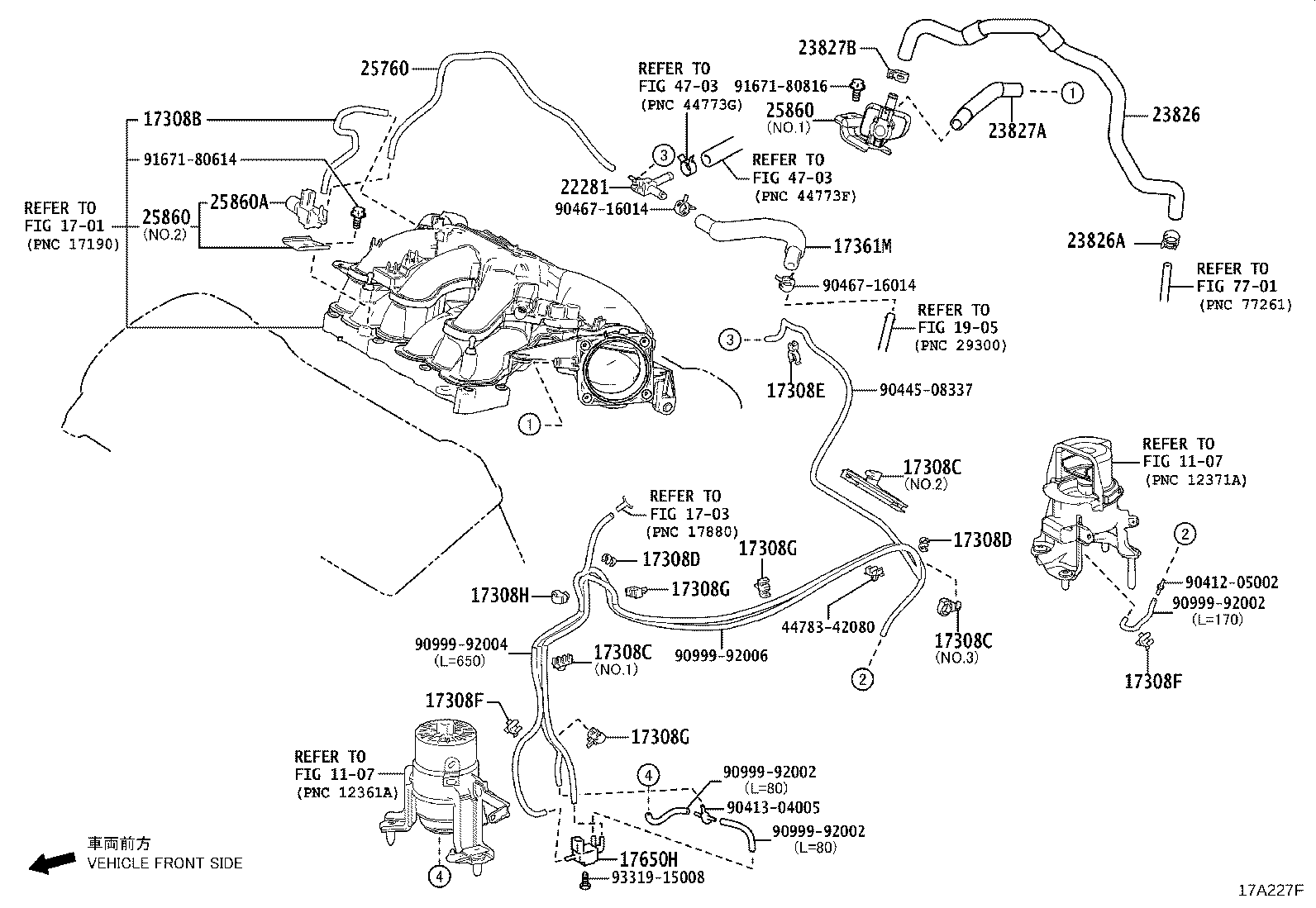

Vacuum Piping
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17308C | Clamp(FOR VACUUM HOSE) |
| 17308D | Clamp, NO.2(FOR VACUUM HOSE) |
| 17308E | Clamp, NO.3(FOR VACUUM HOSE) |
| 17308F | Clamp, NO.4(FOR VACUUM HOSE) |
| 17308G | Clamp, NO.5(FOR VACUUM HOSE) |
| 17308H | Clamp, NO.6(FOR VACUUM HOSE) |
| 17361M | Tube, Air |
| 17650H | Valve, Vacuum Switching |
| 22281 | Way, Air Delivery |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860A | Valve, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
