Toyota Lexus ES350/300H(Jpp

2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

2 part groups · 2 illustrations

Illustrations

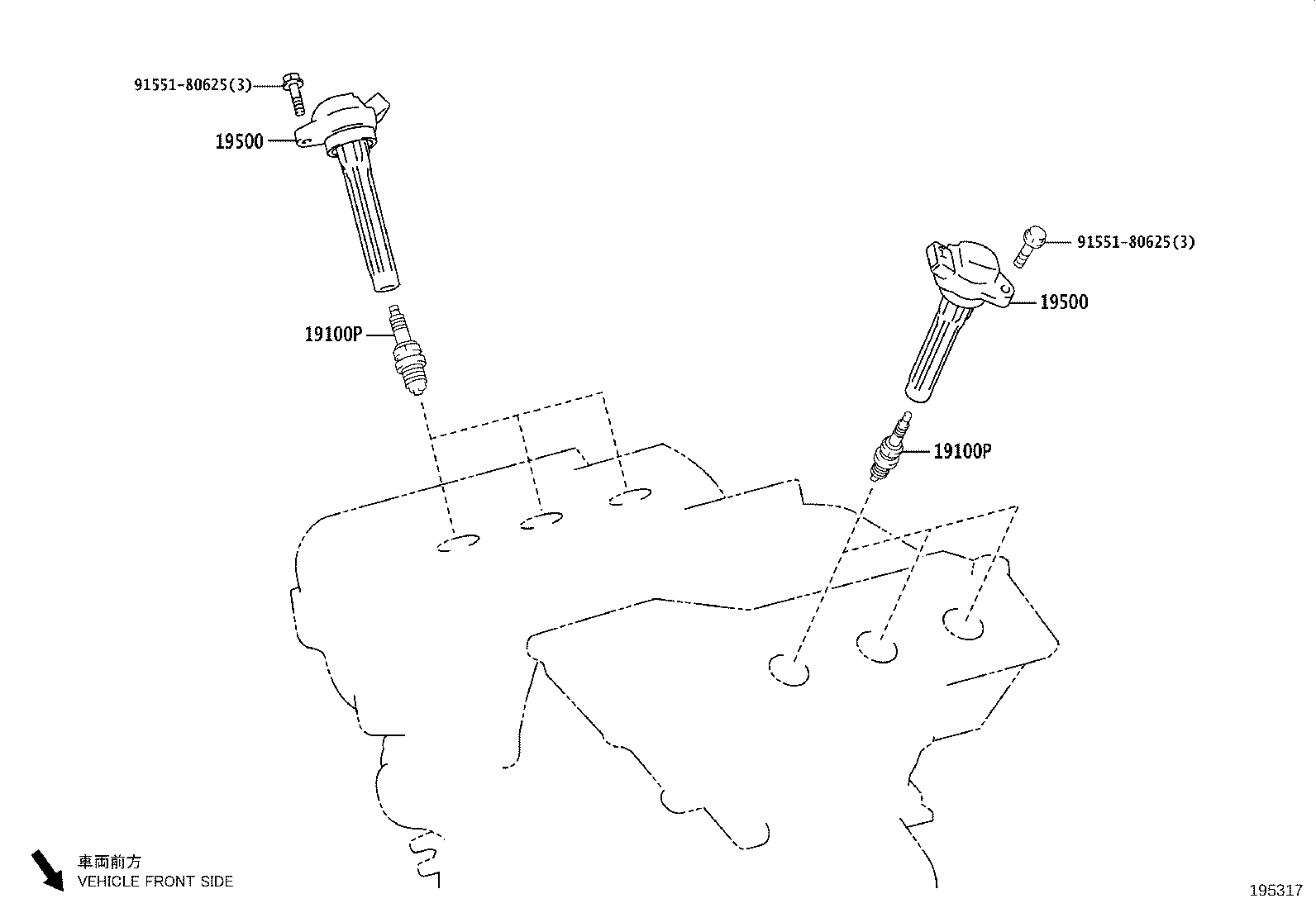

Figure 195341 195341 2018-07 → — Figure 195317 195317 2018-06 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
