Toyota Lexus ES350/300H(Jpp

2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

5 part groups · 2 illustrations

Illustrations

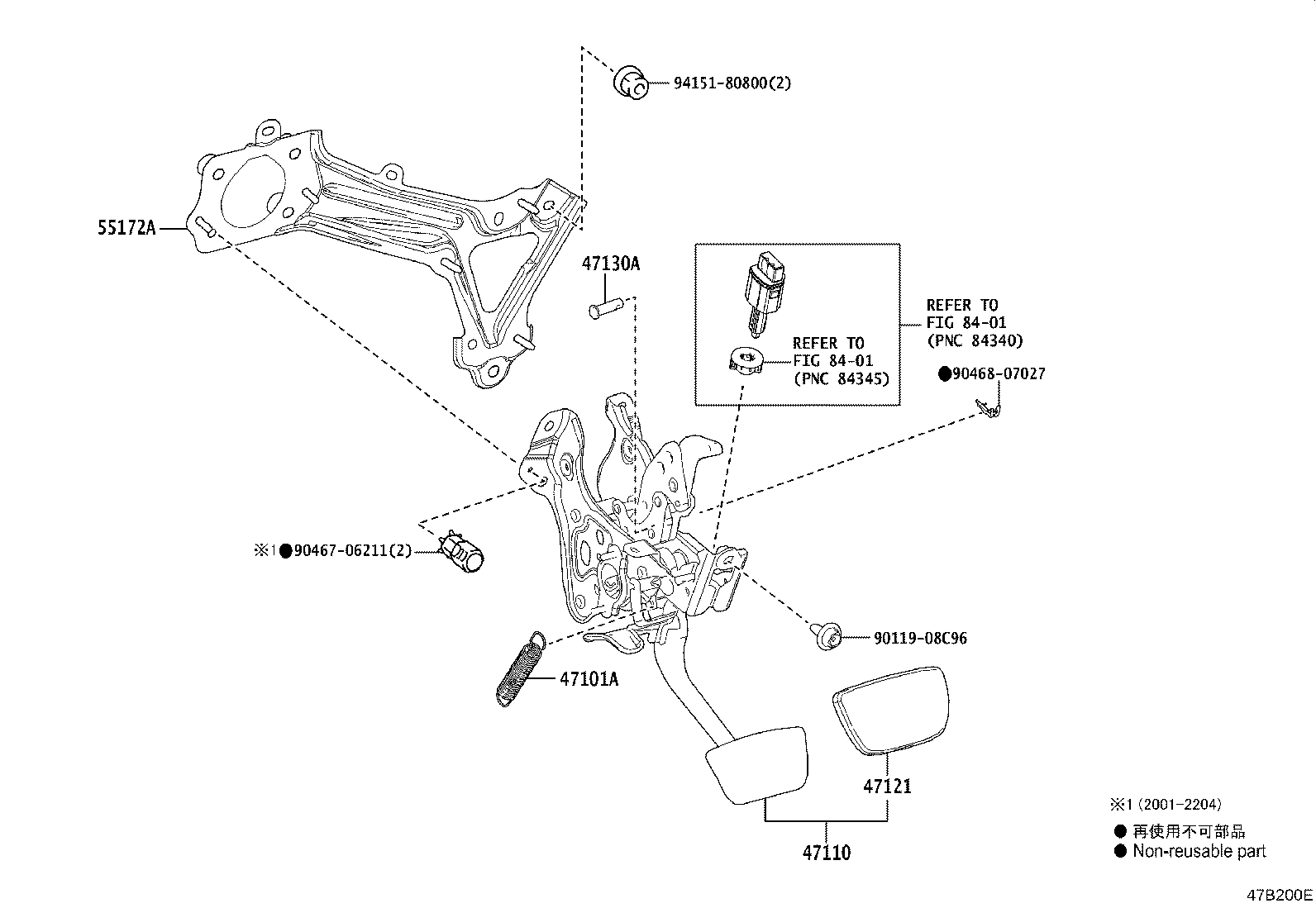

Figure 47B199E 47B199E 2018-06 → — Figure 47B200E 47B200E 2018-07 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47130A Pin, Brake Pedal Link
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
