Toyota Lexus ES350/300H(Jpp

2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

15 part groups · 2 illustrations

Illustrations

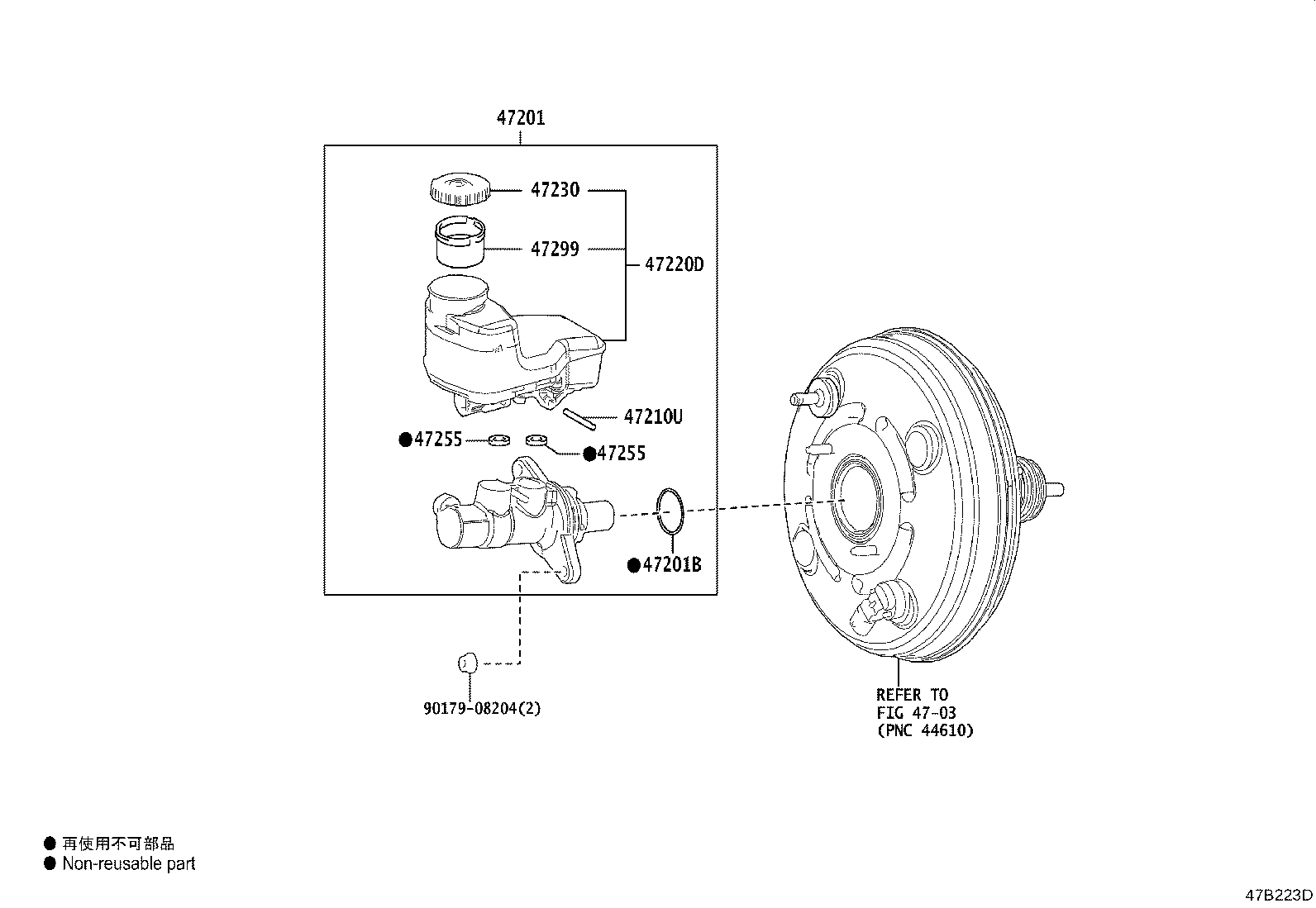

Figure 47B224C 47B224C 2018-07 → — Figure 47B223D 47B223D 2018-06 → —

Part groups

PNCDescription
44551C Tube, Brake Actuator, NO.1
44571A Hose, Brake Actuator, NO.1
44572C Hose, Brake Actuator, NO.2
44785C Gasket, Brake Booster
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47210L Brake Booster Assy, W/Master Cylinder
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47235J Clip(FOR RESERVOIR HOSE NO.2)
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47299 Strainer, Brake Master Cylinder Reservoir
47997A Label, Accumulator Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
