Toyota Lexus ES350/300H(Jpp

2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

20 part groups · 2 illustrations

Illustrations

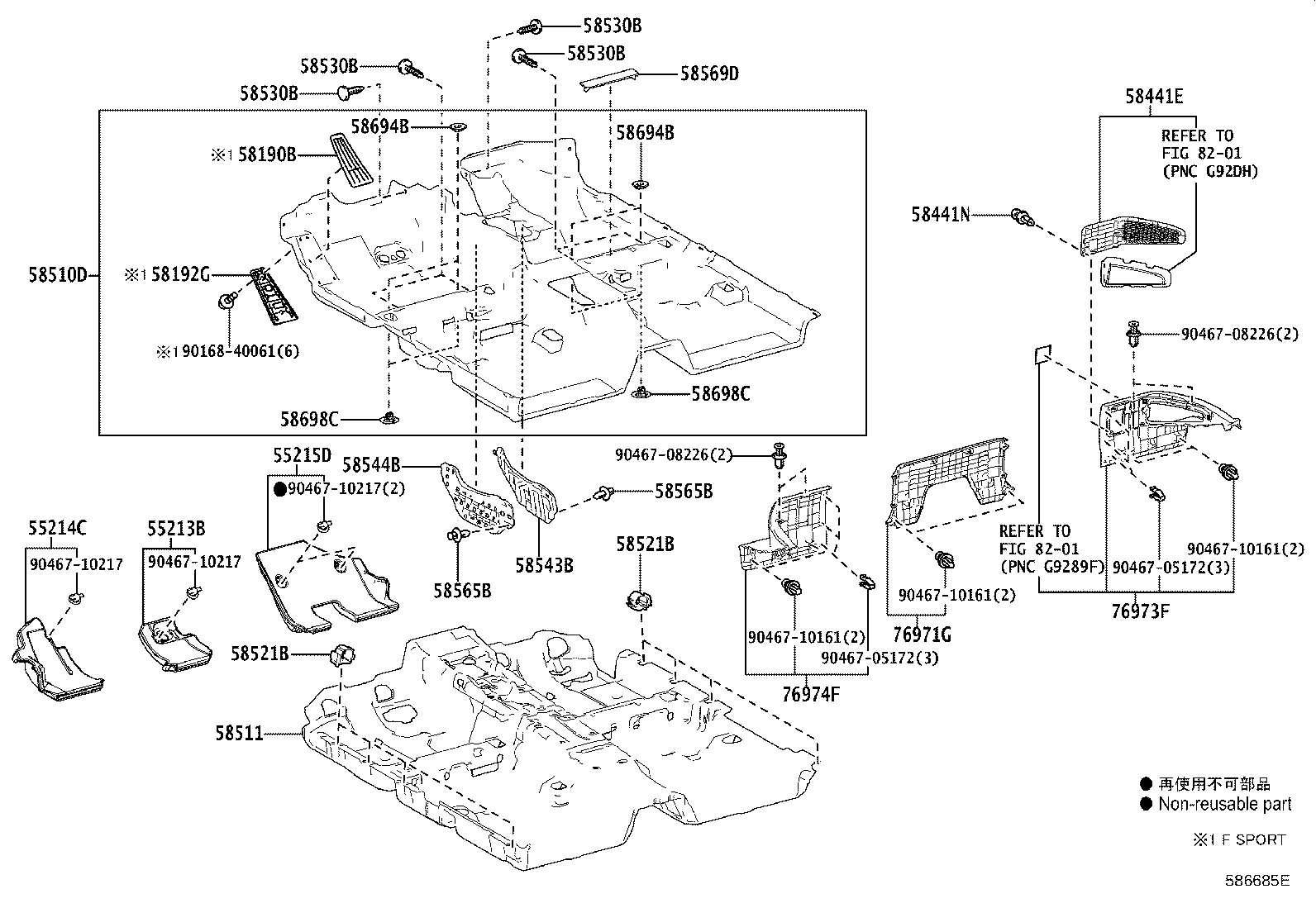

Figure 586624H 586624H 2018-06 → — Figure 586685E 586685E 2018-07 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58190B Rest Assy, Front Floor Foot
58192G Panel, Footrest, NO.2
58441E Cover, Battery Service Hole
58441N Clip(FOR BATTERY SERVICE HOLE COVER)
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58543B Bracket, Floor Carpet, RH
58544B Bracket, Floor Carpet, LH
58565B Clip
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
76971G Cover, Rear Under
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
