Toyota Lexus ES350/300H(Jpp

2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States

Supported model Data version 2021-08

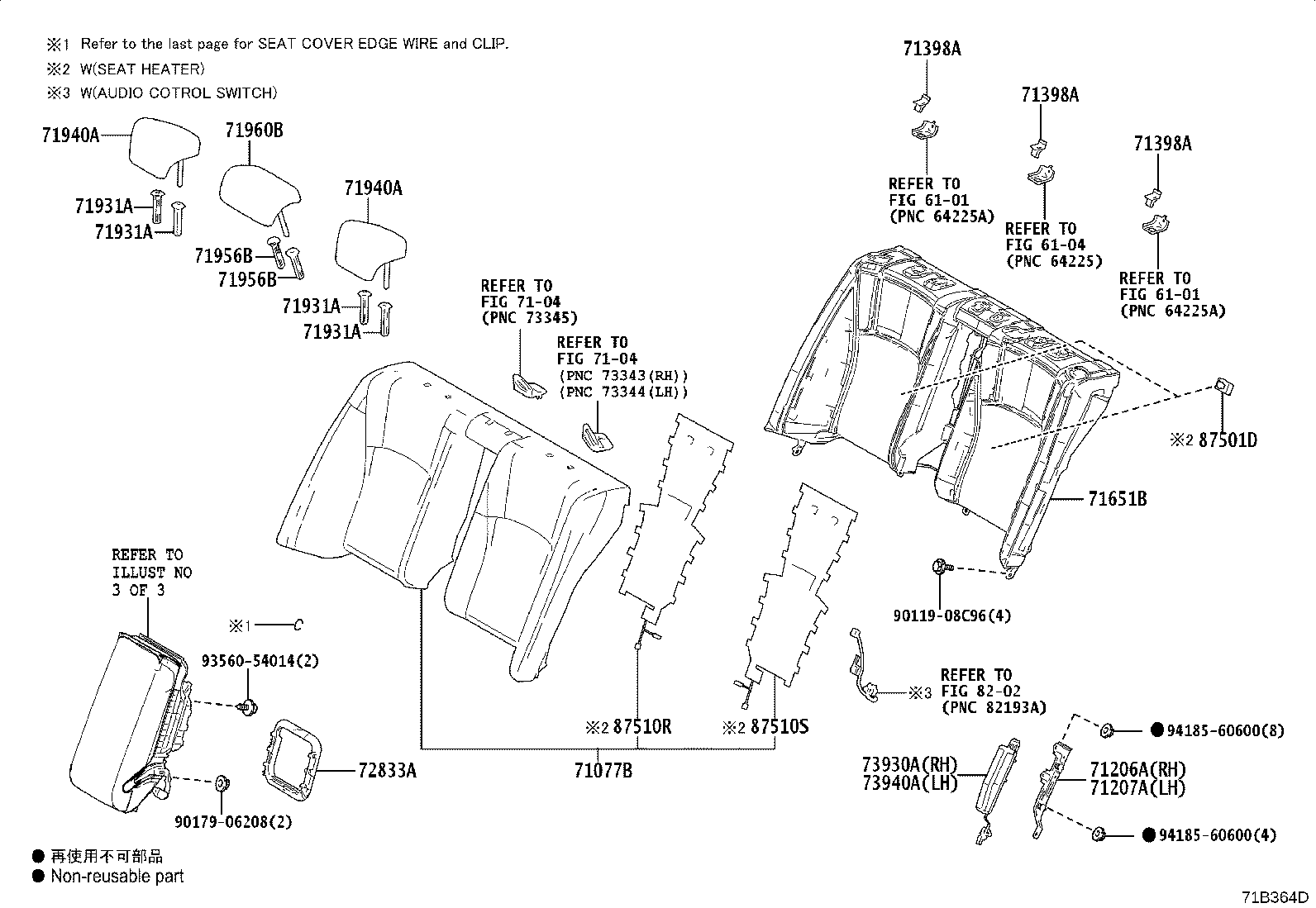

Rear Seat & Seat Track

36 part groups · 4 illustrations

PNC	Description
71033	Leg Sub-assy, Rear Seat Cushion
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71206A	Bracket Sub-assy, Rear Seat Stopper, RH
71207A	Bracket Sub-assy, Rear Seat Stopper, LH
71398A	Holder, Rear Seatback
71503A	Pad Sub-assy, Rear Seat Cushion

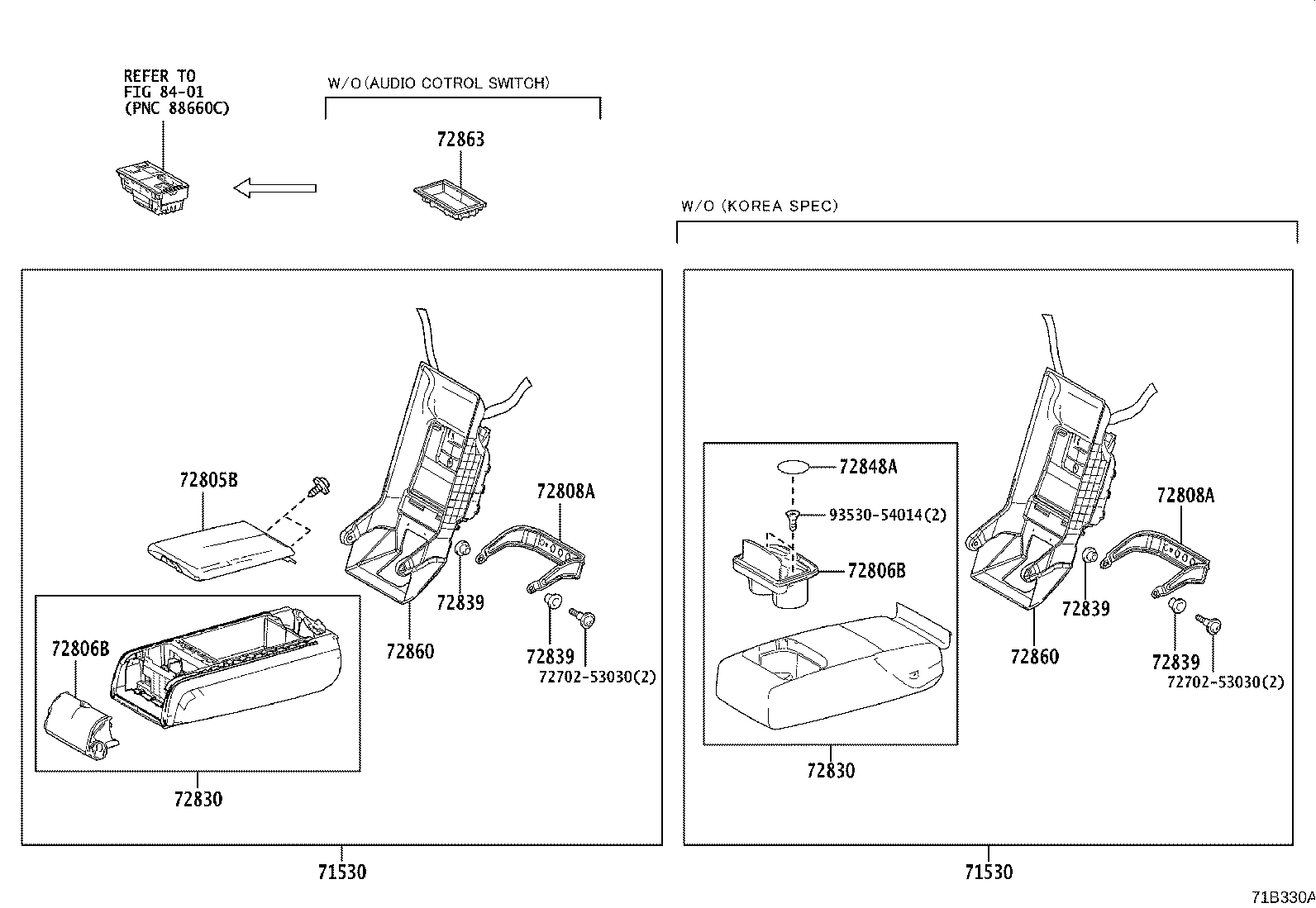

71530	Armrest Assy, Rear Seatback, Center
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71956B	Support, Rear Seat Headrest
71960B	Headrest Assy, Rear Seat, Center
72693	Hook, Rear Seat Cushion Lock
72805B	Door Sub-assy, Rear Seat Center Armrest
72806B	Holder Sub-assy, Rear Seat Center Armrest Cup
72808A	Bracket Sub-assy, Seat Center Armrest
72830	Armrest Assy, Rear Seat, Center
72833A	Plate, Seat Center Armrest, Inner
72839	Shim, Rear Seat Armrest Hinge
72848A	Cap, Seat Armrest, NO.1
72860	Box Assy, Rear Seat Center Armrest
72863	Box, Rear Seat Center Armrest
73705	Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706	Bracket Sub-assy, Child Restraint Seat Anchor, LH
73717D	Cover, Child Restraint Seat Tether Anchor
73731	Cover, Child Restraint Seat
73733	Cover, Child Restraint Seat Base
73930A	Airbag Assy, Rear Seat, RH
73940A	Airbag Assy, Rear Seat, LH
79977	Felt, Seatback
87501D	Control Sub-assy, Seat Heater
87510P	Heater Assy, Seat
87510Q	Heater Assy, Seat
87510R	Heater Assy, Seat
87510S	Heater Assy, Seat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
